Hussmann RL - Install RLNI Center Trim and Right Side Glass End; Install Center End Trim; Attach Right Side Assembly

Reach-in Rectangular Solid
and Contour Glass Ends
P/N 0387152_H
13
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
RLNI ONLY
6
Position the
Center End Trim — 9 flush
against the installed side and
fasten with Screws — 10 as
shown in Figure 8.
7
Once the trim is installed,
attach the Right Side of the
Glass End Assembly — 5
using Cap Screw — 6.
As the end is being posi-
tioned, route the wiring
through the opening into the
right-hand
wireway.
After the end assembly has
been tightened, insert Plug
— 7 and Button — 8 as
shown in Figure 9.

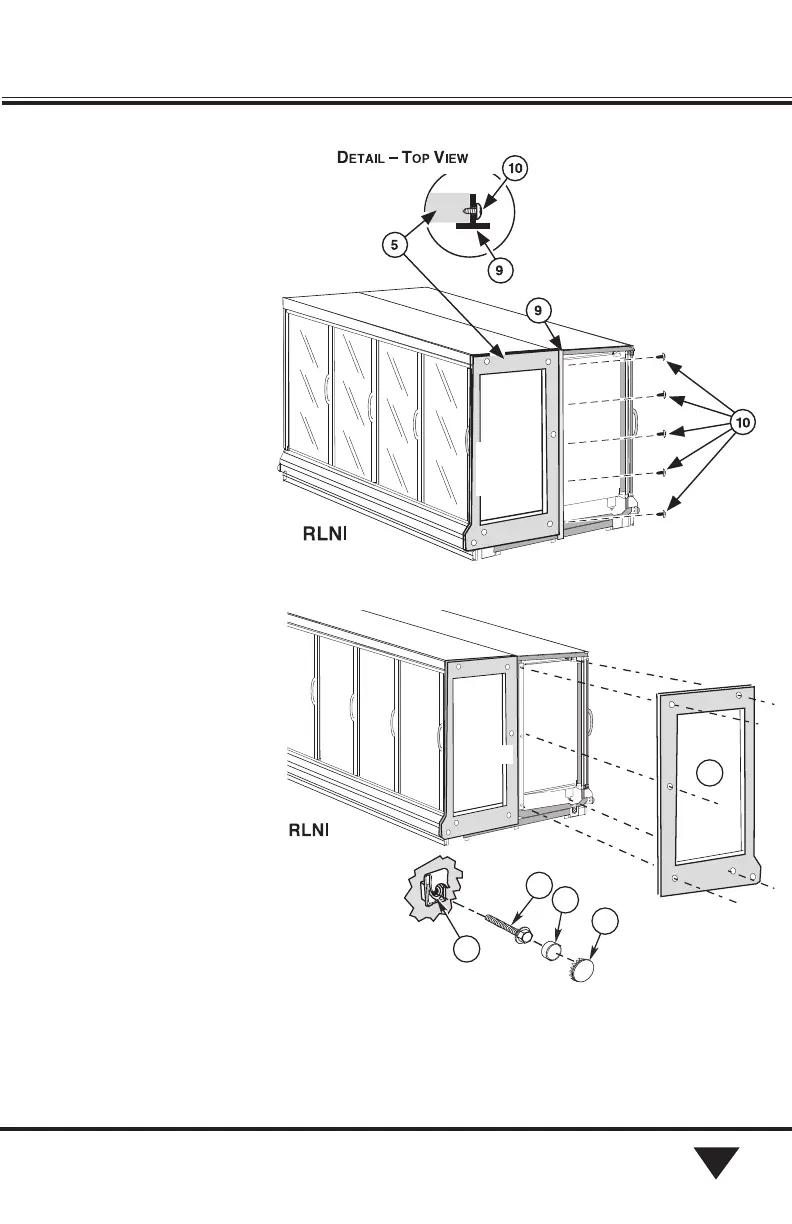

Figure 9. Install Right Side of
Glass End Assembly on Island
Figure 8. Install Center End Trim on RLNI Glass End
8
7
6
5
1
Right
Side
Left
Side
Left Side
