HUST CNC H6D-T Manual
2 - 16

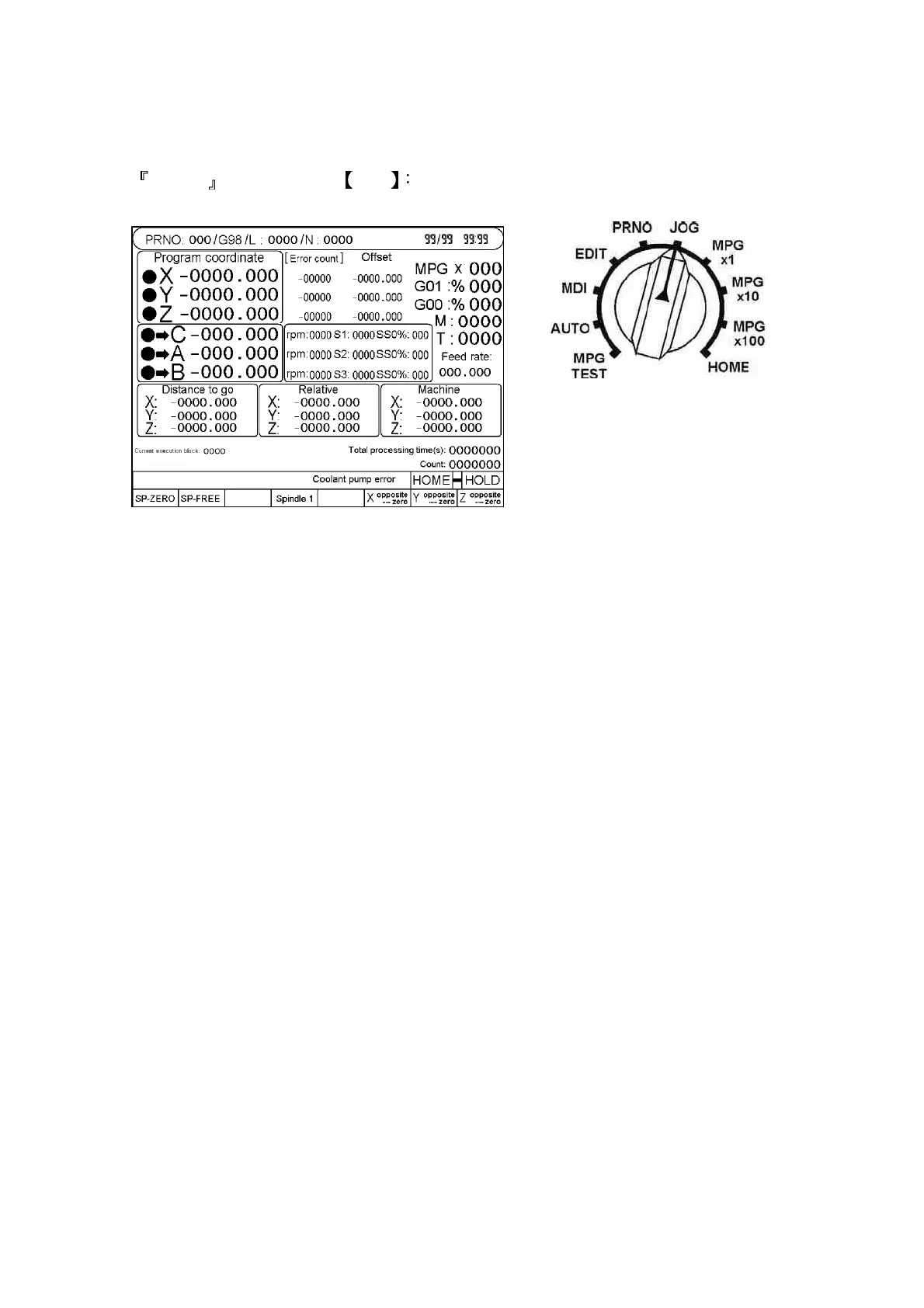

* Jog Mode Screen
MODE switch turn to JOG
Fig.2-17
1. Press “Jog” key, and the corresponding axis will start moving:
2. Hold “Fast” key, the axis will move at maximum speed.
(If “Fast” key is not pressed, the axis displacement speed will be set in the
Parameter page).
3. For document transmission, please refer to Appendix B.
4. Lubricant: Under “Manual” screen, press “F2” Key to select or cancel Lube”
function. When “Lube” indicates reverse white, it means such function is active;
otherwise, it will be cancelled. (The parameter item can be used to adjust the
continuous automatic lubrication time and the time interval of every two
lubrication cycles.)
5. Release Spindle: Under Manual screen, press the “F3” Key to select or cancel
Spindle release function. When “Release Spindle” indicates reverse white, it
means such function is active; otherwise, it will be cancelled. Upon starting the
“Release Spindle”, the Spindle can be turned by hand manually. (The “Release
Spindle” function shall be effective for the voltage closed circuit spindle or the
pulse type Spindle and the Spindle has returned to the Home Position.)
6. Spindle Positioning: After the Spindle returns to the Home Position, the Spindle
position will be displayed on the manual screen. Press F4” Key “Spindle
Position” (in reverse white), the system will position the Spindle at the angle set
by the user (the parameter can be used to set the positioning angle and rpm).
7. Select Spindle: Under “Manual” screen, press F5” Key to select the active
Spindle. (If the Spindle count is “1”, then it means Spindle #1” is active; if the
Spindle count is 3, press “F5” Key for shifting among Spindle #1, #2 and #3 and
