109627CE_0512 4-13 REV F
NOTE: Adjust the PTO control lever linkage every 100 hours.
1. The PTO control lever must move easily (soft), through
the first 50% of travel. The remaining 50% of control
lever travel must have a resistance (hard).
2. At the point of resistance (50% into the control lever
stroke), attach a pull scale to the PTO control lever. A
reading of 5 kg is correct at the point of resistance (50%
into the control lever stroke). A reading of 12-13 kg is
correct at the full engagement point (the final 50% of
control lever travel). If the control lever stroke is not
correct, or the amount of resistance on the pull scale at
the point of resistance is incorrect, proceed to step 3.
NOTE: The adjustment bolt on the PTO adjustment
linkage uses left-hand threads.
3. Loosen the locknuts on the PTO adjustment linkage.
Figure 4-30
4. Turn the adjustment rod and recheck the resistance on the
pull scale and the control lever stroke. Repeat this step
until the control lever stroke and the pull resistance are
correct.
5. Tighten the locknuts.
General engine maintenance
IMPORTANT: Any maintenance operation that requires the
removal of safety covers must be performed by a trained service
technician.
Detailed instructions and recommendations for break-in and
regular maintenance are specified in the Engine Owner’s
manual. Please refer to this manual for engine servicing,
lubricating oil levels with the proper SAE rating and viscosity
recommendations, bolt torques, etc. The engine warranty is
backed by the manufacturer. Special attention should be paid to
applicable data which will not be duplicated here.
Park brake adjustment
IMPORTANT: Any maintenance operation that requires the
removal of safety covers must be performed by a trained service
technician.
The park brake must be adjusted when there is less than
10mm or more than 19mm of free play in the park brake lever
(Figure 4-31), the park brake is dragging, or the park brake is
not working effectively.
1. Park power unit on level ground, lower the mower deck
or front mount attachment to the ground, turn off power
unit, and remove key. Chock the front drive tires to keep

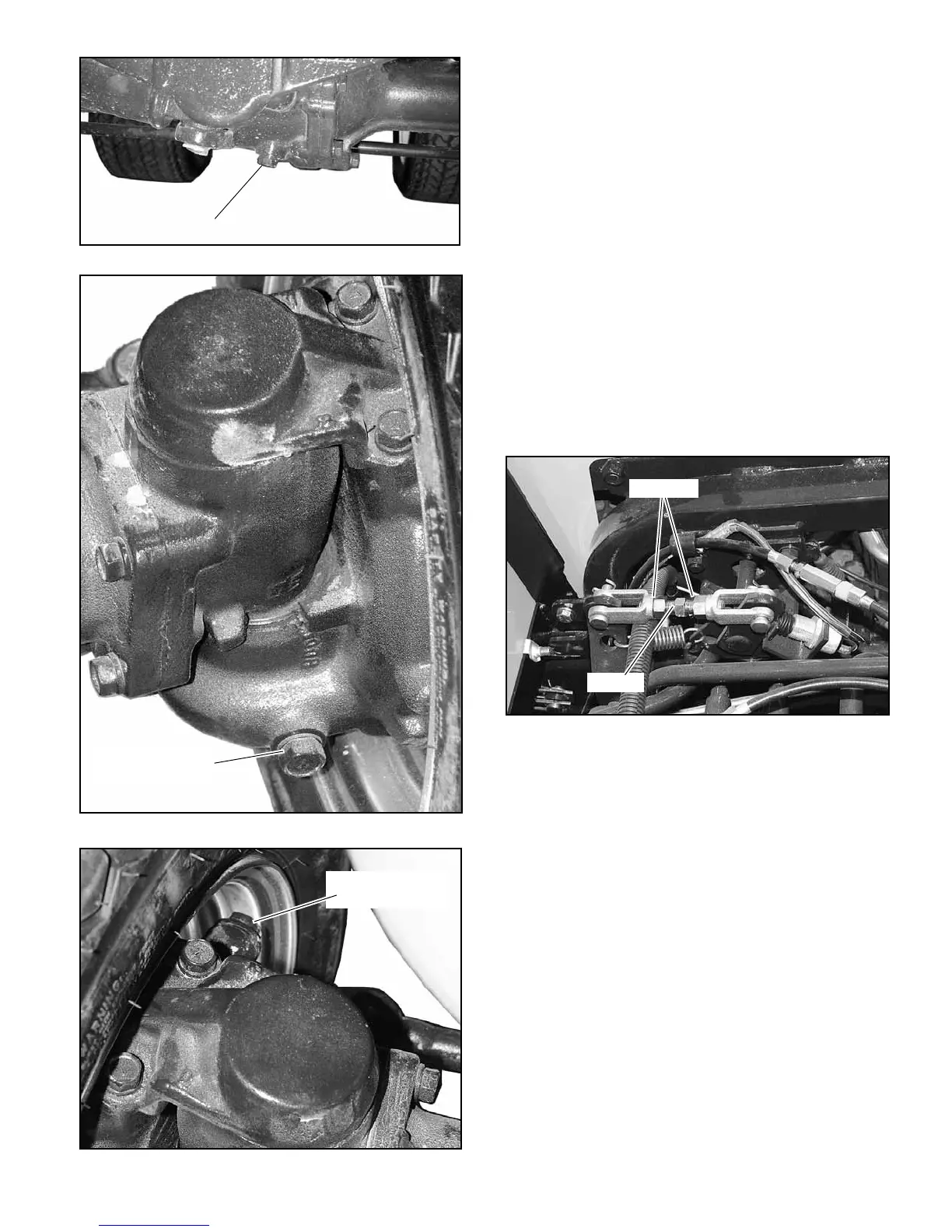

Figure 4-27
Figure 4-28
Figure 4-29
Final reduction
gear case drain plug
Final reduction gear
case fill plug
Figure 4-30
To Next Page
