HUSTLER 3700 - MAINTENANCE LOCATOR CHART

REV F 4-22 109627CE_0512
17
MAINTENANCE LOCATOR CHART
11
1. Engine Oil Fill
2. Engine Air Cleaner
3. Radiator Cap
4. HST Filter
5. Hydraulic Oil Filter
6. Engine Oil Filter & Dipstick
7. Wheels & Tires
8. Fuel Filter
9. Battery
10. Fan Belt
11. Transmission Oil Fill
12. Lift Arm
13. Lift Cylinder
14. Brake Pedal Shaft
15. Power Steering Cylinder
16. Differential Lock Pedal Shaft
17. Rear Axle 4WD Oil Fill/Dipstick
18. Radiator Screen
12
14
16
15
13
13

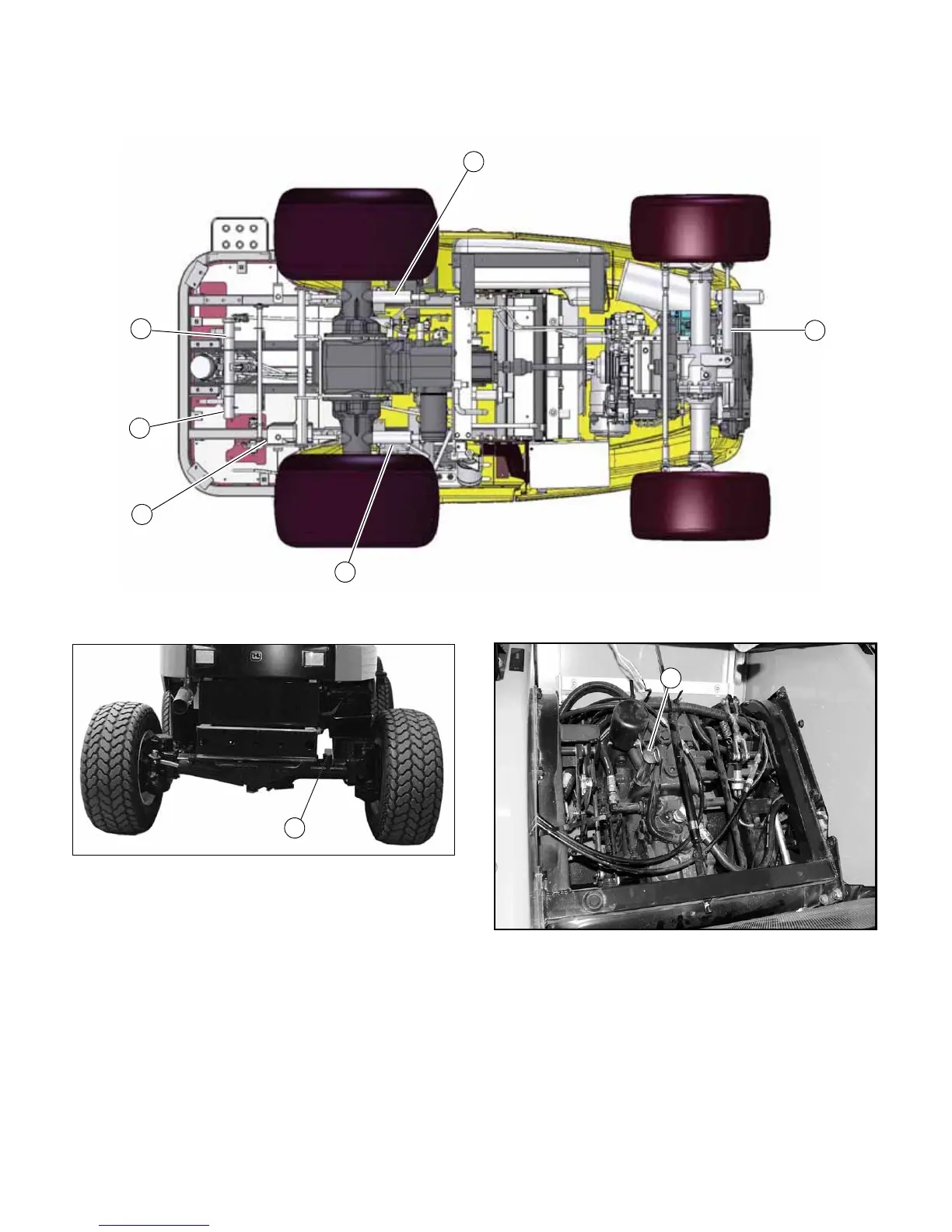

Figure 4-40
