Master In-Line Fuse
These mowers have a master in-line fuse in the electrical
system. This is the main fuse to protect the complete
electrical system. It is located under the seat platform and
next to the solenoid. Figure 4-1
Hydraulic System
The transmissions are sealed for life and do not require
any scheduled maintenance.
Fuel and Evaporative Emissions Control System
IMPORTANT: Refer to the Safety section of this manual for
fuel handling safety information.
IMPORTANT: Refer to the engine owner’s manual for
additional emissions control information.
Use only Hustler
®
approved replacement parts.
Your evaporative emission control system may include
parts such as:
• fuel tanks
• fuel lines
• fuel line fittings
• fuel caps
• carbon canisters
• canister mounting brackets
• carburetor purge port connection
• filters
• vapor hoses
• clamps, control valves
• control solenoids
• electronic controls
• vacuum control diaphragms
• purge valves
• liquid/vapor separator
• other associated components
The fuel tank is located under the seat platform with the
filler neck and fuel cap located in the left side fender.
Figure 4-2
Park the mower on level ground before filling fuel tank.
Clean the area around the fuel cap before removing the
cap. Remove the fuel cap slowly.
When threading the fuel cap onto the filler neck, tighten the
cap until it begins to click, then, continue to turn it until at
least three clicks are heard.
IMPORTANT: Do not overfill the fuel tank. The fuel tank
should be filled
no higher than the bottom of the fill neck. The

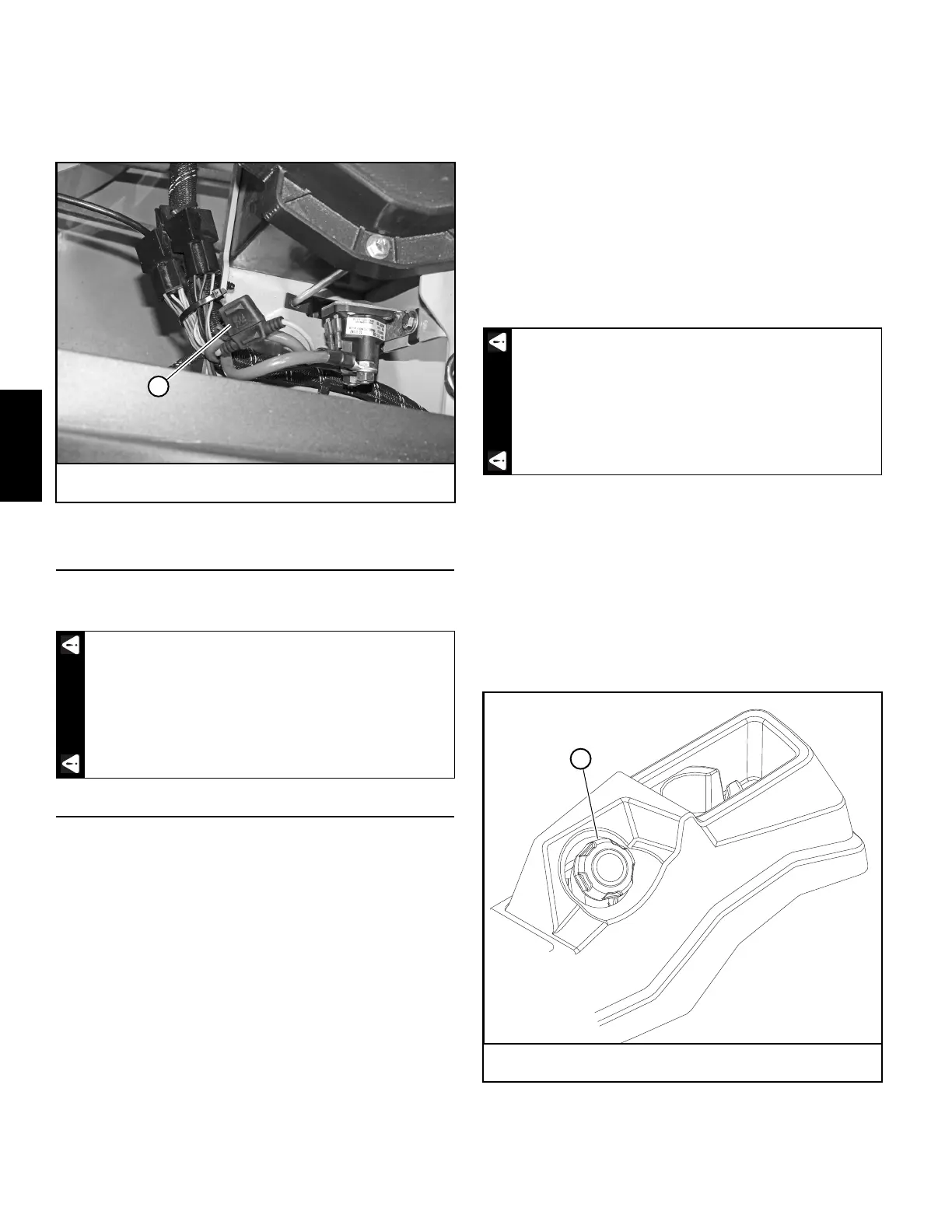

A. Master fuse housing
Figure 4-1
When washing the mower, direct the spray away
(especially if using a power washer) from the
transaxle’s seals to prevent water intrusion and
ensure component performance.
A
WARNING
Use of replacement parts not equivalent to the
original parts may result in system failure and
pose a safety hazard.
A. Fuel cap
Figure 4-2
WARNING
A
