REV A 4-6 608269CE
CZ
DA
DE
EN
ES
FR
IT
NL
PT
SV

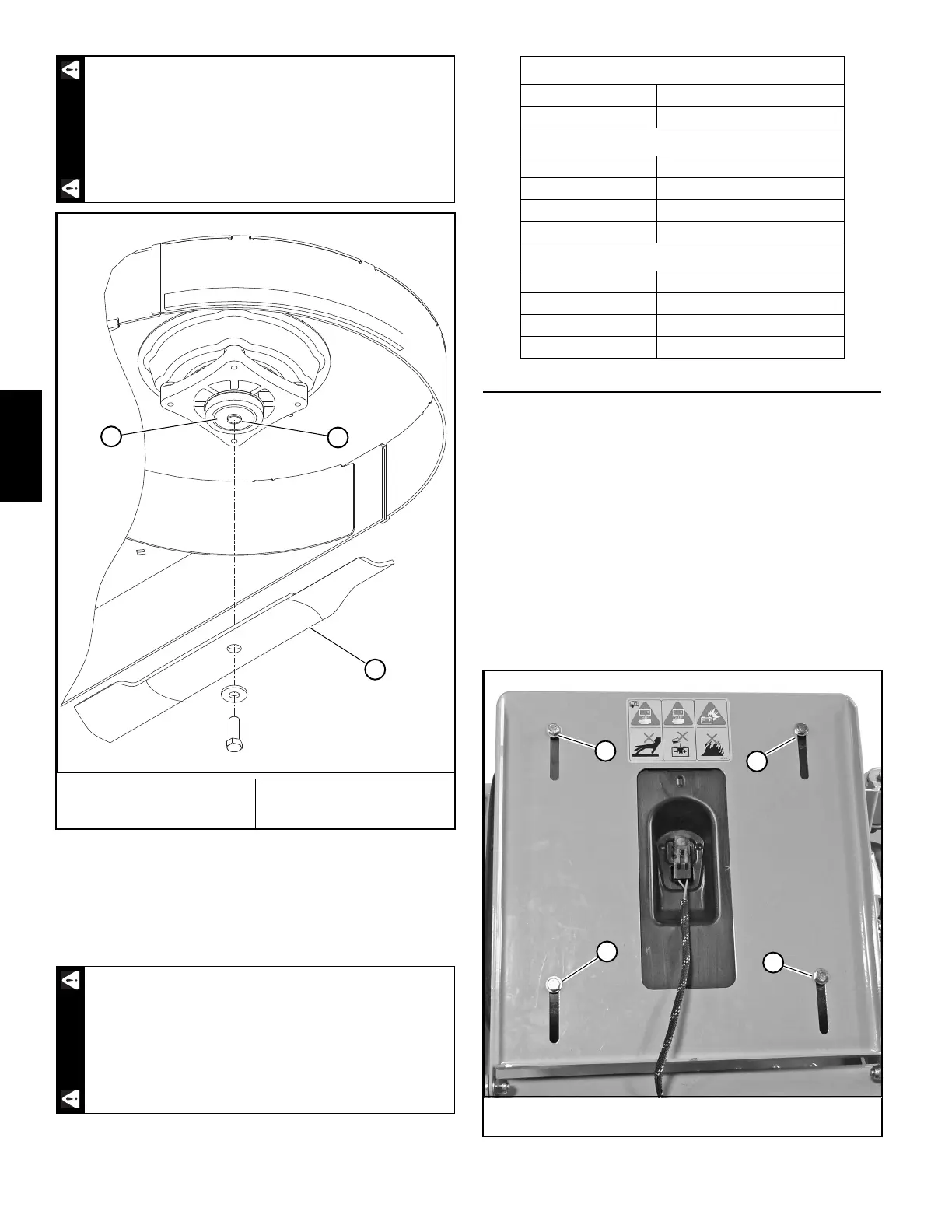

Mower Blade Options
The following is a list of the approved mower blade options
that are available from Hustler
®
Turf Equipment for this
mower.
Seat Adjustment
IMPORTANT: Any maintenance operation that requires
the removal of safety covers must be performed by a trained
service technician.
The seat on the Hustler
®
Dash™ mower can be adjusted
forward and rearward.
1. Pivot the seat platform up and forward.
2. Loosen the four cap screws on the underneath side of
the seat platform. Figure 4-9
3. Position the seat where you have the best control of
the machine and are the most comfortable.
4. Tighten the cap screws. Torque to 7 ft–lbs (9 N•m).
Figure 4-9
Rotate the blades after installation to ensure blade
tips do not touch each other or sides of the
mower.
A. Spindle shaft face
B. Boss
C. Blade
Figure 4-8
Use only genuine Hustler® replacement blades to
ensure that original standards are maintained. Fail-
ure to use approved blades could lead to blade
breakage which could result in death, injury or prop-
erty damage.
WARNING
B
A
C
DANGER
34" Side Discharge Deck
607281 BLADE, 16.75-MED-F-CW
607311 BLADE, 16.75-MUL-F-CW
42" Side Discharge Deck
607280 BLADE, 20.5-MED-F-CW
607310 BLADE, 20.5-MUL-F-CW
794230 BLADE, 20.5-GAT-F-CW
607564 BLADE, 20.5-L-F-CW-L
48" Side Discharge Deck
607558 BLADE, 16.5-L-F-CW-L
796623 BLADE,16.5-MUL-F-CW
796631 BLADE, 16.5-GAT-F-CW
606252 BLADE, 16.5-H-F-CW
A. Cap screws
Figure 4-9
A
A
A
A
