Lay the blade on a flat surface and check for distortion.
Replace any distorted blade. Figure 4-6 & Figure 4-7
Mower Blade Replacement
IMPORTANT: Refer to the Safety section of this manual for
blade handling safety information.
A 5/8" wrench is required to remove the 7/16" cap screw
holding the blade to the spindle shaft. NOTE: A blade holding
tool (part number 381442) is available from Hustler
®
Turf
Equipment. It is designed to prevent the blades from rotating
when they are being removed or installed on the spindle.
Contact your Hustler
®
Dealer for more information.
Do not re-use spindle bolts which have stripped, worn or
undercut threads. Torque bolts on spindles to 65 N•m when
reinstalling blades.
IMPORTANT: The blade sail (curved part) must be
pointing upward toward the inside of the deck to ensure
proper cutting.
IMPORTANT: The spindles have 5/8" diameter boss that
centers the blades on the spindles. When re-installing blades,
make sure the blade is centered on the boss and seated flat
against the spindle shaft face.

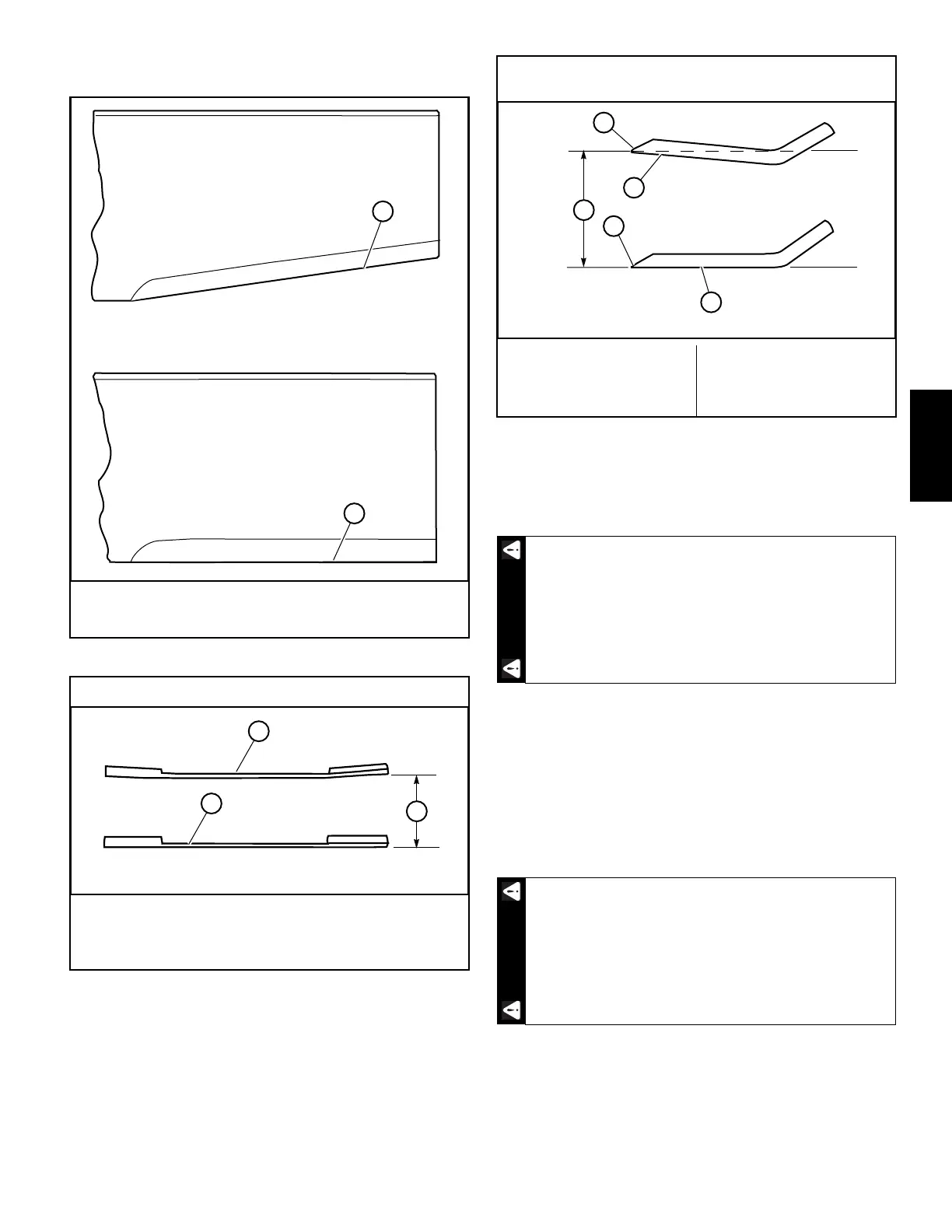

A. Re-sharpening pattern
B. Original edge
Figure 4-5
Comparison of Warped and Straight Blades
A. Warped blade — replace
B. Straight blade
C. Cutting plane
Figure 4-6
Do not sharpen to original pattern (below). It is
easier to get a straight cutting edge following
the re-sharpening pattern shown above.
A
B
A
B
C
End view of blades, comparing twisted and straightened
blades.
A. Twisted blade edge —
replace blade
B. Straight blade edge
C. Cutting plane
D. Cutting edge
Figure 4-7
Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves and use extra caution
when servicing them.
Failure to correctly torque the bolt may result in
the loss of the blade which can cause serious
injury.
A
C
D
D
B
WARNINGWARNING
