604466 4-9 REV D

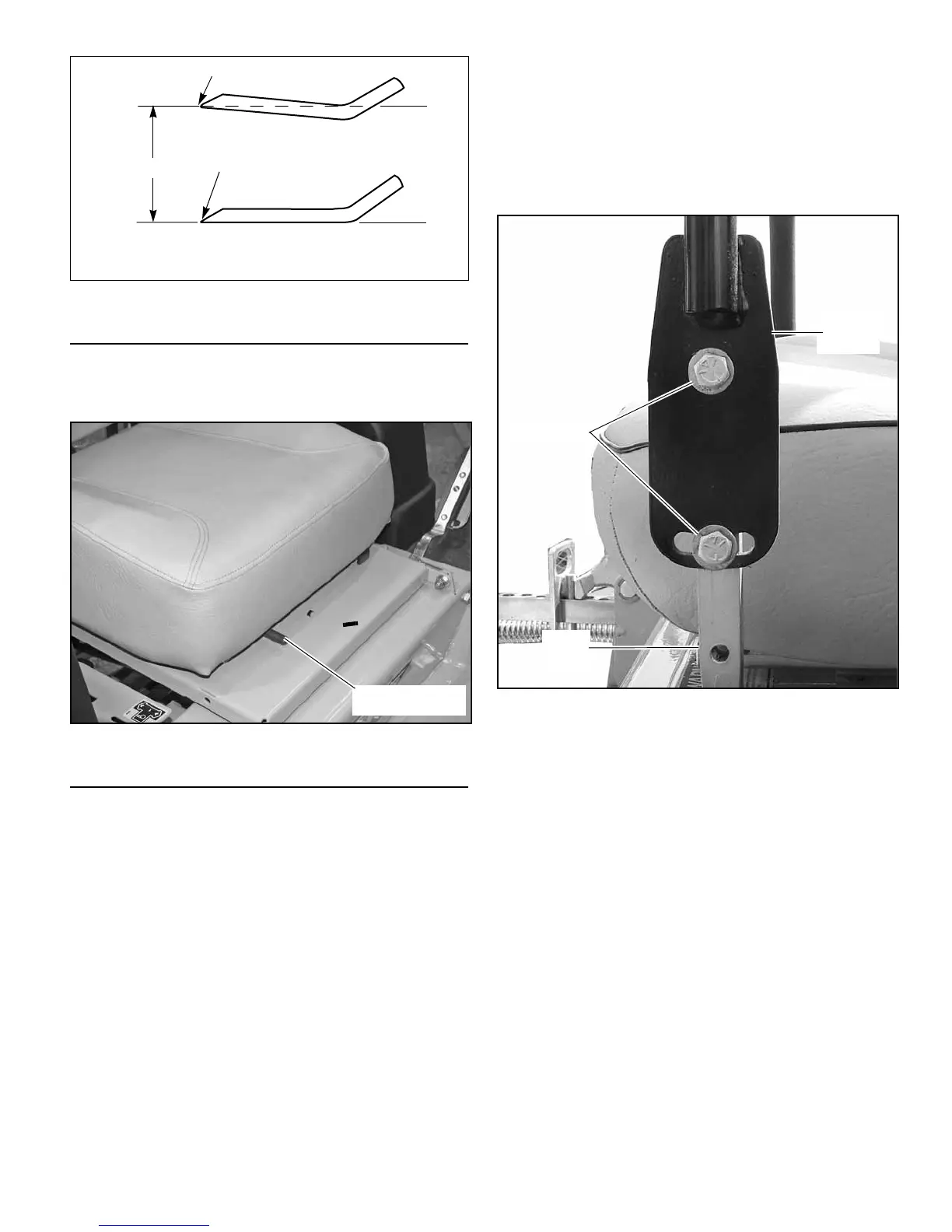

Seat Adjustment
The seat on the mower can be adjusted forward and rearward
by sliding the seat release handle and moving the seat until a
comfortable operating position is attained. Figure 4-13
Steering Control Lever Adjustment
The steering control levers can be adjusted for operator
comfort. By loosening the cap screws that attach the upper
control lever to the lower lever (Figure 4-14), the upper control
lever can be pivoted to fit the operator’s personal preference.
The steering control levers can als
o be adjusted up and down.
Remove the cap screws and slide the upper control lever up or
down and align the holes in it with the holes in the lower lever.
Re-install the cap screws and tighten.
The steering control levers should be adjusted
so that they
align with each other when in the neutral position.
Figure 4-12
Figure 4-13
Cutting edge
Twisted Blade Edge
(replace)
Cutting edgeCutting Plane
Straight Blade Edge
End view of blades, comparing
twisted and straightened blades
Forward/rearward
travel lever
Figure 4-14
Cap screws
Upper
control
lever
Lower
control
lever
