HWH SPACEMAKER - Room Control Panel Wiring

MP84.0501
07MAY12

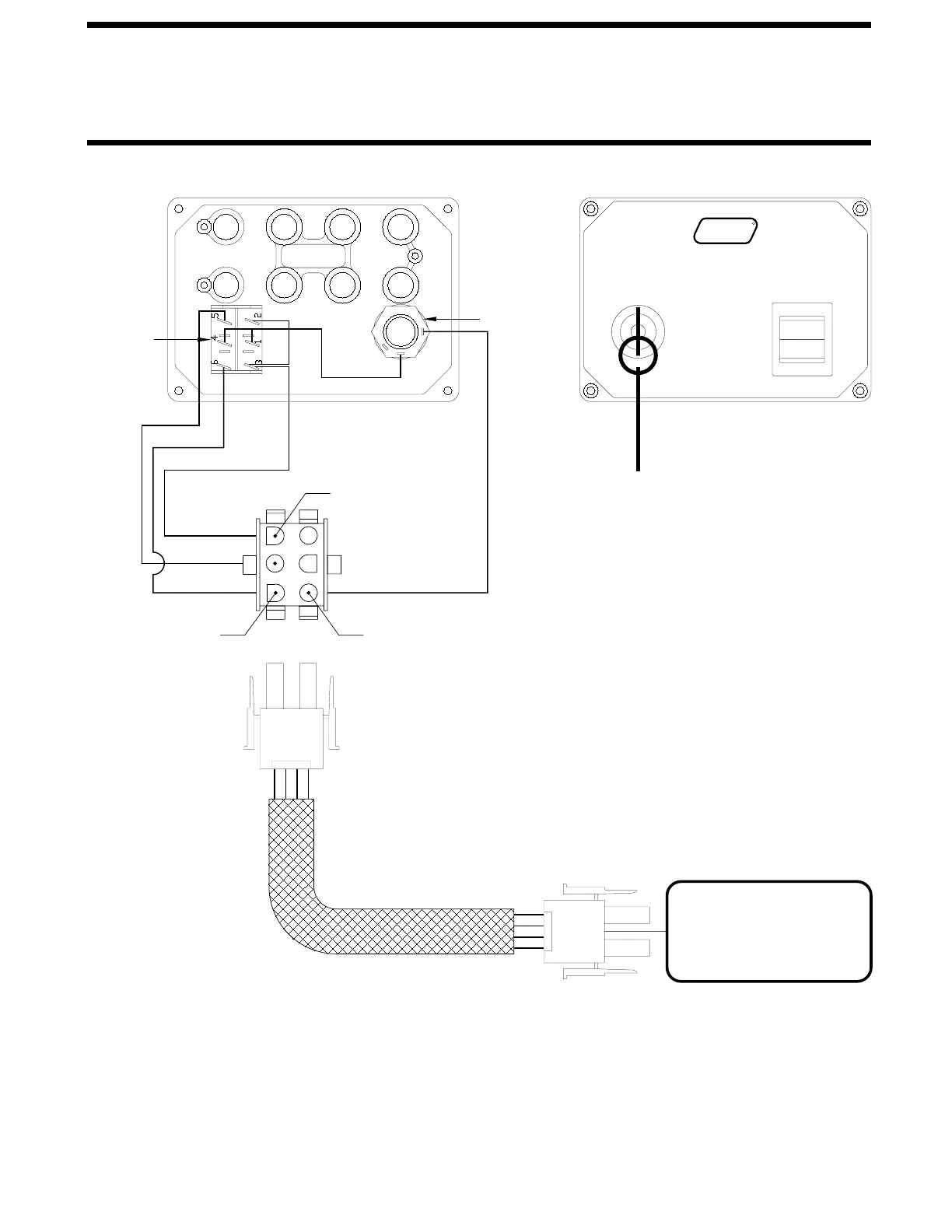

ELECTRICAL CONNECTION DIAGRAM
ROOM CONTROL PANEL
CAUTION!
CLEAR OF ROOM WHEN OPERATING.
USING. KEEP PEOPLE AND OBSTRUCTIONS
UNDERSTAND OPERATOR’S MANUAL BEFORE
RETRACT
ON
HYDRAULIC ROOM EXTENSION
OFF
EXTEND
H
H
CORPORATION
W
R
CONTROL
ROOM
SWITCH
KEY
PANEL
ROOM
SWITCH
PIN 6
PIN 3
PIN 1
8601
5100
5000
CONNECTIONS
TO ROOM MANIFOLD
AND PUMP RELAY
6125
(PIN INFO SAME FOR ALL ROOM CONTROL PANELS)
PIN 6 - 6125 - +12 BATTERY
PIN 4 AND 5 - NO CONNECTION
PIN 3 - 5100 - ROOM RETRACT - SWITCHED +12
PIN 2 - 5000 - ROOM EXTEND - SWITCHED +12
PIN 1 - 8601 - PUMP RELAY CONTROL - SWITCHED +12
CONNECTION INFORMATION
CONNECTIONS AND INFORMATION WILL BE
THE SAME FOR ALL OF THE ROOM EXTENSIONS
