Hyco PF30S User Manual

Resetting the thermal cut-out
Remove the four screws and lift away the access plate (located at the base of the unit
next to the water inlet and outlet).
Remove the insulation from inside the heater.

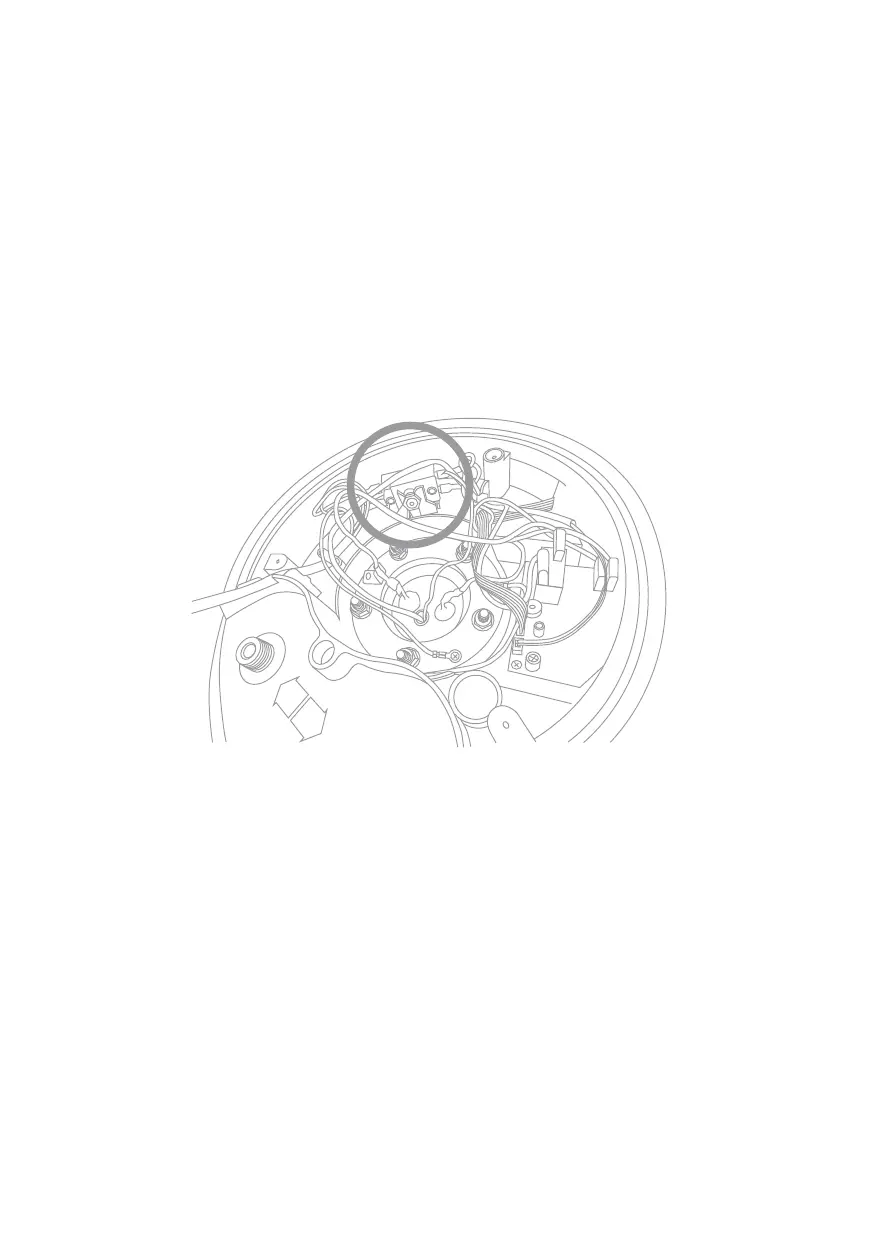

Locate and push the button in the centre of the thermal cut-out to reset the unit.
If a cut-out event re-occurs, contact the technical team at Hyco on 01924 225200
for further advice.
Removing the element
Remove the four screws and lift away the access plate (located at the base of the unit
next to the water inlet and outlet).
Remove the insulation from inside the heater.
Locate and disconnect the Live and Neutral terminals.
Remove the thermostat and thermal cut-out probes by gently pulling them from the
element pocket.
Remove the five nuts from the retaining ring of the heating element and this will release
and allow full removal of the heating element.
12
V

Hyco PF30S Specifications

General

Brand	Hyco
Model	PF30S
Category	Water Heater
Language	English
