Hyco PF30S - Plumbing connections

Allow at least 500mm below
and 200mm above the heater
to facilitate future maintenance.

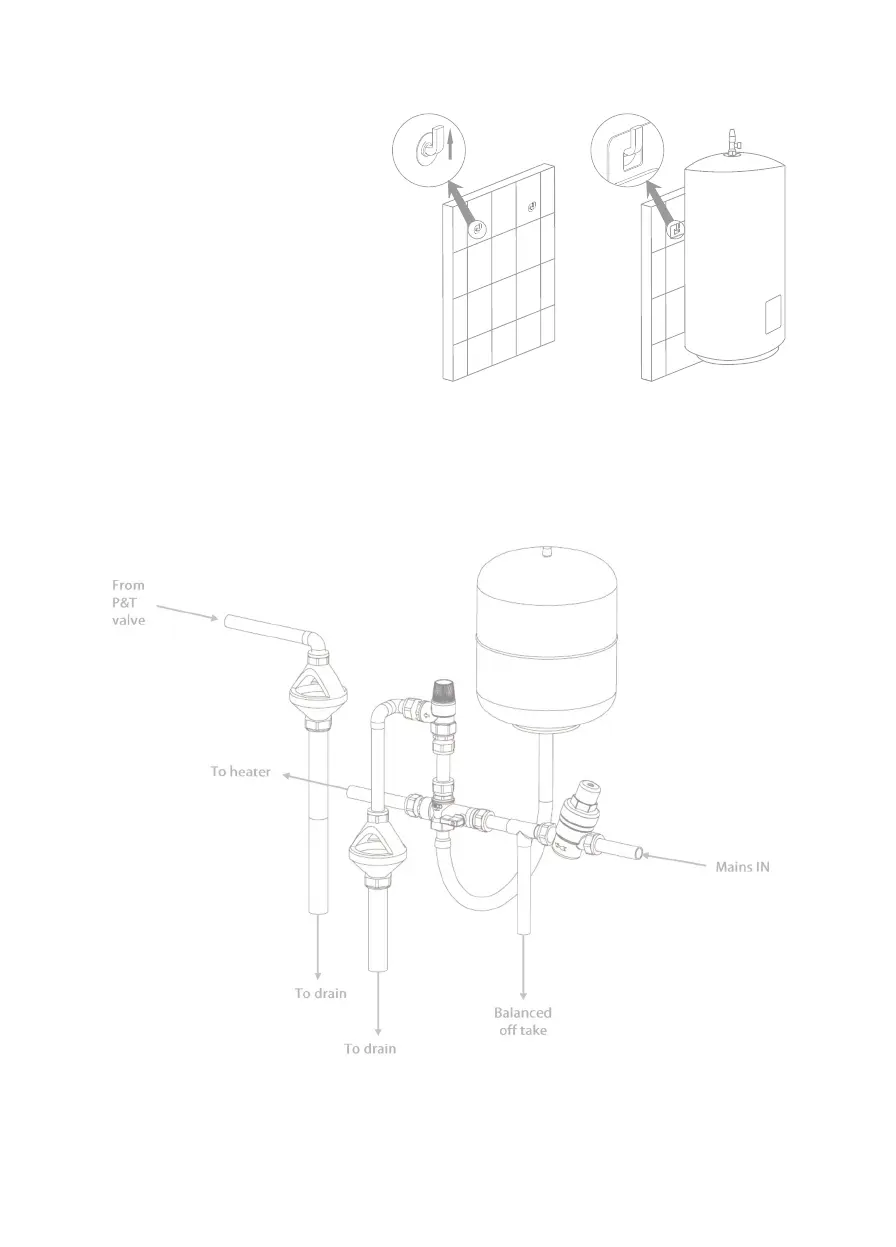

To mount the heater, drill two
holes for the supplied wall fixings
and hang the heater onto them
via the bracket at the rear.
Plumbing connections
Diagram 2
4
V
