K500 Auto Hydroheater – 3.5 Rev: 8-2016
© Hydro-Thermal Corp., 2014. All rights reserved
Hydroheater, Solaris, Jetcooker, EZ Heater and K5 Autopilot are trademarks of Hydro-Thermal Corp, and are protected under
U.S. and Canadian patents.

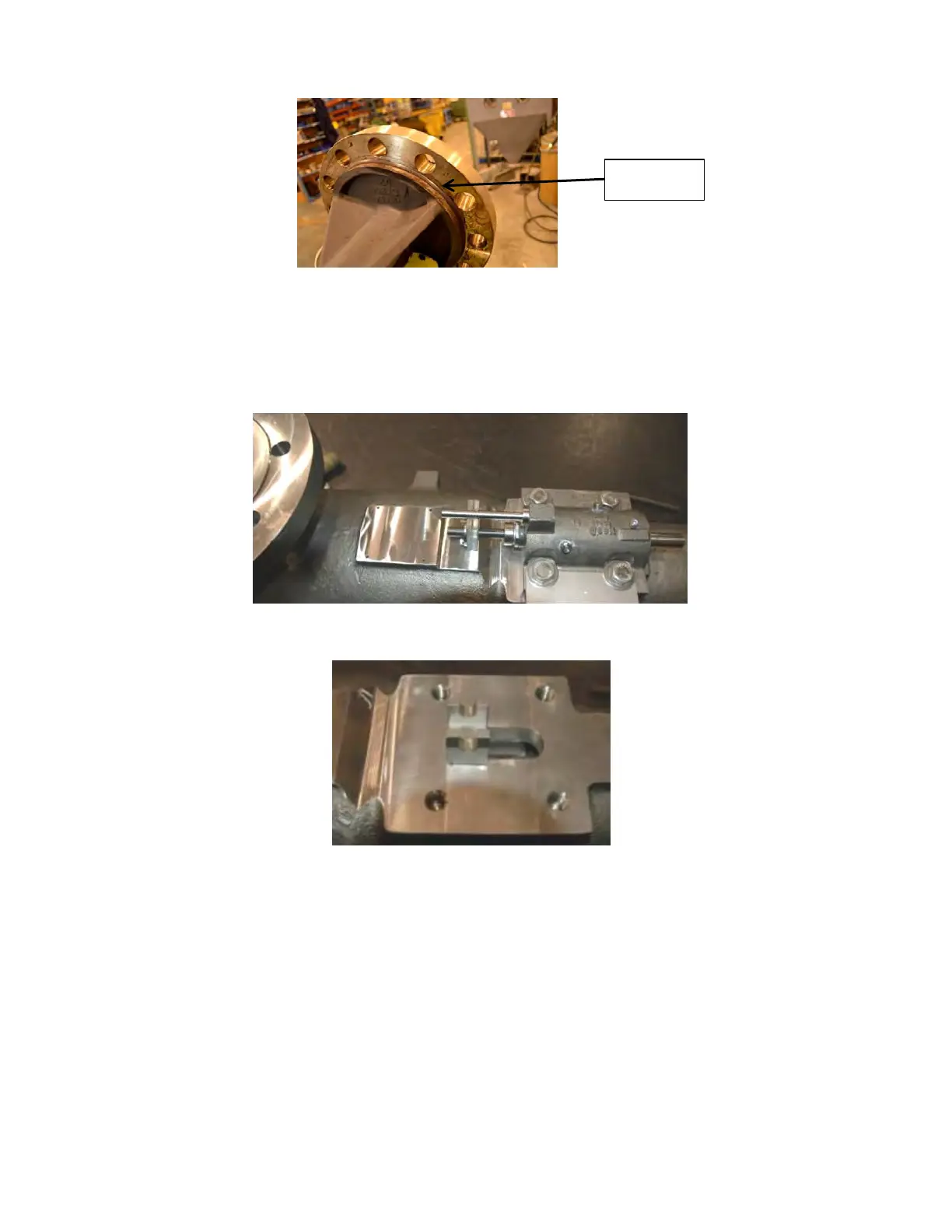

Figure 18: Different View of Body Side of Head
13. Remove the CTA (four bolts). Then remove the CT stud from the CT.
14. Remove the spiral retaining ring holding in the nozzle. Some older models may
have a snap ring instead.
