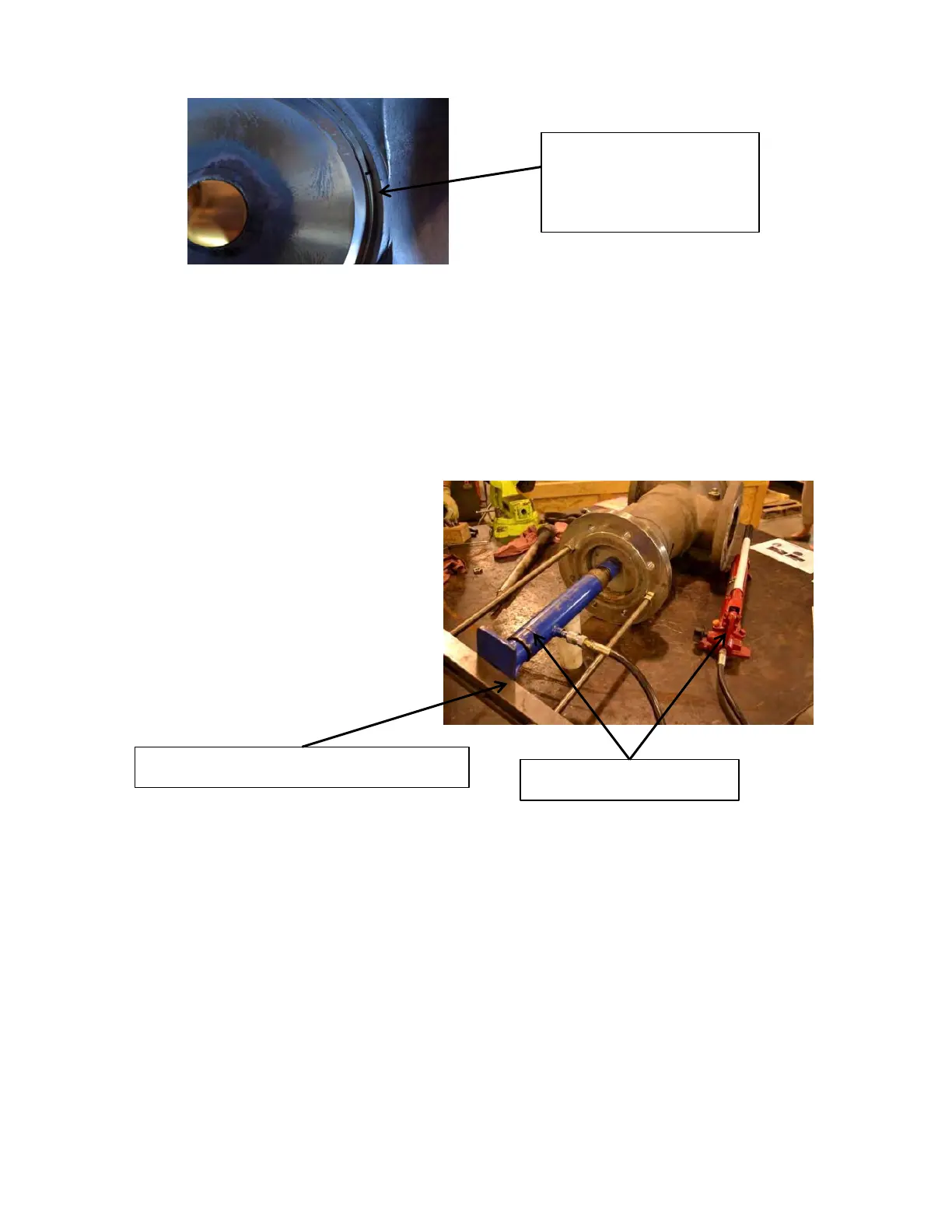

Figure 21: Body Internal at Steam Inlet
15. Pull out the nozzle. It may need to be gently tapped out from the discharge
end with a long pipe. Do this carefully because if the nozzle becomes
misaligned, it will be extremely difficult to remove.
16. Remove the CT (combining tube) through the head end. If need be, use a
Porta Power and bridging assembly to push out the CT from the discharge end.
Figure 22: Extracting the Combining Tube
17. Inspect the CT and heater body for damage (scratches, dents, wear spots, etc)
and clean completely. In particular, thoroughly clean all of the surfaces that
the nozzle and CT will touch when reassembled. This step is critical for a
successful reassembly.
Snap ring or
spiral retaining
ring
