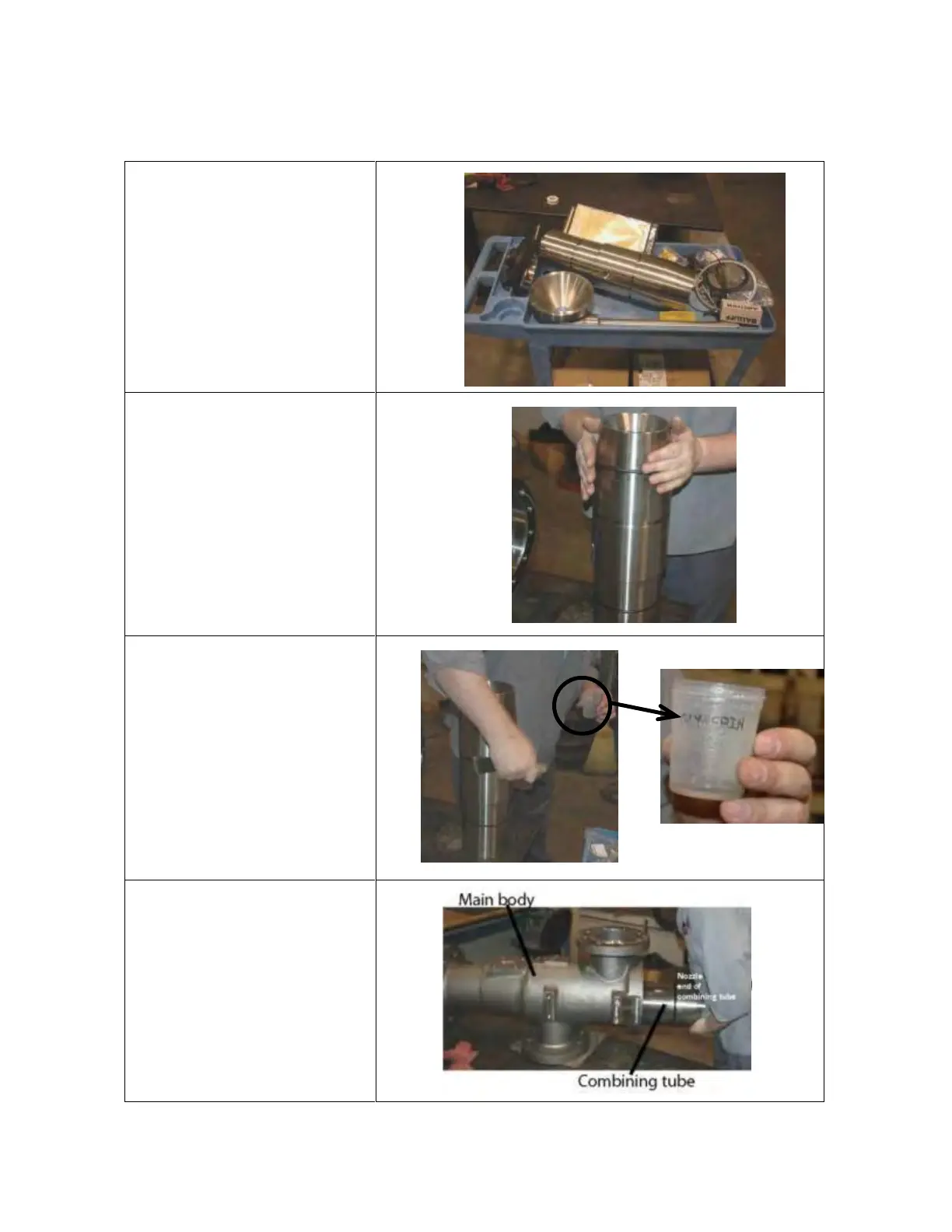

Table 8: Step by Step Assembly Instructions
Item numbers referenced are shown in figure 29 and table 10
Step 1: Gather tools and
individual parts needed for
assembly.
Step 2: Slide two O-rings
over combining tube into
radial grooves.
Step 3: Lubricate O-rings
with glycerin.
Step 4: Insert combining
tube (item 3) into body
(item 1) from the nozzle
end. The circle shows the
nozzle end of the CT. It is
critical that the inside of the
body and the outside of the
CT to be completely clean of
debris, scale, and/or product
prior to starting this step.
