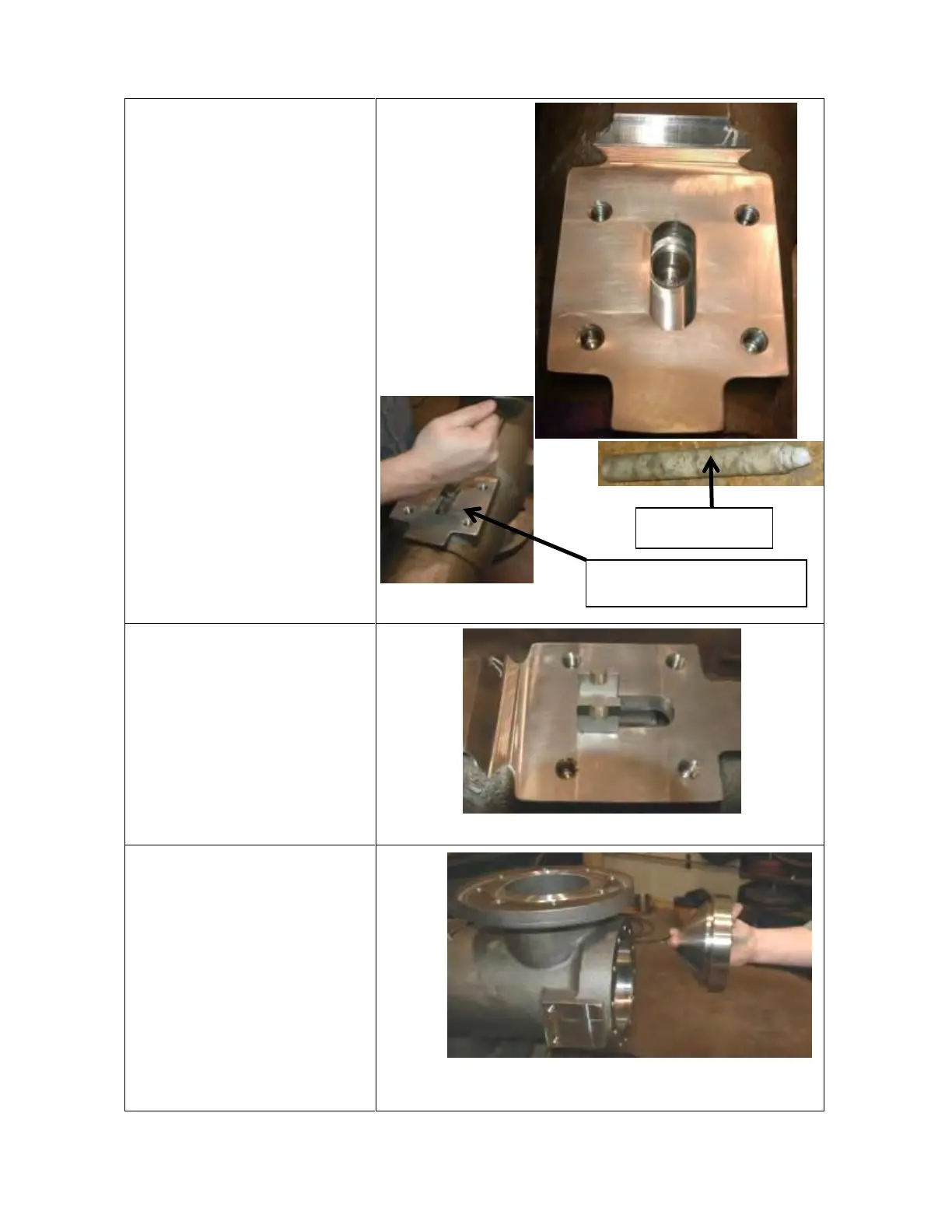

Step 5: Align combining
tube stud hole with center
of slot in main body. (might
need a soft piece of stock to
center hole without
damaging the threads)
Step 6: Screw in CT Stud
(item 8) until shoulder
touches the body, then turn
it counter-clockwise ½ to 1
full turn so that the slot in
the CT stud aligns with the
CTA barrel nut.
Step 7: Insert nozzle (item
4) into body. Make sure the
nozzle and nozzle seating
area of the body are
completely clean of debris,
scale, and/or product.
Failure to do so will make
nozzle installation extremely
difficult.
