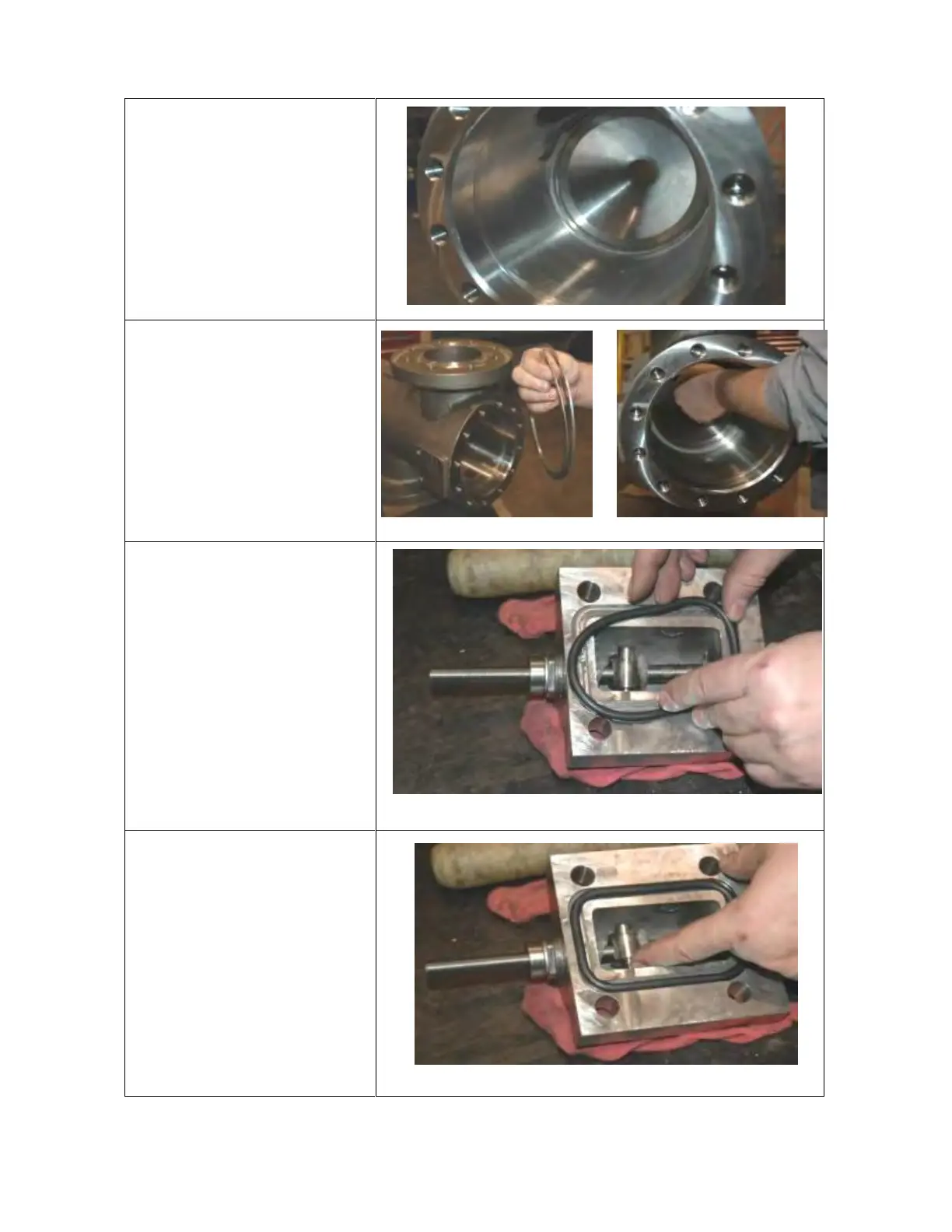

Step 8: Slide nozzle until it
travels just beyond retaining
ring groove. The clearance
between the nozzle and
body is tight, so gently tap
around the nozzle to
complete insertion.
Step 9: Install spiral
retaining ring (item 15).
Ensure ring is properly
seated. (Some smaller units
use a snap ring in place of a
spiral retaining ring).
Step 10: Lubricate O-ring
area and install O-ring (item
7) in CTA housing assembly
(item 6).
Step 11: Make sure the
barrel nut is straight to
ensure proper seating of the
housing on the CTA stud.
Grease shaft.
