13
SB3SD

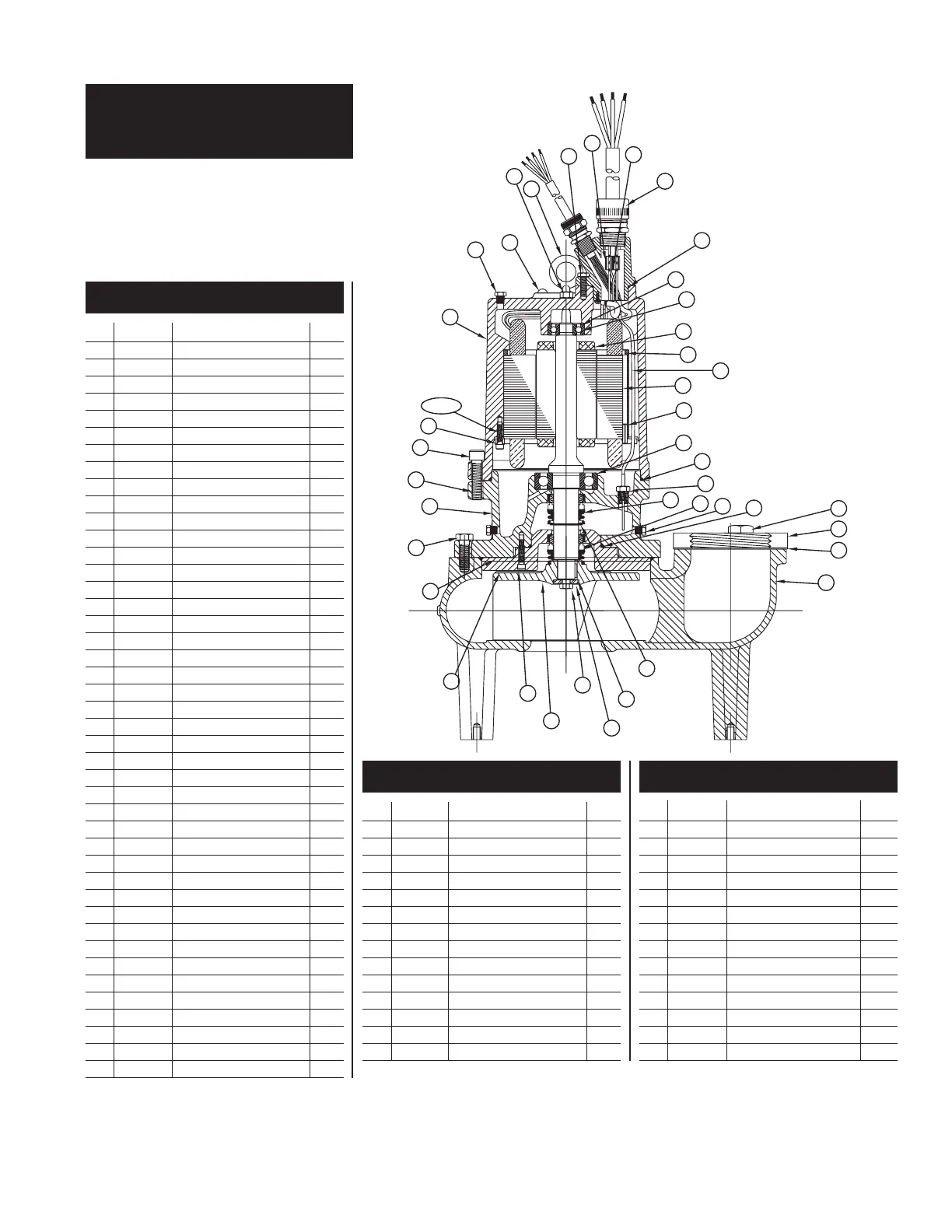

Parts List
*— CE-B Carbon Ceramic / Buna-N, TC-B Tungsten Carbide / Buna-N, TC-V Tungsten Carbide / Viton
®
1 152720335 35' Cord Assembly 14-4 1
152720305 35' Cord Assembly 12-4 1
152720315 35' Cord Assembly 10-4 1
2 00834-015-1 O-Ring 1
3 00064-003-1 Spring – Brg. 1
4 00065-021-1 Brg. 1
5 077730175 Rotor/Shaft 3 HP – 230– 460/3/60 1
01329-026-5
Rotor/Shaft 3 HP – 230/1-575/3-200/3
1
00740-020-5 Rotor/Shaft 1.5 & 2 HP – 230/1/60 1
0773-017-5 Rotor/Shaft 1.5 & 2 HP all 3-Phase 1
07774-017-5 Rotor/Shaft 1 HP all 1-Phase 1
07773-017-5 Rotor/Shaft 1 HP – all 3-Phase 1
6 00736-003-1 Spacer 2 HP, 1750 RPM – 3 Phase 1
00736-001-1 Spacer 1 HP, 1150 RPM – 1 Phase 1
00736-003-1 Spacer 1 HP, 1150 RPM – 3 Phase 1
7 06000-014-1 Seal Fail Wire 1
8 24407C215 Stator – 2 HP – 230/1/60 1750 RPM 1
24407C216 Stator – 2 HP – 200/3/60 1750 RPM 1
24407C217 Stator – 2 HP – 230,460/3/60 1750 RPM 1
24407C218 Stator – 2 HP – 575/3/60 1750 RPM 1
24407C200 Stator – 3 HP – 230/1/60 1750 RPM 1
24407C201 Stator – 3 HP – 200/3/60 1750 RPM 1
24407C217 Stator – 3 HP – 230,460/3/60 1750 RPM 1
24407C203 Stator – 3 HP – 575/3/60 1750 RPM 1
24407C223 Stator – 1 HP – 230/1/60 1150 RPM 1
14715-203-1 Stator – 1 HP – 200/1/60 1150 RPM 1
24407C225 Stator – 1 HP – 230,460/3/60 1150 RPM 1
24407C224 Stator – 1 HP – 200/3/60 1150 RPM 1
24407C226 Stator – 1 HP – 575/3/60 1150 RPM 1
9 05454-001-1 Pin – Roll 1
10 00065-018-1 Brg. 1
11 00150-057-1 O-Ring 1
12 08472-001-5 Seal Fail 1
13 04916-000-1 Mechanical Seal, Upper (CE-B)* 1
14 04916-000-1 Mechanical Seal, Lower (CE-B)* 1
04916-001-1 Mechanical Seal, Lower (TC-B)* 1
04916-004-1 Mechanical Seal, Lower (TC-V)* 1
15 14981-001-1 Plug – Pipe 3
16 00150-029-1 O-Ring 1
17 09947-101-2 Volute 1
18 00975-012-1 Snap Ring 1
19 08908-002-1 Key Square 1
20 10108-000-1 Washer – Impeller 1
21 19101A003 Screw – Cap 1
Ref. Part Part
No. No. Description Qty.
22 09927-123-2 Impeller – 1.5 HP 1
09927-124-2 Impeller – 1 HP & 2 HP 1
09927-125-2 Impeller – 3 HP 1
23 06106A019 Screw – Cap 5
24 07990-002-2 Plate – Seal 1
25 00150-019-1 O-Ring 1
26 19103A043 Screw – Cap 4
27 08206-000-1 Inst Plate 1
28 07145-000-2 Housing – Bearing 1
29 00568-007-1 Screw – Cap 4
30 00299-002-1 Ring-Retainer Stator 1
31 00294-003-2 Housing – Motor 1
32 04580-001-1 Screw – Drive 2
33 00589-002-1 Bolt – Eye 2
34 19100A033 Screw – Cap 2
35 12672A001
Wire Connector all HP 230/1/60 1750 RPM
3
Wire Connector all HP 200,575/3/60 1750 RPM
3
Wire Connector all HP 230,460/3/60 1750 RPM
4,6
Wire Connector all 1 Phase 1150 RPM 3
Wire Connector 2 HP 200,575/3/60 1150 RPM
3
Wire Connector 2 HP 230,460/3/60 1150 RPM
4,6
36 02577-000-1 Wire Connector all 1
37 00517-007-1 Screw-Cap 4
38 01032-002-1 Hex Nut 2
39 05454A023 Lock Washer 4
40 00356-000-2 Discharge Flange 1
41 19105A044 Screw-Hex 2
42 01054-000-1 Gasket 1
– 51700-125-7 Ceramic Seal Kit
– 51700-126-7 Carbide Seal Kit
Ref. Part Part
No. No. Description Qty.
Ref. Part Part
No. No. Description Qty.
For use with product
built with Regal Beloit/
Marathon motor.
2
1
10
3
4
5
6
7
8
9
11
12
13
14
15
16
17
42
40
41
24
23
22
21
20
19
18
27
28
29
30
26
25
31
15
32
38
33
34
35
36
37, 39
