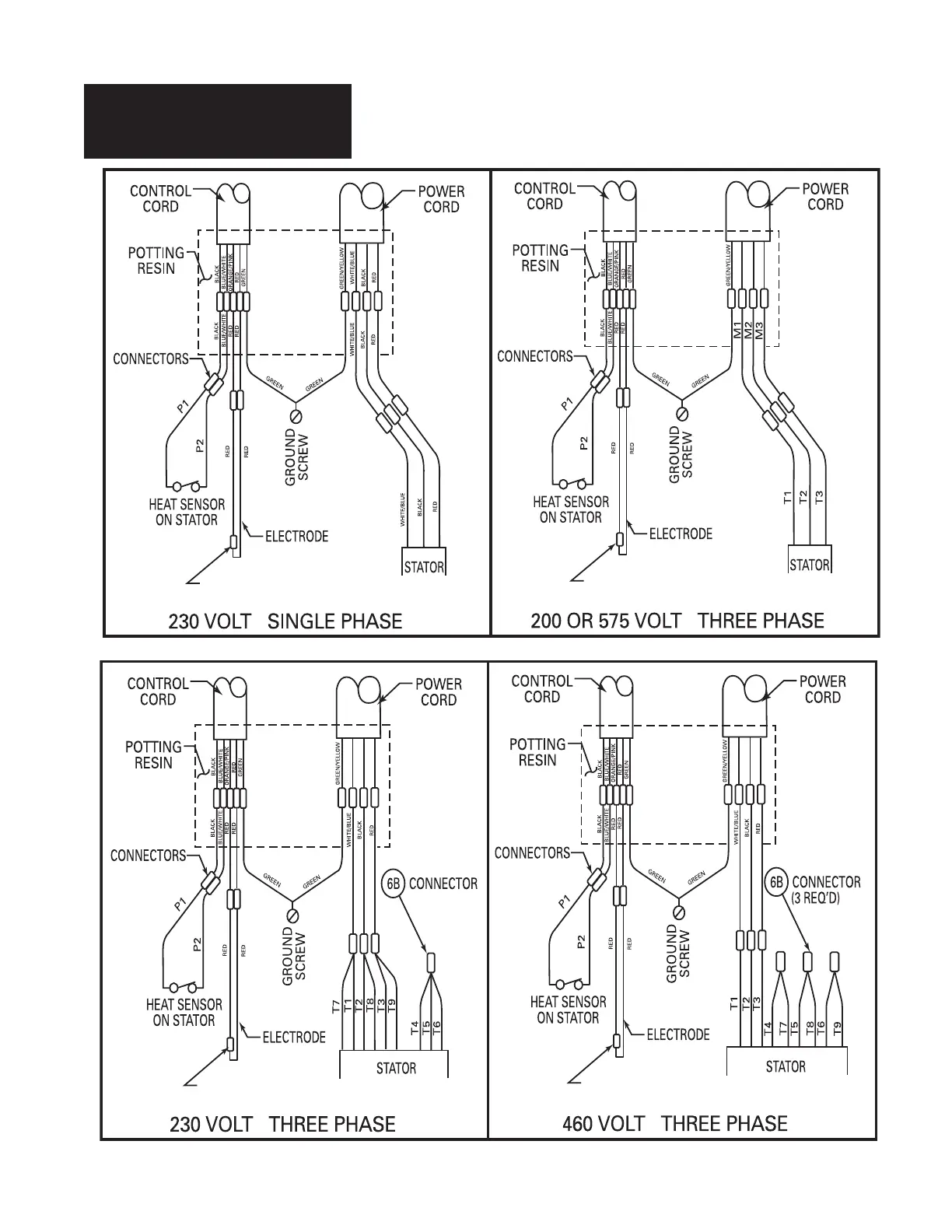

Hydromatic S4NX - Wiring Diagrams; 230 Volt Single Phase Diagram; 200 or 575 Volt Three Phase Diagram; 230 Volt Three Phase Diagram

Hydromatic S4NX
16 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
9
PROBE TEST RESISTOR
ON HAZARDOUS LOCATION ONLY
PROBE TEST RESISTOR
ON HAZARDOUS LOCATION ONLY
PROBE TEST RESISTOR
ON HAZARDOUS LOCATION ONLY
PROBE TEST RESISTOR
ON HAZARDOUS LOCATION ONLY
––
––
Wiring
Diagrams
