If your system was configured to include a 120VAC power cord, ensure that the proper
receptacle has been installed (a dedicated circuit is required). DO NOT under any
circumstances modify a 20 Amp plug to fit into a 15 Amp receptacle or use an extension cord.
Doing so will create hazardous conditions and/or void the warranty.
OPTION 1
20AMP CORDEND GFCI
PORTABLE SPA
DEDICATED
15A/120V OUTLET

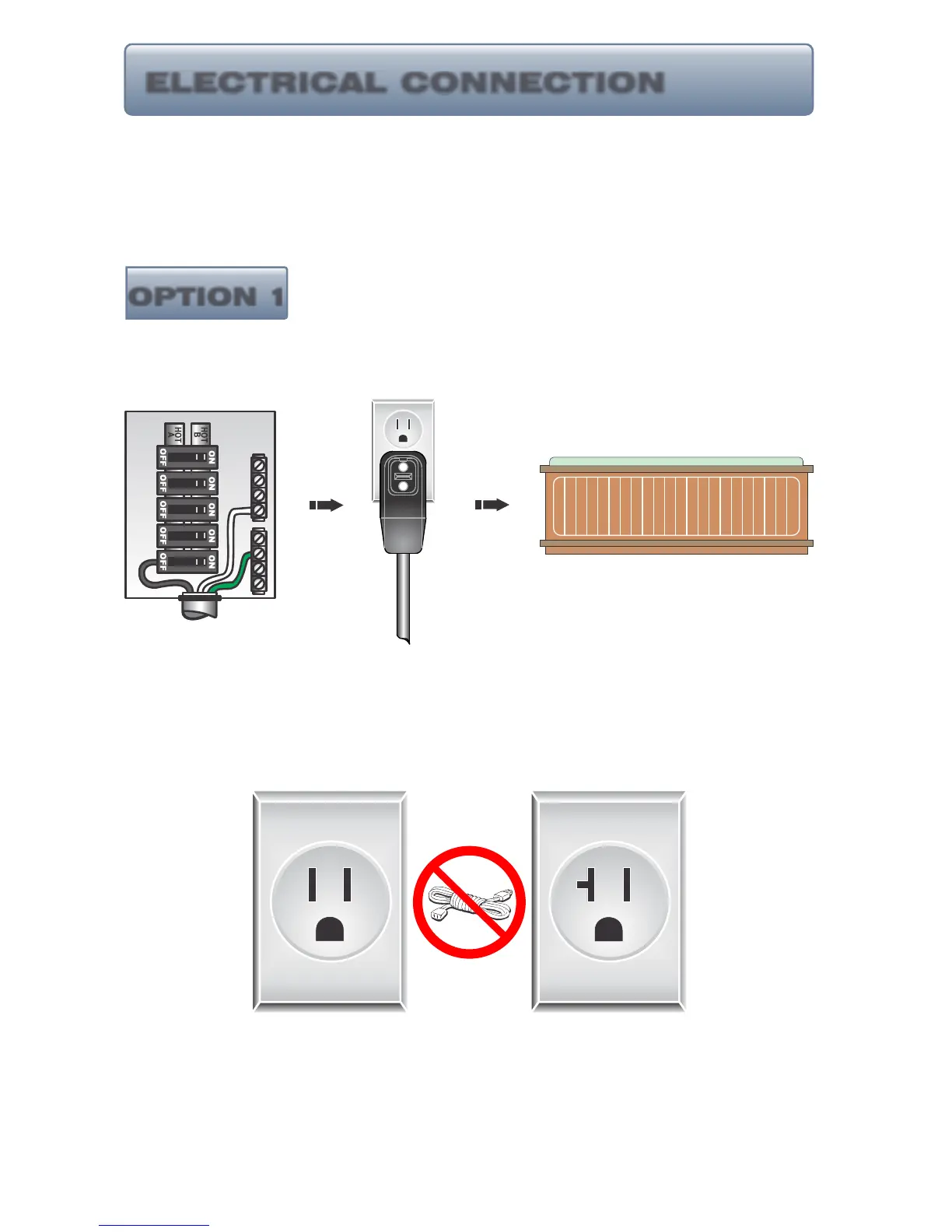

This illustration depicts a typical 20 AMP, cord-end
GFCI installation.
(The spa must be installed on a dedicated circuit.)
DO NOT
USE AN
EXTENSION
CORD
15 AMP
RECEPTACLE
20 AMP
RECEPTACLE
Units with 15A GFCI Plug Connection
MAIN BREAKER PANEL
ELECTRICAL CONNECTION
