STEP THREE - ATTACH THE PUMP
• Allign the pump motor with the four
holes that match up to the filter base.
This will require the use of four
mounting bolts & nuts from the
hardware supplied with the base.
(Fig. 8)
• Bolt the housing of the pump
through the base & tighten securely.
(Fig.10)
The filter and pump should be attached to the base prior to filling the tank with sand as it will
be difficult to maneuver after the tank is full.
• Place bolts underneath the base
in the properly aligned mounting hole.
(Fig. 9)
• Cover the threads of each straight
fitting with teflon tape and thread one
fitting into the front of the pump and one
fitting into the top of the pump.
• Attach the hose with a clamp
on each fitting.
(Fig. 11)

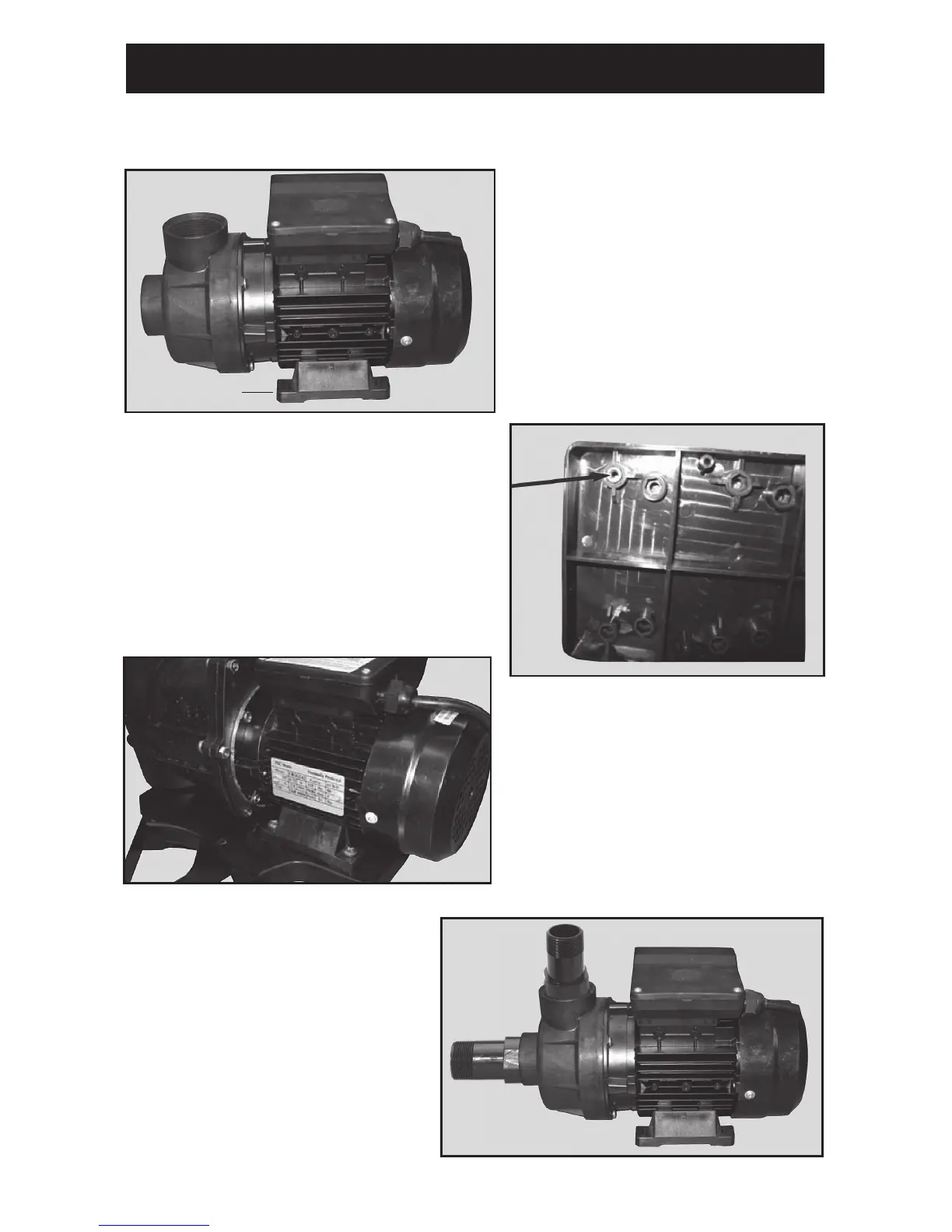

Fig. 8
Mounting Holes
Fig. 9
Fig. 10
Fig. 11
