3. OXYMATIC SYSTEM INSTALLATION
3.1. Plumbing
It is of the upper most importance that correct/careful plumbing is carried out when installing the Oxymatic

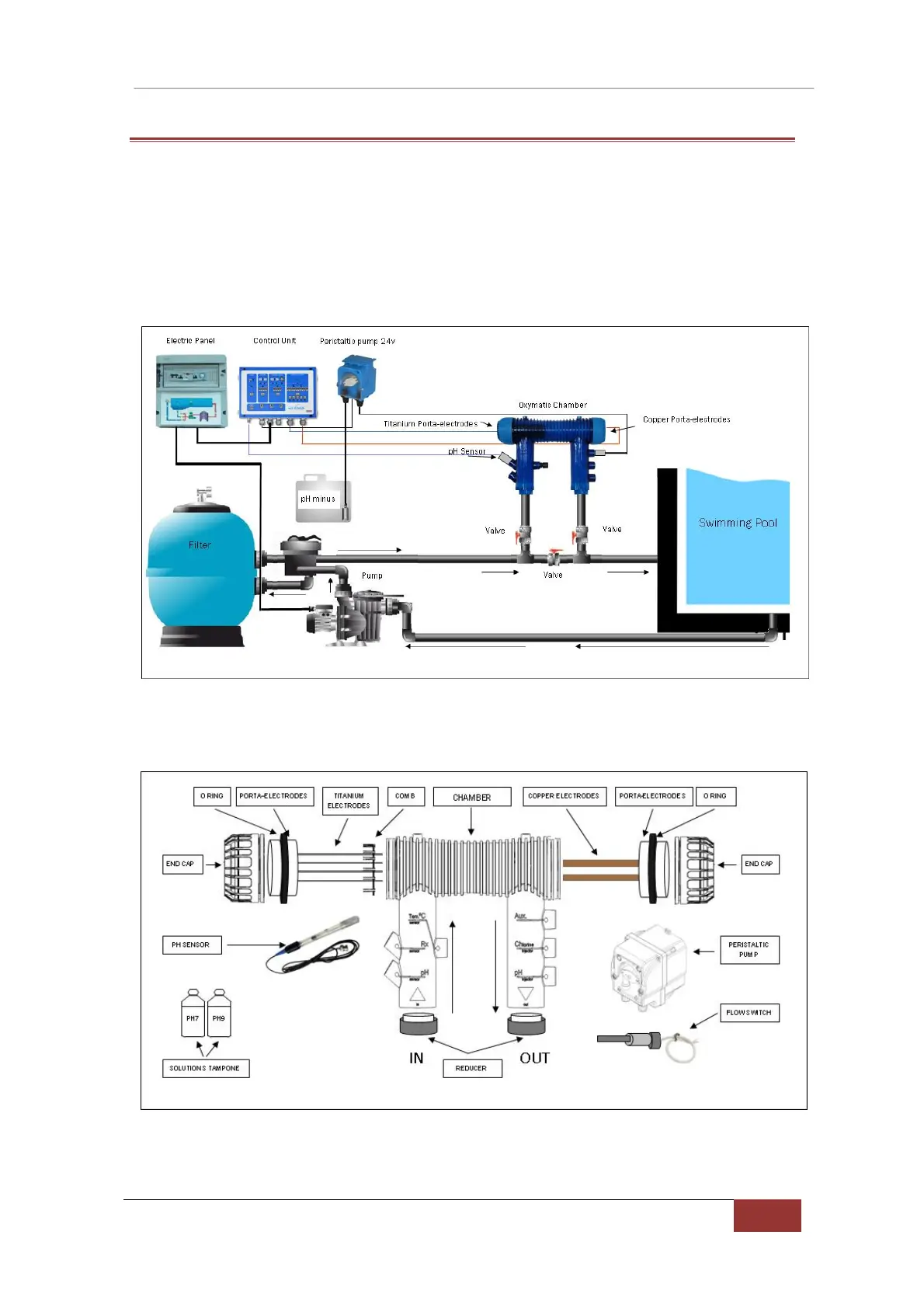

system – this is the basis of a good installation. It is important that the camera is installed after the filtering
circuit and heating - see diagram below
The titanium electrodes should be connected to the entry of the water and the copper electrodes to the output.
Depending on the Oxymatic model, connection of the injection point of pH and chlorine peroxide should be
carried out on a case by case basis.
Copper Systems
