User Guide Oxymatic Basic
Rev.Apr 2013
Hydrover Water Solutions S..L.U.
9
H2O2 / Cl Systems

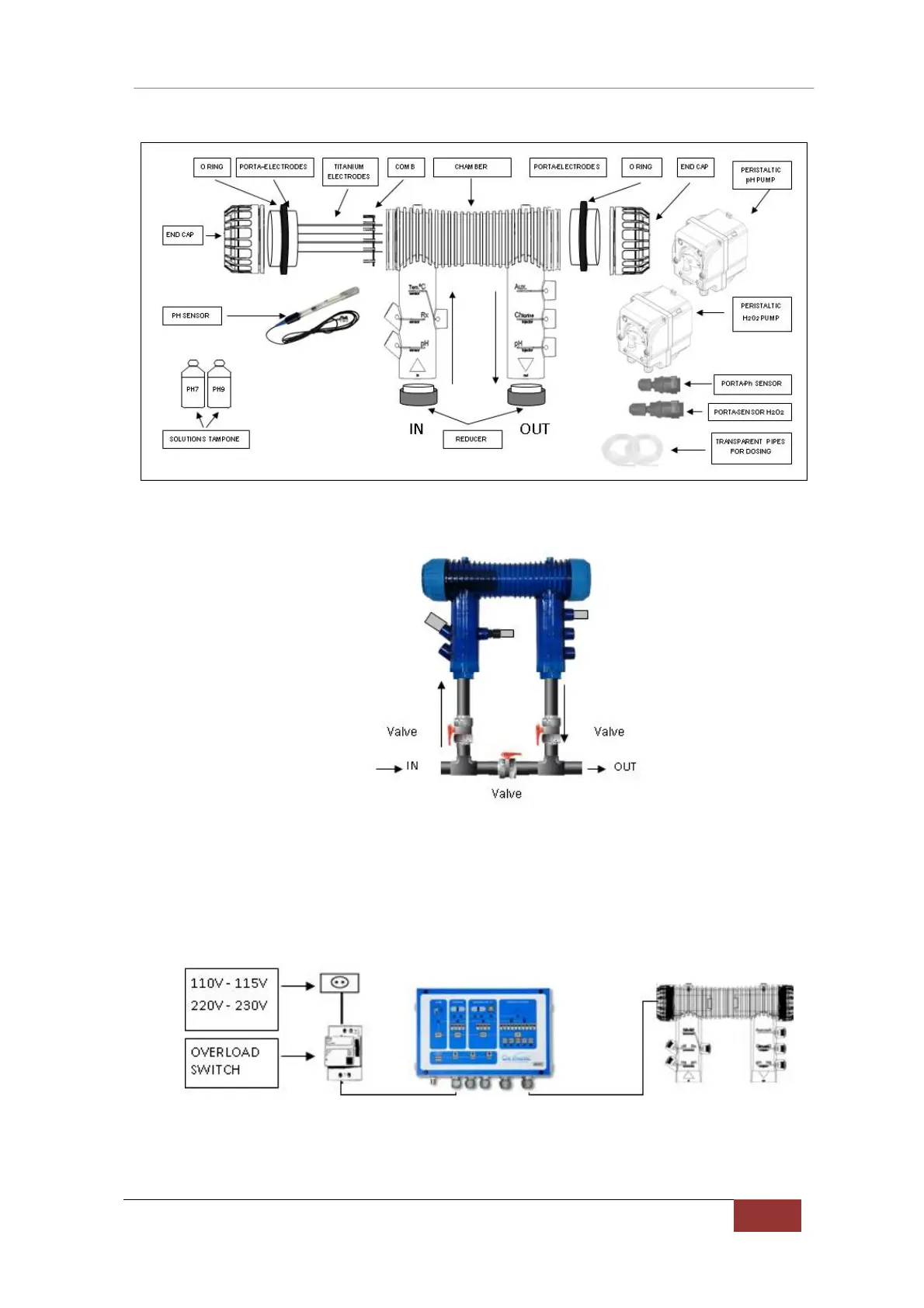

For correct installation and easy maintenance we recommend the installation of the camera with a by-pass as
shown in the figure below.
* The material of the camera is compatible with any PVC glue
3.2. Electricity
The equipment is shipped ready for use via 100v to 240v. There is no requirement for a power adapter but we
recommend installing a motor protector before connecting to the mains. This avoids any possible increase in
the tension which will severely affect the electronics of Oxymatic, (not covered by the warranty). (See image)
We OXYMATIC only has one power input – “the computer to the network” and therefore it is important not to
connect the pump or any other components to the mains.
