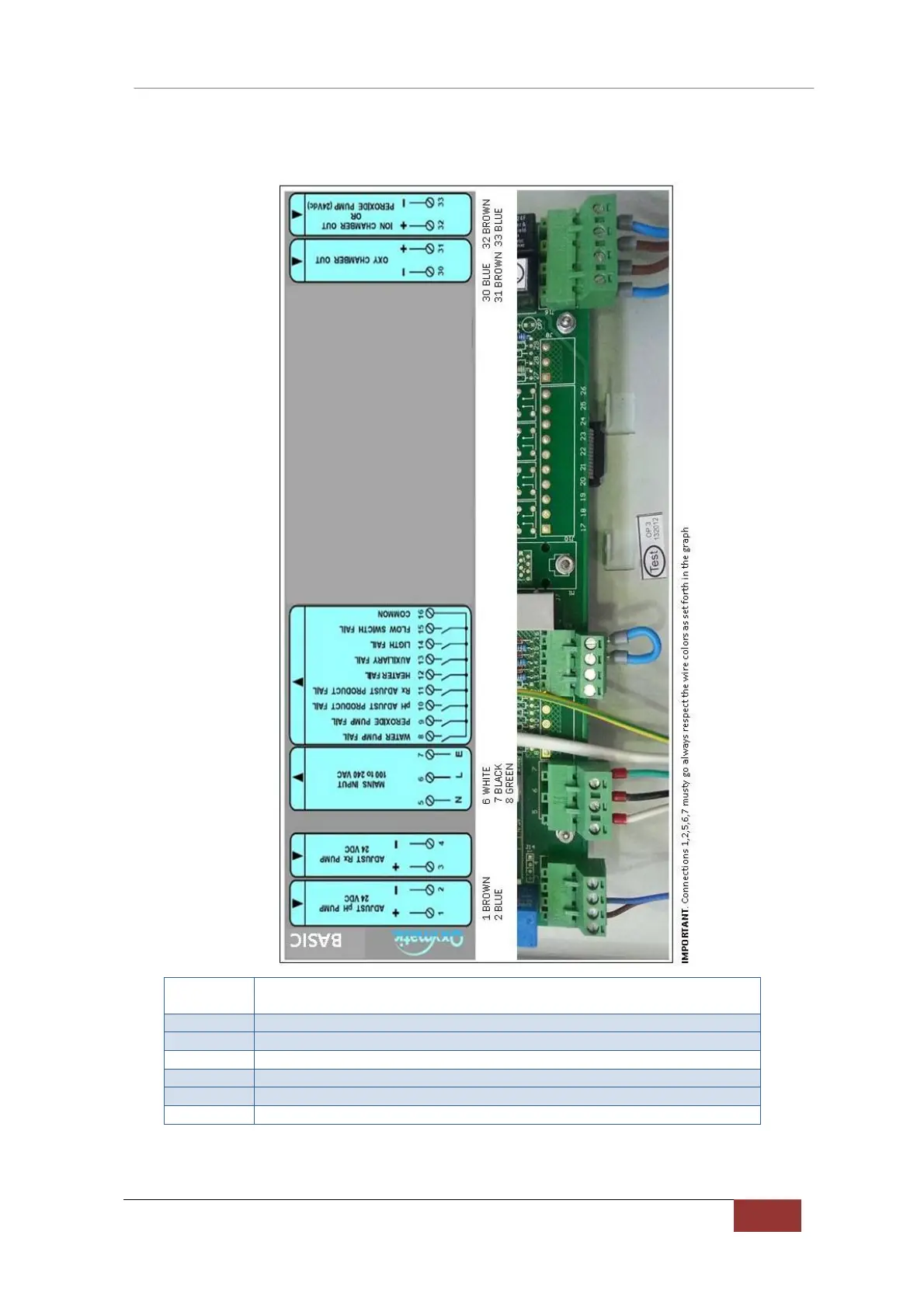

3.2. Connections Table
See below the connections that are permitted via Oxymatic
Nº
Conector
Descripción
1 y 2 Connecting the pH injection pump (24V)
5, 6 y 7 Main power connection to the network (Max. 240V)
8 -14 Connections indicators
15-16 Flow Switch
30 y 31 Connecting to the Ti electrode
32 y 33 Connecting Copper electrodes peroxide or Chlorine
