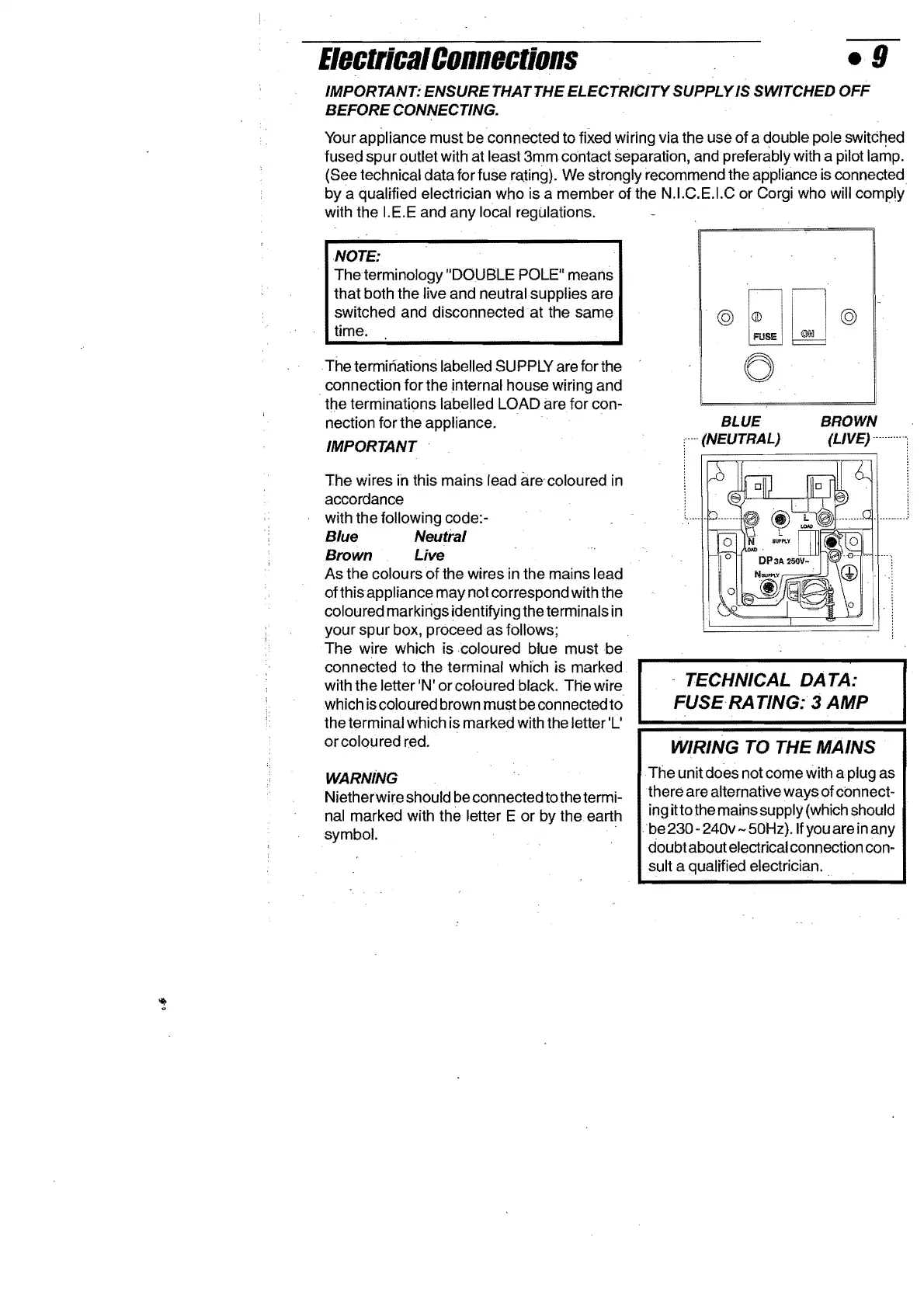

Electrical
Connections
.9
IMPORTANT:
ENSURE
THAT
THE
ELECTRICITY SUPPLY
IS
SWITCHED
OFF
BEFORE
CONNECTING.
Your appliance must be connected to fixed wiring via the use of a double pole switched
fused
spur
outlet with at least
3mm
contact separation, and preferably with a pilot lamp.
(See technical data for fuse rating). We strongly recommend the appliance is connected
by
a qualified electrician
who
is a member
of
the N.I.C.E.I.C or Corgi who will comply
with the
lEE
and
any
local regulations.
NOTE:
The terminology "DOUSLE POLE" means
that both the live and neutral supplies are
switched and disconnected· at the same
time.
The terminations labelled SUPPLY are for the
connection
for
the internal house wiring and
tile
terminations labelled LOAD are for con-
nection for the appliance.
IMPORTANT
The
wires in this mains lead are coloured in
accordance
with the following code:-
Blue Neutral
Brown Live
As
the colours
of
the wires in the mains lead
ofthisappliance
may
not correspond with the
coloured markings identifying the terminals in
your
spur
box, proceed
as
follows;
The
wire which is coloured blue must be
connected to the terminal which
is
marked
with
the
letter 'N'
or
coloured black.
THe
wire
which is coloured brown must be connected
to
the terminal which is marked with the letter 'L'
orcoloured
red.
WARNiNG
Nietherwire should be connected to the termi-
nal marked with the letter E
or
by
the earth
symbol. .
©
EJ
()
BLUE
(NEUTRAL)
.
©
BROWN
(LIVE)
TECHNICAL DATA:
FUSE RATING:
3 AMP
WIRING
TO
THE MAINS
The unit does not come with a plug as
there are alternative
waY$
of
connect-
ing
itto
the mains supply (which should
. ·be 230 -240v - 50Hz). If you are in any
doubt about electrical connection con-
sult a qualified electrician .
..
