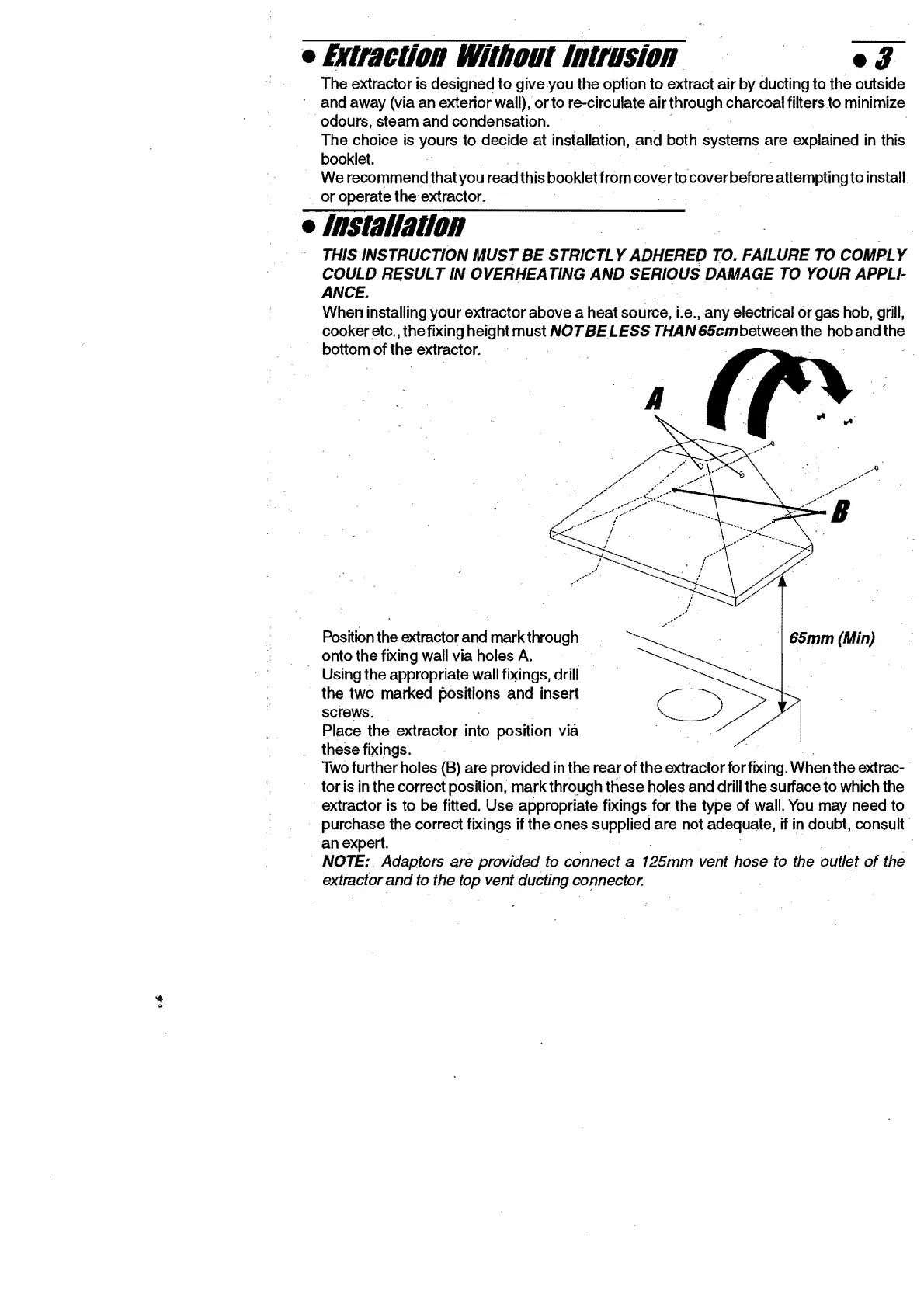

-Extraction
Without
Intrusion
-3
The extractor is designed to giveyou the option to extract air
by
ducting to the outside
and away (via an exterior wall). or to re-circulate air through charcoalfiltersto minimize
odours, steam and condensation.
The choice
is
yours to decide at installation, and both systems are explained
in
this
booklet.
We
recommendthat you read this bookletfrom cover to cover before attempting to install
or operate the extractor.
-Installation
THIS INSTRUCTION
MUST
BE
STRICTL Y ADHERED
TO.
FAILURE
TO
COMPLY
COULD
RESULT
IN
OVERHEATING
AND
SERIOUS
DAMAGE
TO
YOUR
APPLI-
ANCE.
When installing your extractor above a heat source. i.e., any electrical or
gas
hob,
grill,
cooker etc., the fixing height must
NOT
BE
LESS
THAN
65cm
between the hob and the
bottom of the extractor.
Position
the extractor
and
markthrough
65mm
(Min)
onto the fixing
wall
via holes
A.
Using the appropriate wall
fi~ings,
drili
the two marked positions and insert
screws.
Place the extractor into position via
these fixings.
Two
further holes (8) are provided
in
the rear of the extractor for fixing. Whenthe extrac-
tor is
in
the correct position,
markthro~ugh
these holes and drill the surface to which the
extractor
is
to
be
fitted. Use appropriate fixings for the type of wall.
You
may need to
purchase the correct fixings if the ones supplied are not adequate, if
in
doubt, consult
an expert.
NOTE: Adaptors
are
provided to connect a 125mm vent hose to the outlet
of
the
extractor
and
to the top vent ducting
COf;,mector.
