Whether you are planning to duct externally
or
recirculate you will need a purpose de-
signed ducting kit which is available from where you purchased your extractor, in both
cases you will need to fix the ceiling bracket.
Once your extractor is in position on the wall, the bracket needs to be positioned directly
above the extractor outlet on the ceiling
or
other appropriate
surfa<::e.
Use a spirit level
and a straight edge to ensure it is square to the extractor.
BIA6t

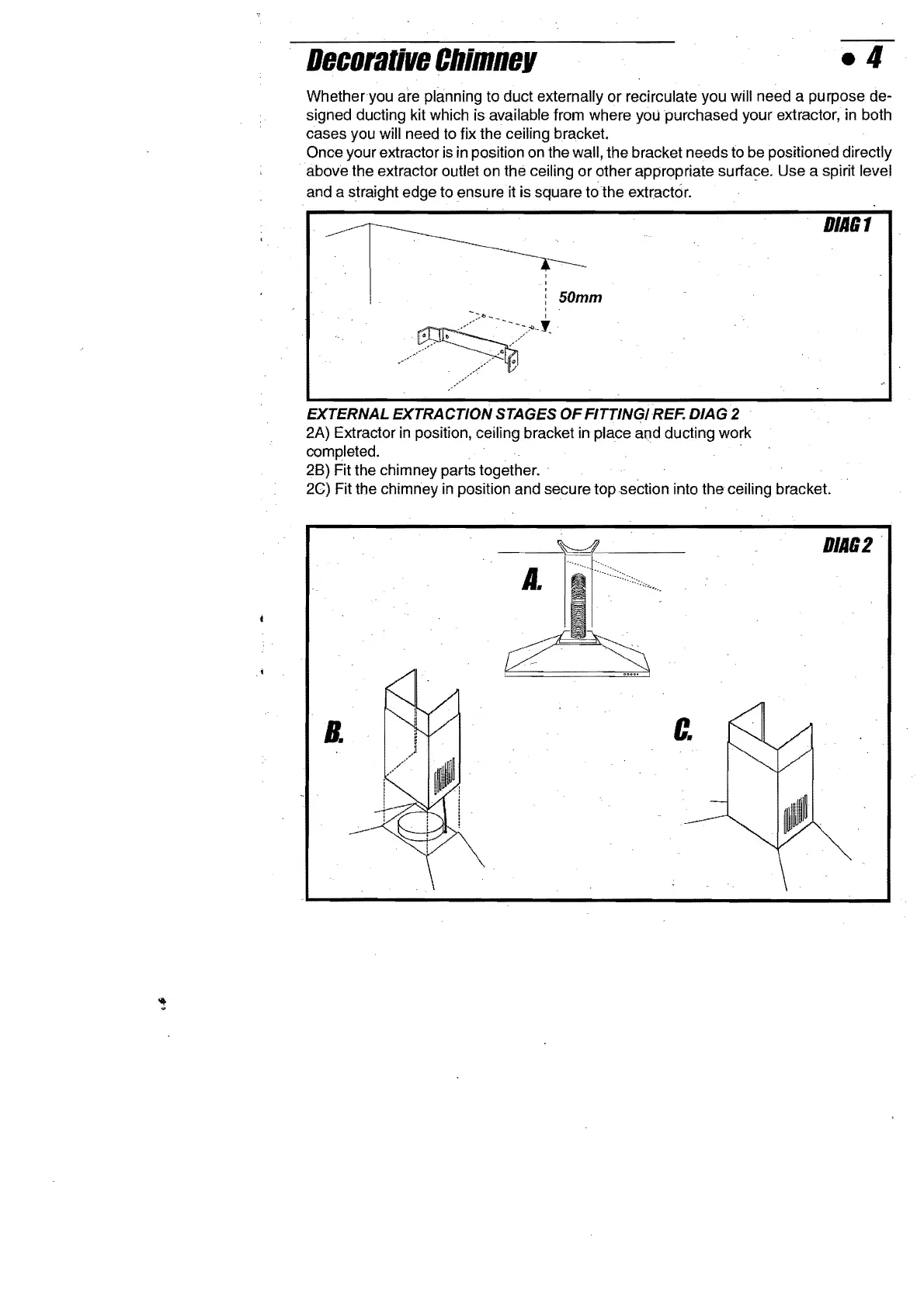

EXTERNAL EXTRACTION STAGES
OFFITTING/REF. DlAG 2
2A) Extractor in position, ceiling bracket
in
place a{ld ducting work
completed.
28)
Fit the chimney parts together.
2C) Fit the chimney in position and secure top section into the ceiling bracket.
BIA62·
II.
c.
B.
