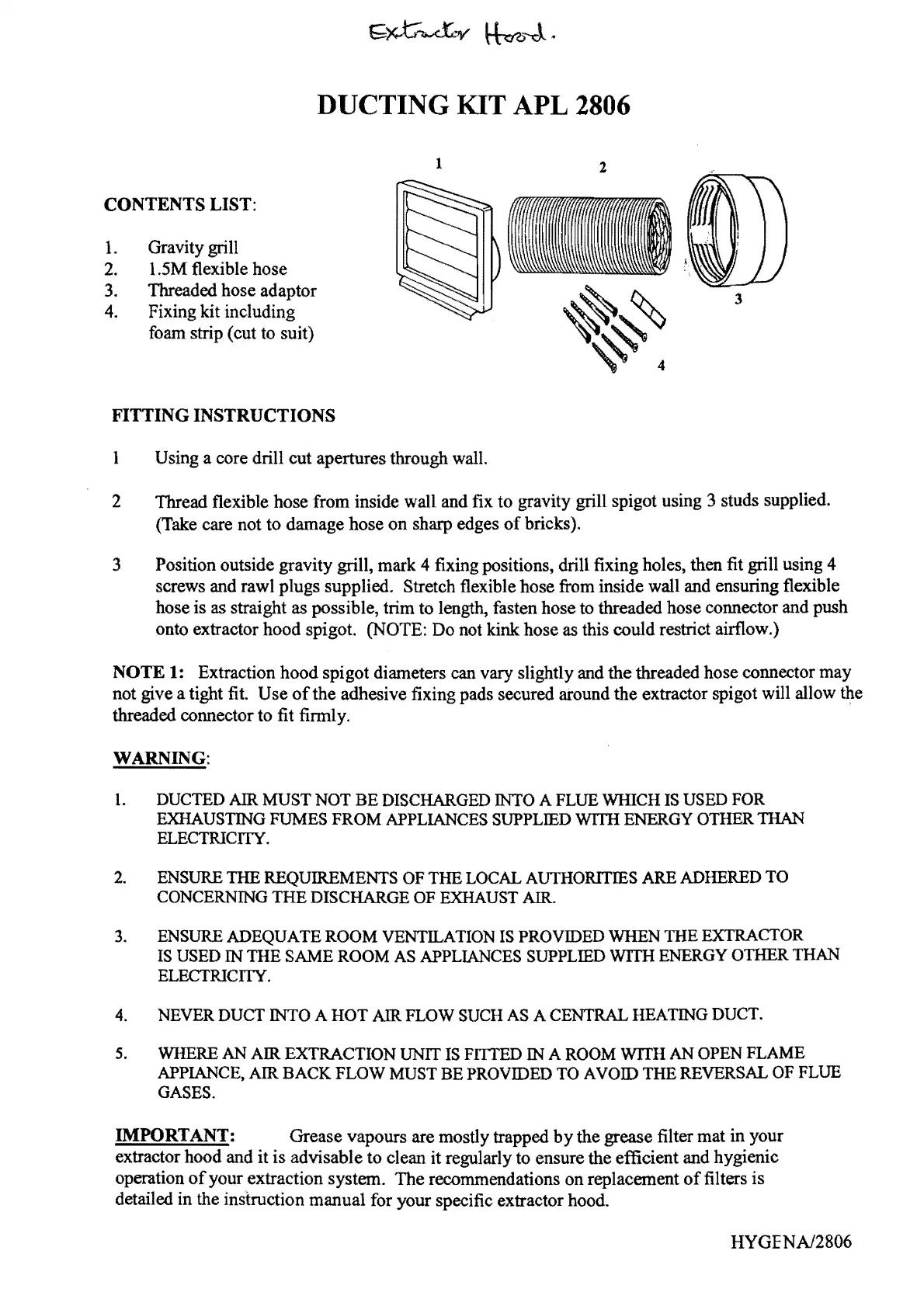

DUCTING KIT APL 2806
CONTENTS
LIST:
1.
Gravity grill
2. 1.5M flexible hose
3.
Threaded hose adaptor
4.
Fixing kit including
foam strip (cut to suit)
1
2
3
FITTING
INSTRUCTIONS
1 Using a core drill cut apertures through wall.
2 Thread flexible hose from inside wall and fix to gravity grill spigot using 3 studs supplied.
(Take care not to damage hose on sharp edges
of
bricks).
3 Position outside gravity grill, mark 4 fixing positions, drill fixing holes, then fit grill using 4
screws and rawl plugs supplied. Stretch flexible hose from inside wall and ensuring flexible
hose is as straight as possible, trim to length, fasten hose to threaded hose connector and push
onto extractor hood spigot. (NOTE: Do not
kink hose as this could restrict airflow.)
NOTE
1: Extraction hood spigot diameters can vary slightly and the threaded hose connector may
not give a tight fit. Use
of
the adhesive fixing pads secured around the extractor spigot will allow the
threaded connector to fit finnly.
WARNING:
1.
DUCTED AIR
MUST
NOT
BE
DISCHARGED INTO A FLUE WHICH IS USED FOR
EXHAUSTING FUMES
FROM
APPLIANCES SUPPLIED WITH ENERGY OTHER
TIlAN
ELECTRICTIY.
2.
ENSURE
THE
REQUIREMENTS OF
THE
LOCAL AUTHORITIES ARE ADHERED
TO
CONCERNING
THE
DISCHARGE
OF
EXHAUST AIR.
3.
ENSURE ADEQUATE
ROOM
VENTILATION IS PROVIDED
WHEN
THE
EXTRACTOR
IS USED IN
THE
SAME
ROOM AS APPLIANCES SUPPLIED WITH ENERGY OTHER THAN
ELECTRICTIY.
4. NEVER DUCT INTO A
HOT
AIR
FLOW
SUCH AS A CENTRAL HEATING DUCT.
5.
WHERE AN
AIR
EXTRACTION UNIT IS
FmED
IN A ROOM WITH AN OPEN FLAME
APPIANCE. AIR
BACK
FLOW
MUST
BE
PROVIDED
TO
AVOID
THE
REVERSAL OF FLUE
GASES.
IMPORTANT:
Grease vapours are mostly trapped
by
the grease filter mat in your
extractor hood and it is advisable to clean it regularly to ensure the efficient and hygienic
operation
of
your extraction system. The recommendations on replacement
of
filters is
detailed in the instruction manual for your specific extractor hood.
HYGENN2806
