-5
Decorative

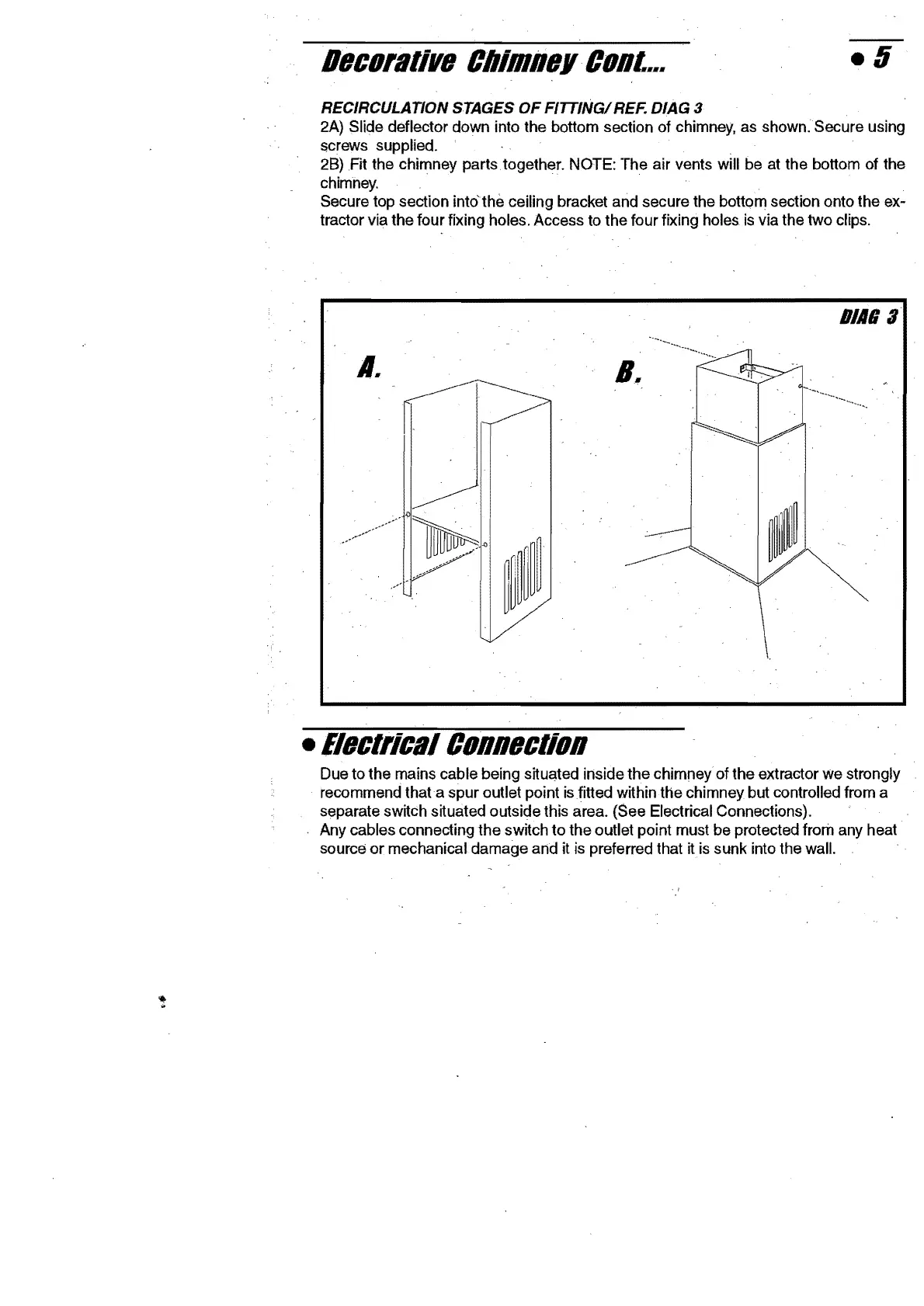

ChiDlney·ConL
...
RECIRCULATION
STAGES
OF
FITTING/
REF.
DIAG
3
2A) Slide deflector down into the bottom section of chimney, as shown. Secure using
screws supplied.
2B)
Fit
the chimney parts together. NOTE: The air vents will be at the bottom of the
chimney.
Secure top section into'the ceiling bracket and secure the bottom section onto the ex-
tractor via the four fixing holes. Access to the four fixing holes
is
via the two clips.
BIAGa
A.
8.
-llectriclIl
Connection
Due to the mains cable being situated inside
the
chimney of the extractor
We
strongly
recommend that a spur outlet point
isfitted
within the chimney but controlled from a
separate switch situated outside this area. (See Electrical Connections).
Any cables connecting
the
switch
to
the outlet point must be protected from any heat
source
or
mechanical damage and it is preferred that it is sunk into the wall.
