Diagram 5
7-8mm
Drilling
Starting Points
Use the spirit level to
adjust the position
3551/1SF56 Low cost screw on level1:1SF56
The Installation Procedure
1. Securing the Hypervolt on the Wall
Hypervolt Limited, Unit 17, Innovation Business Centre, Rainham, RM13 8HZ, UK 6
Revision 1. Issue date: Feb. 2020

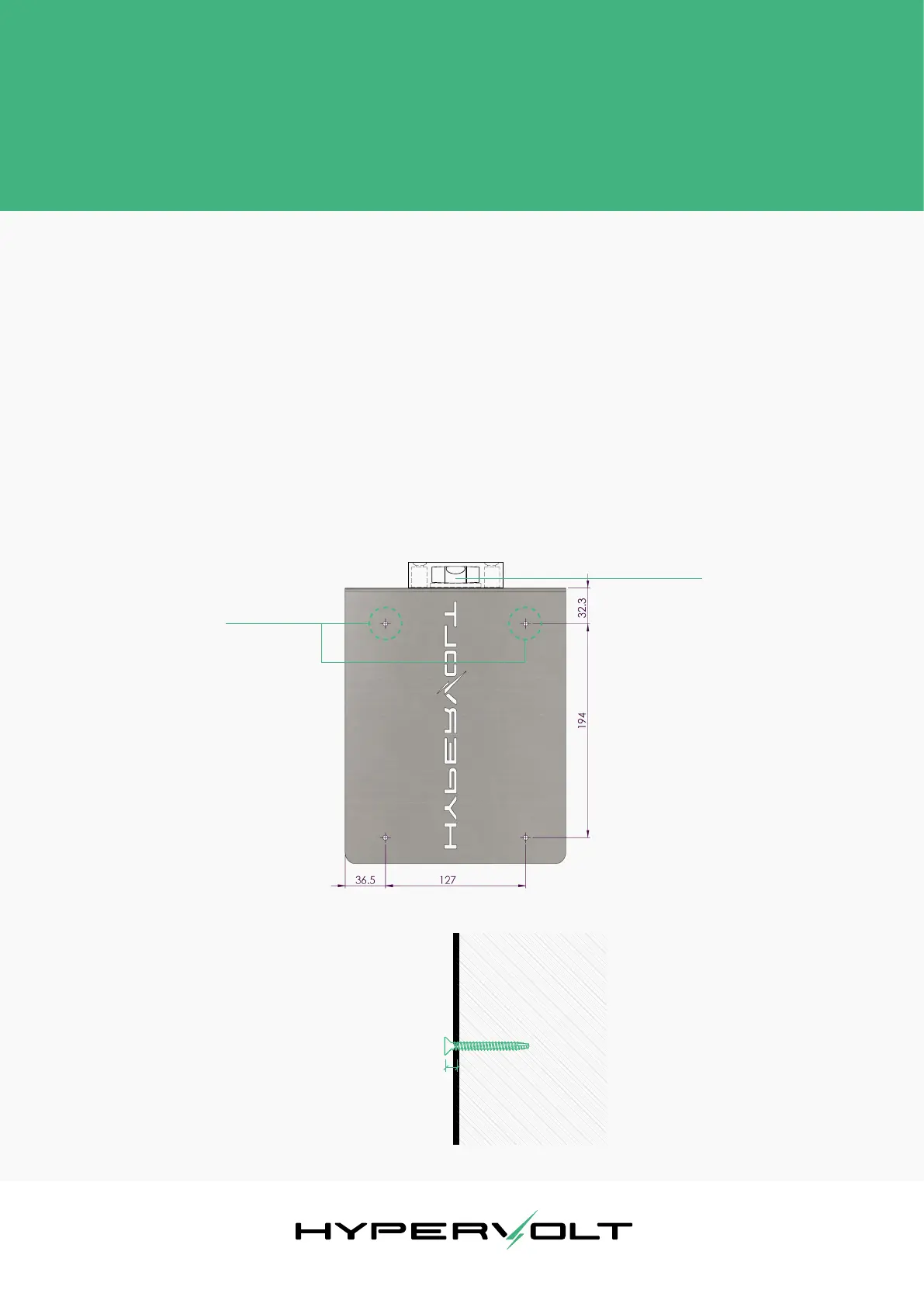

Using the drilling template and integrated spirit level
provided in your kit, drill the holes to an appropriate length
and diameter suitable for the xing you are going to use.
Screw in the top 2 mounting screws into their holes. Leave
approximately 7-8mm from the surface of the wall. Refer to
Diagram 5.
