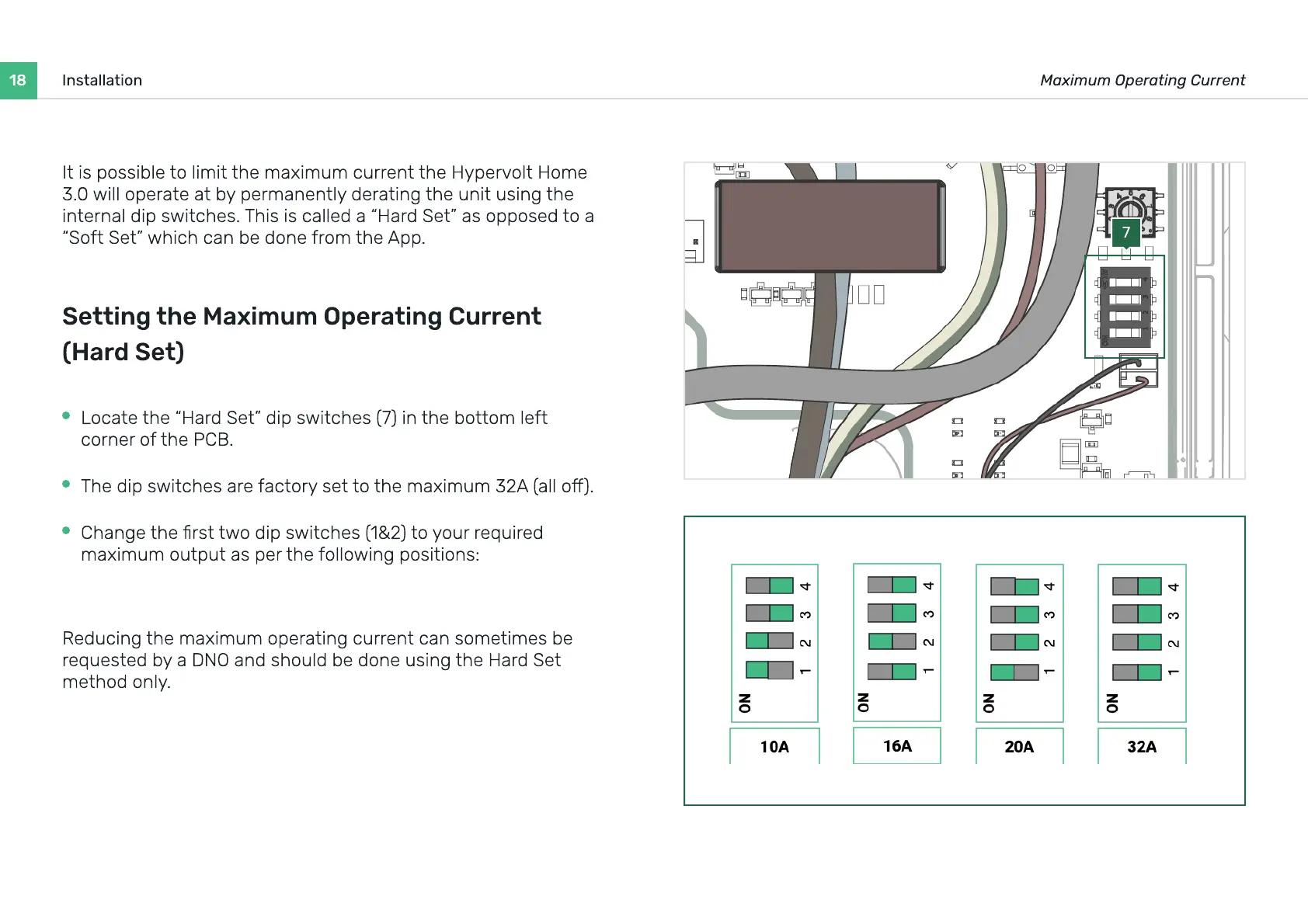

18 Installation Maximum Operating Current
Setting the Maximum Operating Current
(Hard Set)
Locate the “Hard Set” dip switches (7) in the bottom left
corner of the PCB.
The dip switches are factory set to the maximum 32A (all o).
Change the rst two dip switches (1&2) to your required
maximum output as per the following positions:
Reducing the maximum operating current can sometimes be
requested by a DNO and should be done using the Hard Set
method only.
It is possible to limit the maximum current the Hypervolt Home
3.0 will operate at by permanently derating the unit using the
internal dip switches. This is called a “Hard Set” as opposed to a
“Soft Set” which can be done from the App.
7
