DSP
AMP
V-0
45°
Installation instruction:
For your own safety: never remove the protective
earth connections. Always connect the FusionAmp to
a power outlet with protective earth. Always
disconnect the FusionAmp if serviced.
The FusionAmp is not airtight. For optimal
performance the module should be installed in a
separate compartment in the speaker cabinet.
All possible conductive parts of the enclosure should
be connected to protective earth. Keep a minimum
clearance of 3 mm to all these possible conductive
parts.
Compartment requirements
The compartment in which the FusionAmp is fitted
should be constructed of V-1 class material.
Additionally, a layer of V-0 class
material should be fitted, on the
inner side of the cabinet, at both
sides of the amplifier module.
A l t e r n a t i v e l y , t h e w h o l e
compartment can be made of V-0 class
m a te r ia l o r b e t t e r . N o t e : t h i s
information is given as guideline only.
For exact measurers, please consult
EN-IEC 62368-1:2014, chapter 6.
Mounting angles
The FusionAmp is designed to be mounted in vertical
or horizontal position. The FusionAmp may be tilted
45° in both direction as depicted.
Vent holes should not be covered
and free convection should not
be blocked.
45°
13
E
B
C
D A
Installation

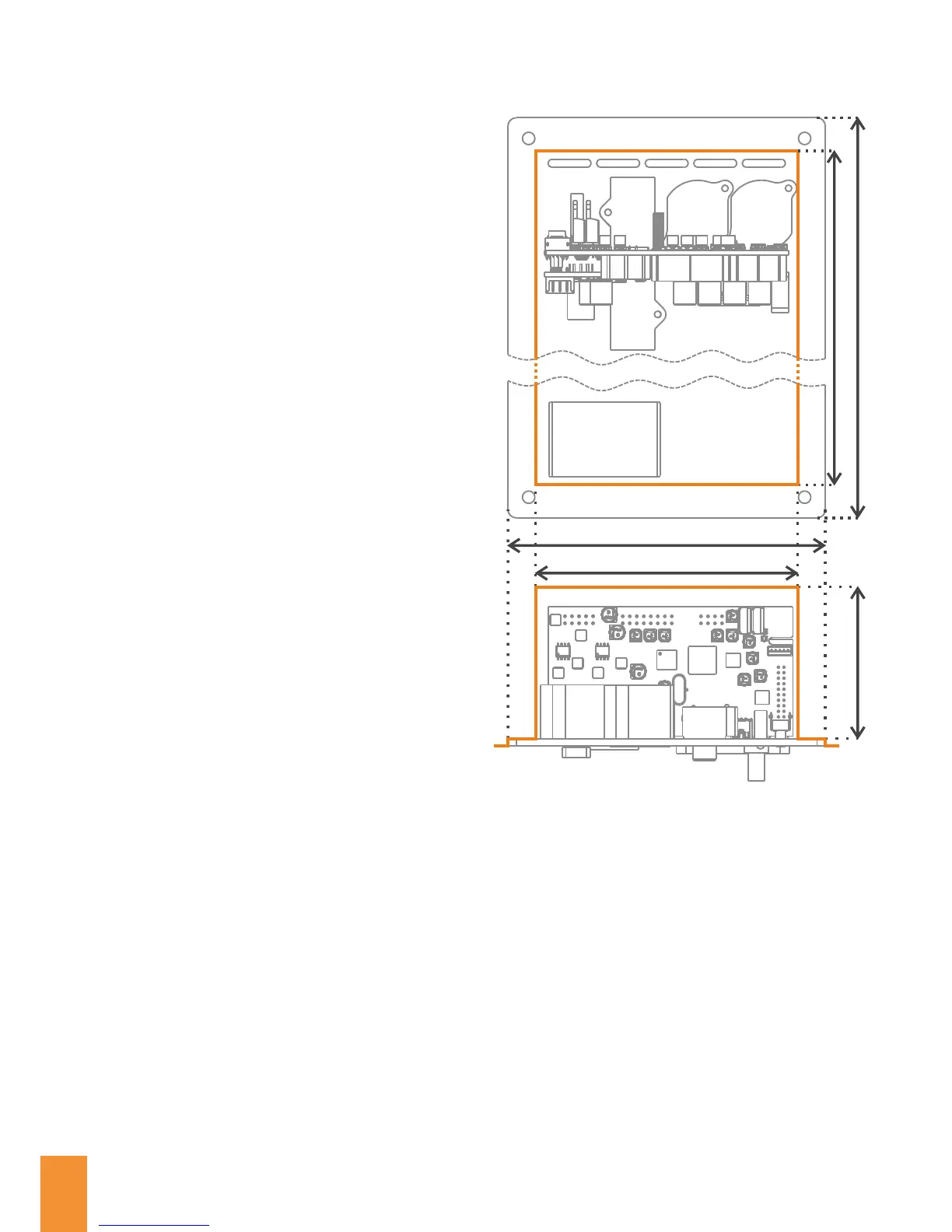

Dimensions:
Size D and E is the recommended milling dimension
for mounting the FusionAmp inside your speaker
cabinet. This leaves 12mm on each side for the
mounting screws.
Weight:
FA122: 815 gr
FA123: 955 gr
FA251: 725 gr
FA252: 1000 gr
FA253: 1145 gr
FA501: 925 gr
FA502: 2150 gr
FA503: 2275 gr
Detailed dimensions are available on our website. We
supply 3D models in .STEP, .ESAM and 3D PDF.
Furthermore, 2D milling and drilling patterns are
available. Please verify all drawings with your model
before you start milling!
