General recommendations
For best performance, Hypex recommends to twist
the speaker wires per channel. Route the speaker
cables in such a way that the cables and connectors
are not stressed. Preferably route the speaker cable
away from the module, especially the power supply
part.
One-way model
The speakers must be connected using the included
cable assembly. Connect to J5 on the main module.
If one woofer is connected, one can remove wire 1
and 2, or bi-wire the speaker by combining wire 1-3
and 2-4.
Two-way model
The speakers must be connected using the included
cable assembly. Connect to J5 on the main module.
Single ended:
Ch1: Red(+) / Black(-), Ch2: Blue(+) / Gray(-).
BTL:
For BTL, the second channel needs to be inverted
using HFD. Connect the woofer between red / blue
(inv).
15
Connecting speakers
Three-way model
Connect the main amplifiers in the same way as the
two-way model. Additionally connect the third
channel using the included cable assembly. This main
module can also be configured as BTL.
Tweeter channel:
By design, Ncore and thus the NC100HF, has a full
range frequency response and power bandwidth.
However the NC100HF module is designed to be used
for mid- and high frequencies, i.e. starting at
approximately 500Hz. One must make sure that the
applied filter suppresses frequencies below 500Hz.

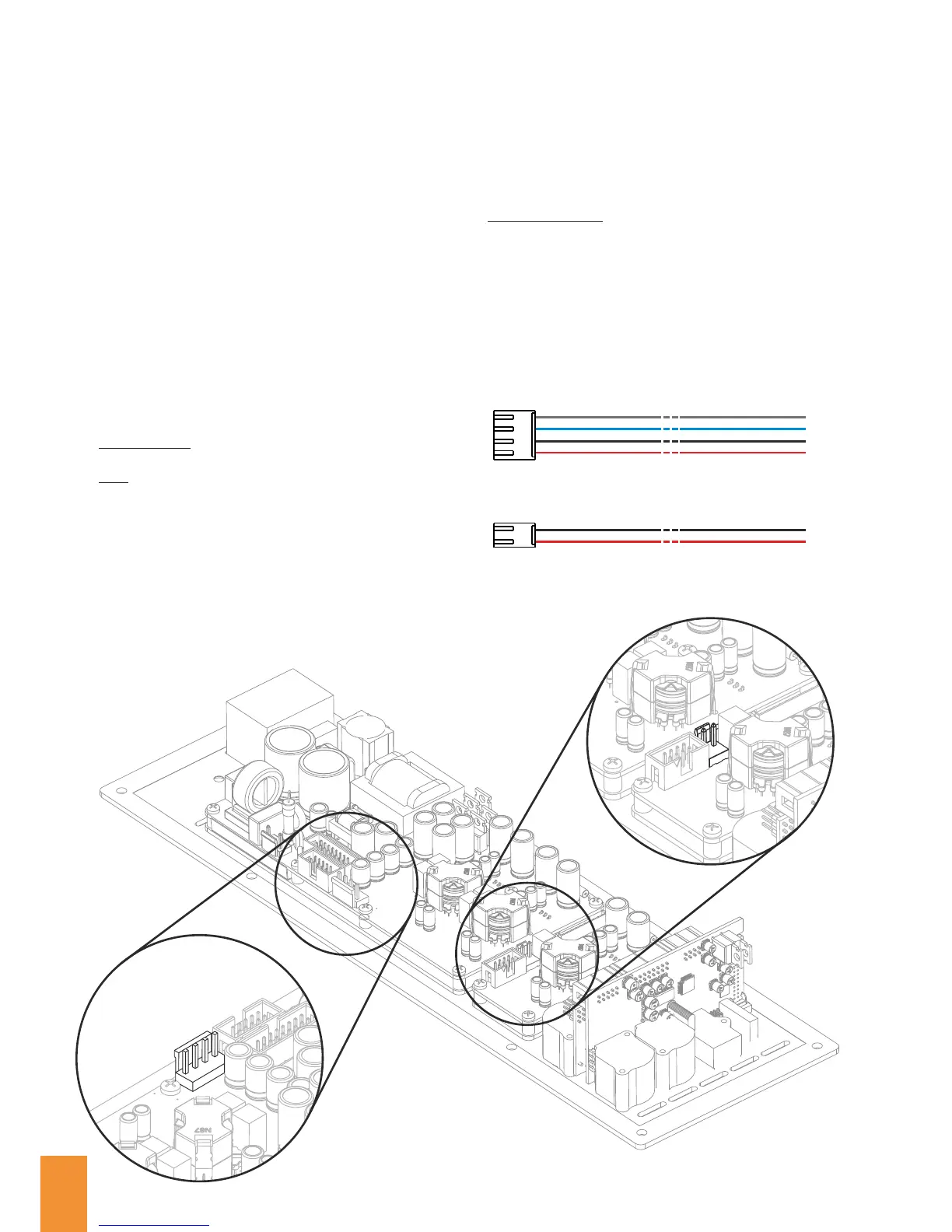

Cable part#: Z4A125L1
2
125cm, 2.5mm speaker connection cable, included in
all models:
Cable part#: Z2A125L1
2
125cm,1.5mm included in three-way model:
Main module J5: one- and two-way models
Extension J5: three-way models
1
4
red
black
blue
gray
1
red
black
2
14
