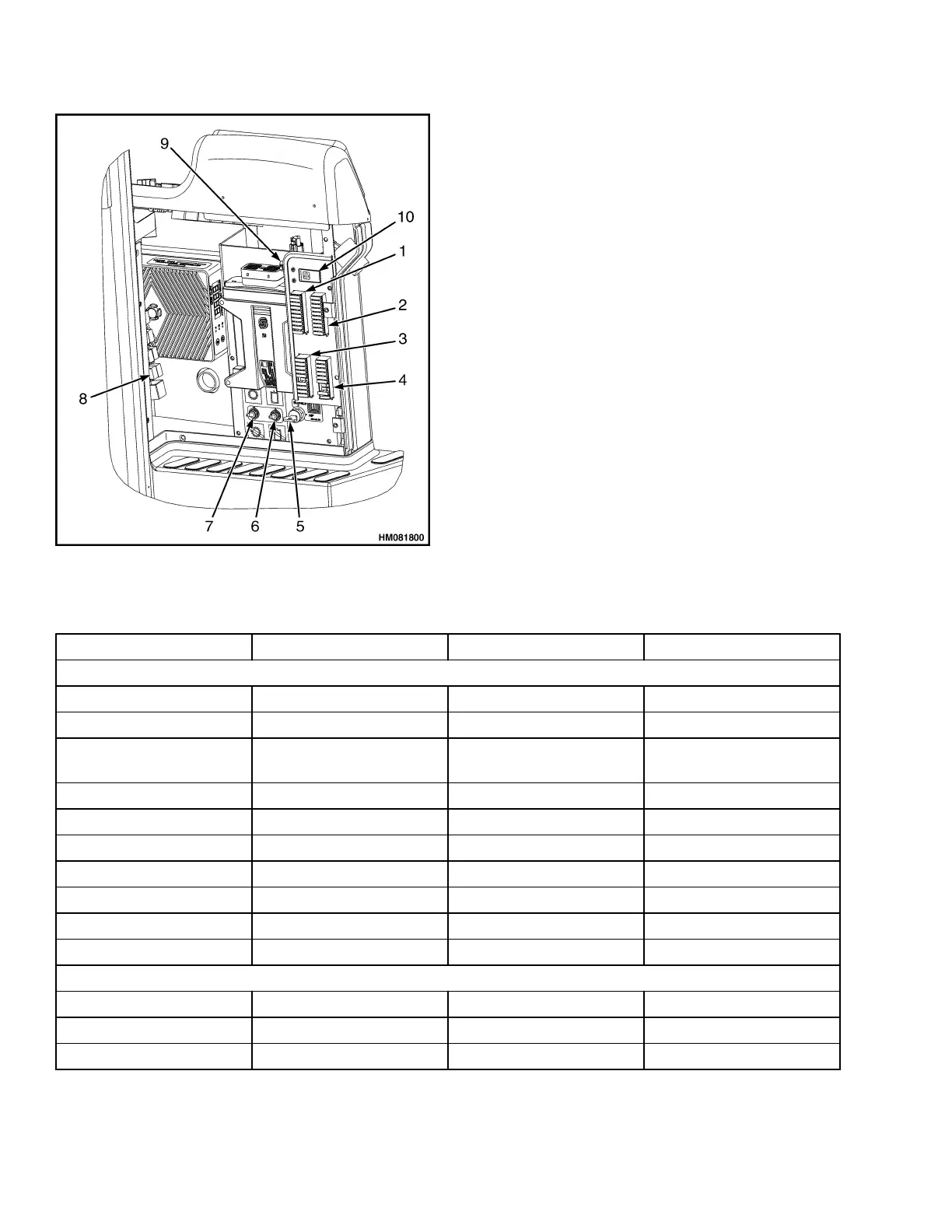

Figure 4. Fuse Panel, Hydraulic Controller and
Hydraulic Relays
Legend for Figure 4
1. FUSE PANEL 1
2. FUSE PANEL 2
3. FUSE PANEL 3
4. FUSE PANEL 4
5. ECO-ELO SWITCH
6. HYDRAULIC SERVICE SWITCH
7. TRANSMISSION CALIBRATION SWITCH
8. RELAY PANEL (SEE FIGURE 5)
9. DIAGNOSTIC PLUG
10. REGENERATION CONTROL SWITCH
Table 6. Fuse Panel Overview
Fuse Description Value Location
Fuse Panel 1
F1 Engine Start 30A [25,B]
F2 ECM Ignition 5A [30,F]
F3 Low Brake Pressure
Warning
5A [28,F]
F4 Transmission 7.5A [28,F]
F5 Transmission B+ 7.5A [63,C]
F6 Hydraulic Controller 30A [137,E]
F7 Attachment Controls 15A [144,A]
F8 Park Brake Solenoid 5A [122,A]
F9 Instrumentation 10A [119,B]
F10 Alternator On 5A [33,A]
Fuse Panel 2
F11 Flood Lights 30A [77,J]
F12 Strobe Light B+ 5A [70,I]
F13 Brake Lights 10A [81,H]
