Hyster C299 - Page 13

1. MANIFOLD
2. DRIVE AXLE COOLING RETURN HOSE, LEFT
SIDE
3. BRAKE COOLING LINE, LEFT SIDE
4. BRAKE LINE, LEFT SIDE
5. SOCKET HEAD SCREWS
6. CROSS FITTING
7. BRAKE COOLING LINE, RIGHT SIDE
8. BRAKE LINE, RIGHT SIDE
9. DRIVE AXLE COOLING RETURN HOSE, RIGHT
SIDE

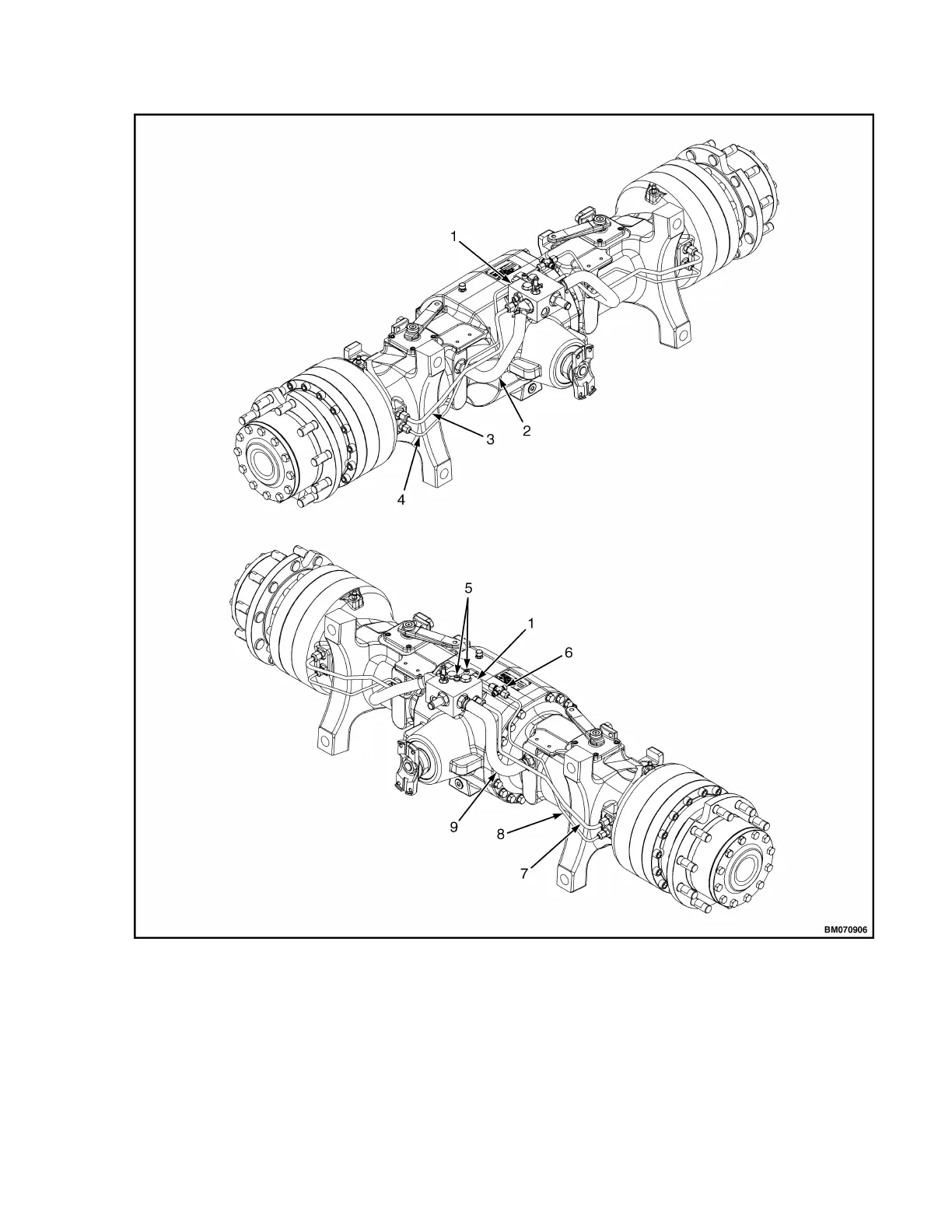

Figure 5. Manifold and Cooling Hoses Removal for Lift Truck Models H6.0FT, H7.0FT (H135FT, H155FT)
(H006, J006, K006, L006)
1400 SRM 1344 Drive Axle Removal
7
