Hyster C299 - Page 19

1. O-RING
2. OIL LEVEL PLUG
3. DRIVE AXLE HOUSING ARM
4. CAPSCREW
5. O-RING
6. RING GEAR
7. WHEEL HUB SUPPORT
8. AXLE SHAFT
9. SOCKET HEAD SCREW
10. SHOULDER RING
11. CAPSCREW
12. WHEEL STUD
13. BEARING
14. WHEEL HUB
15. BEARING
16. SEAL
17. CAPSCREW
18. OUTER AXLE SHAFT
19. O-RING
20. PLANETARY GEAR CARRIER
21. CENTERING RING
22. RETAINING SCREW
23. SUN GEAR
24. DRAIN PLUG
25. RETAINING RING
26. PLANETARY GEAR

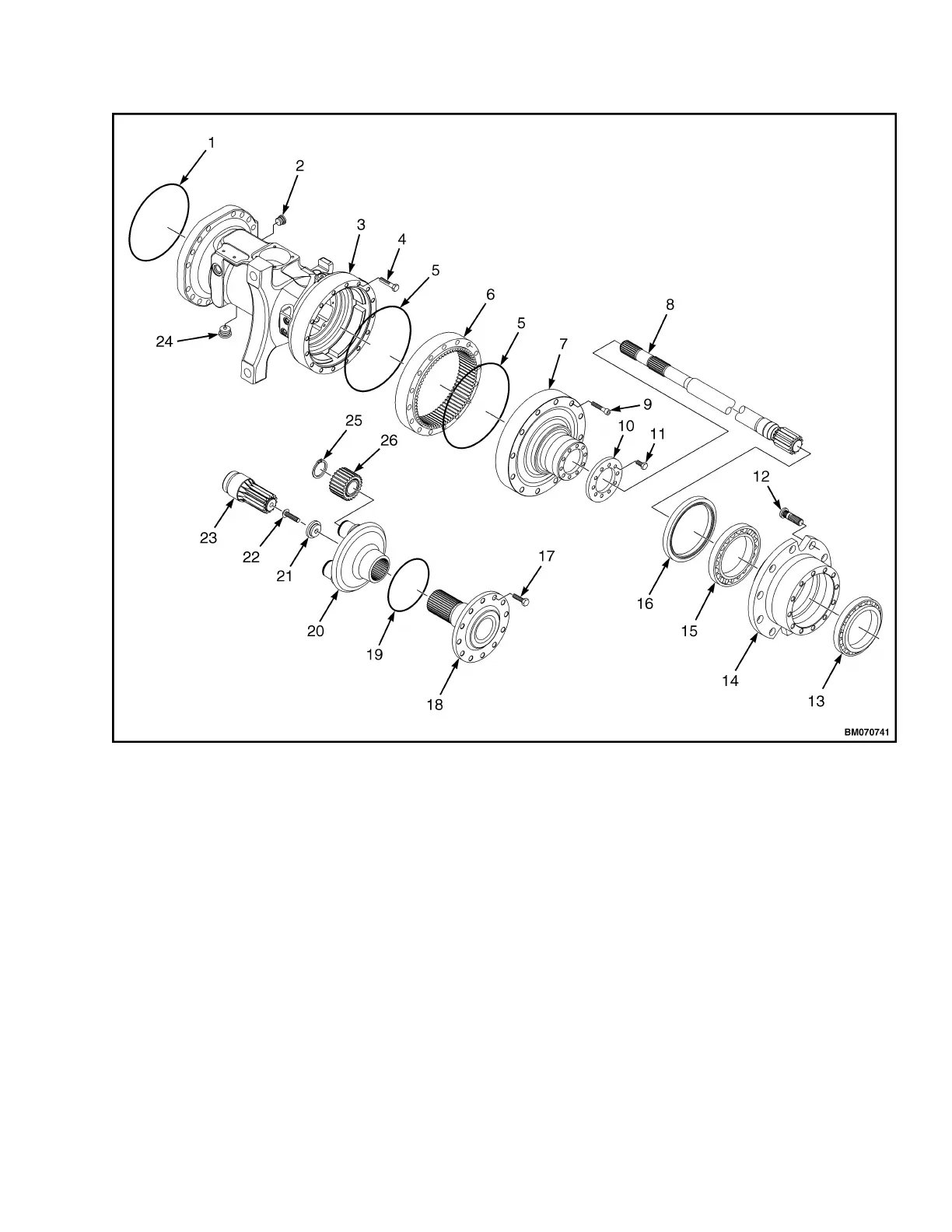

Figure 9. Planetary Reduction Gear Assembly for Lift Truck Models H6.0FT, H7.0FT (H135FT, H155FT)
(H006, J006, K006, L006)
1400 SRM 1344 Planetary Reduction Gear Repair
