Hyster C299 - Page 20

1. AXLE CASE - LH
2. O-RING
3. HEXAGON BOLT
4. RING GEAR
5. CAPSCREW
6. SEAL
7. INNER BEARING
8. WHEEL HUB
9. WHEEL STUD
10. WHEEL HUB SUPPORT
11. BEARING
12. SHOULDER RING
13. OUTER AXLE SHAFT
14. RETAINING RING
15. PLANETARY GEAR
16. SUN GEAR
17. CENTERING RING
18. PLANETARY GEAR CARRIER
19. PLUG
20. MAGNET PLUG
21. HALF SHAFT - SHORT OR LONG
22. AXLE CASE - RH
23. SOCKET HEAD SCREW
24. RETAINING SCREW
25. CAPSCREW
26. OUTER BEARING

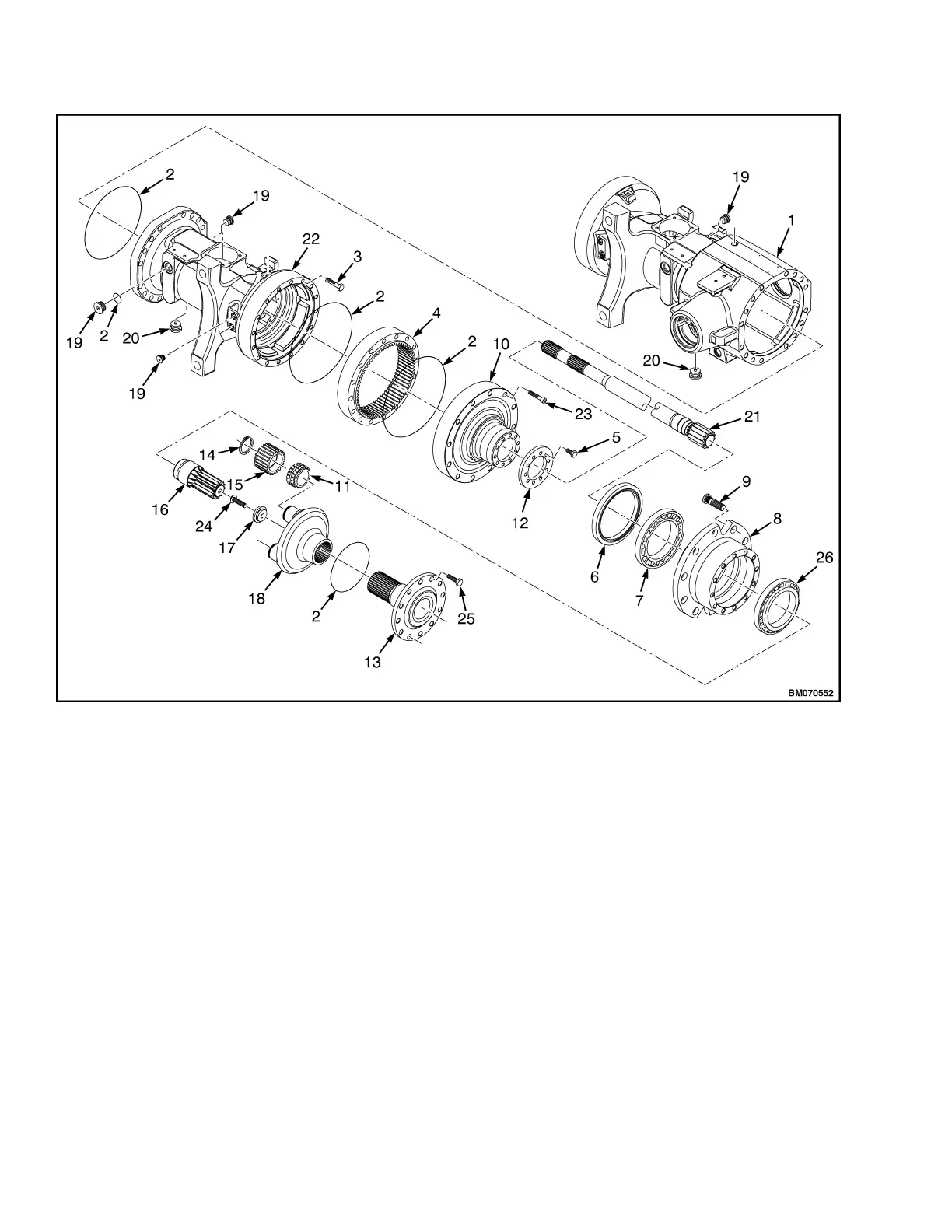

Figure 10. Planetary Reduction Gear Assembly for Lift Truck Model H8.0FT, H8.0FT9, H9.0FT (H170FT,
H175FT36, H190FT) (A299, B299, C299)
Planetary Reduction Gear Repair 1400 SRM 1344
