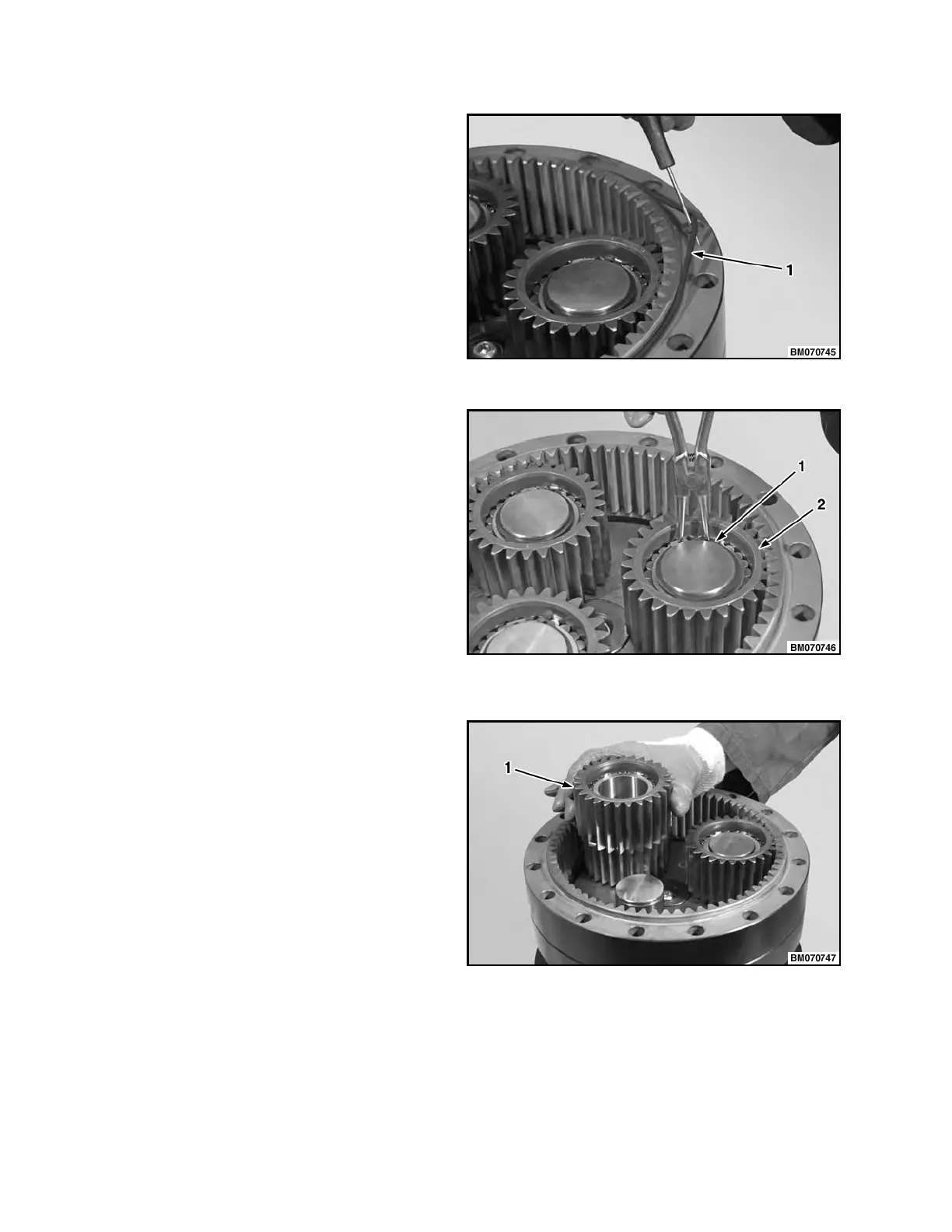

STEP 4.
Remove and discard the O-ring from the planetary
carrier assembly.
1. O-RING
STEP 5.
Remove the retaining rings retaining the plane-
tary gears.
1. RETAINING RING
2. PLANETARY GEAR
STEP 6.
Remove the planetary gear and bearing assem-
blies.
1. PLANETARY GEAR AND BEARING ASSEMBLY
Planetary Reduction Gear Repair 1400 SRM 1344
16
