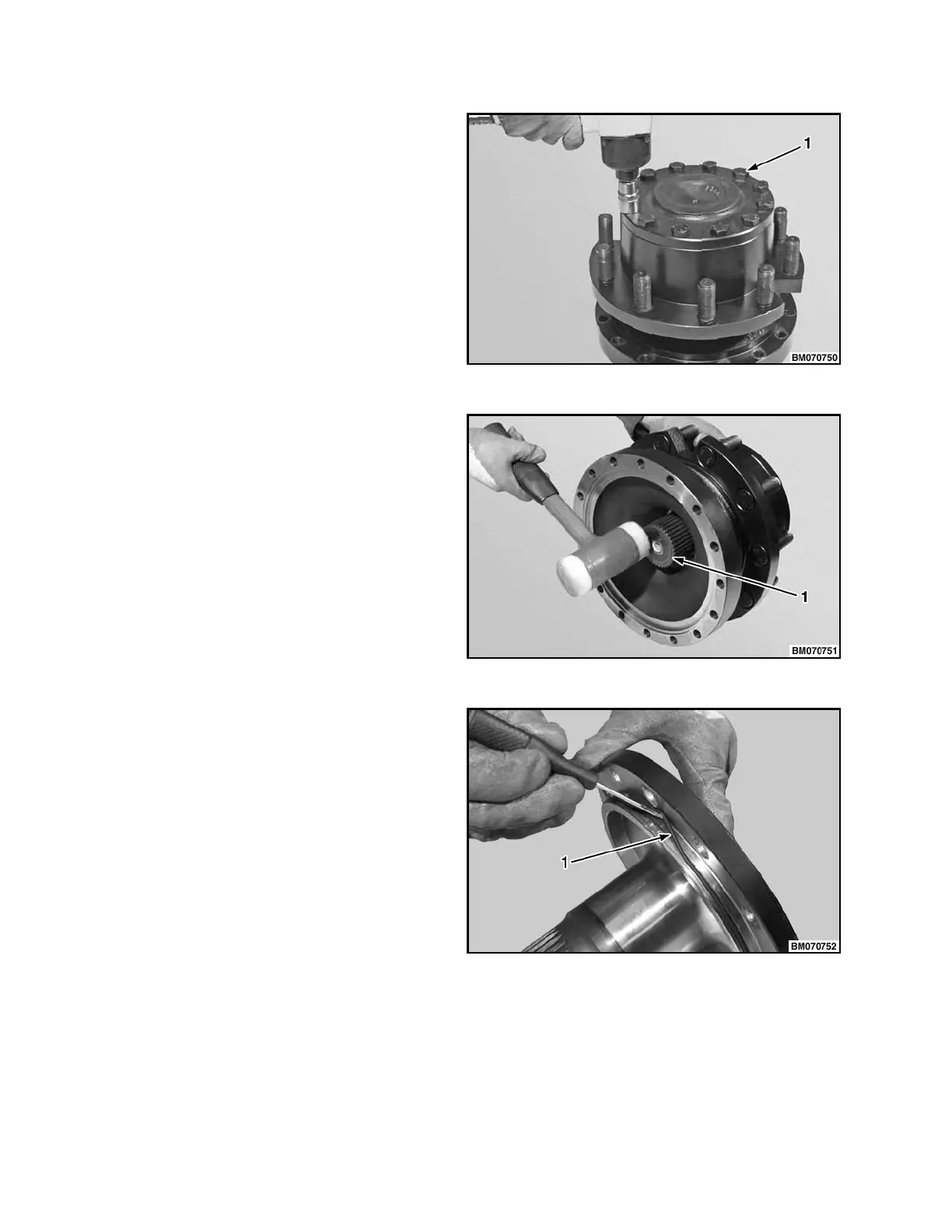

STEP 10.
Place the reduction gear assembly upside down.
Remove the capscrews retaining the outer axle
shaft to the wheel hub.
1. CAPSCREW
STEP 11.
Using a plastic hammer, tap the outer axle shaft
out of the wheel hub support and wheel hub.
1. OUTER AXLE SHAFT
STEP 12.
Remove and discard the O-ring from the outer
axle shaft.
1. O-RING
Planetary Reduction Gear Repair 1400 SRM 1344
18
