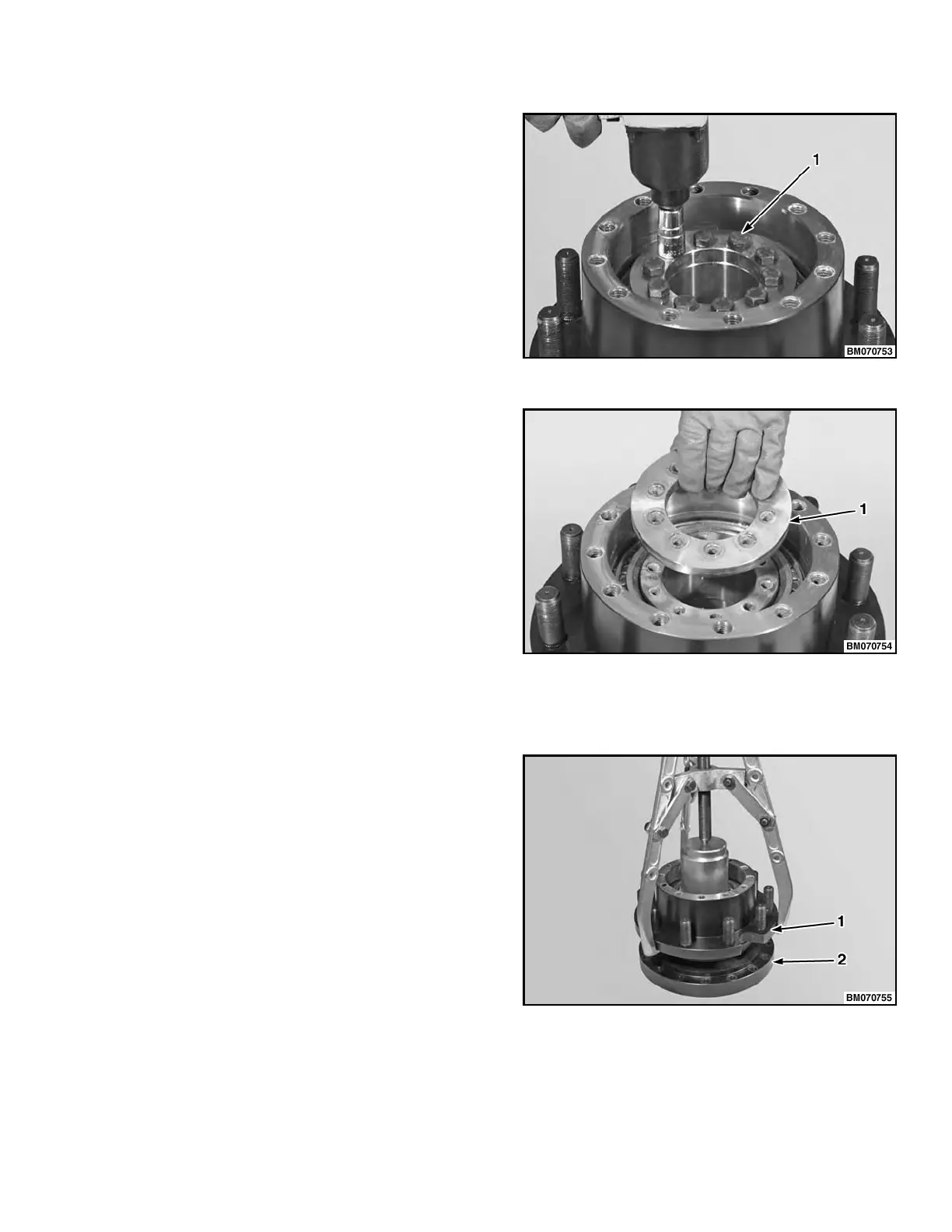

STEP 13.
Remove the capscrews retaining the shoulder
ring.
1. CAPSCREW
STEP 14.
Remove the shoulder ring.
1. SHOULDER RING
NOTE: Use a cylindrical block, with a minimum outside diameter of 99 mm (3.90 in.) and maximum outside
diameter of 118 mm (4.65 in.), for the puller to push against the end of the wheel hub support.
STEP 15.
Using a suitable puller and cylindrical block, dis-
engage the wheel hub support from the wheel
hub.
1. WHEEL HUB
2. WHEEL HUB SUPPORT
