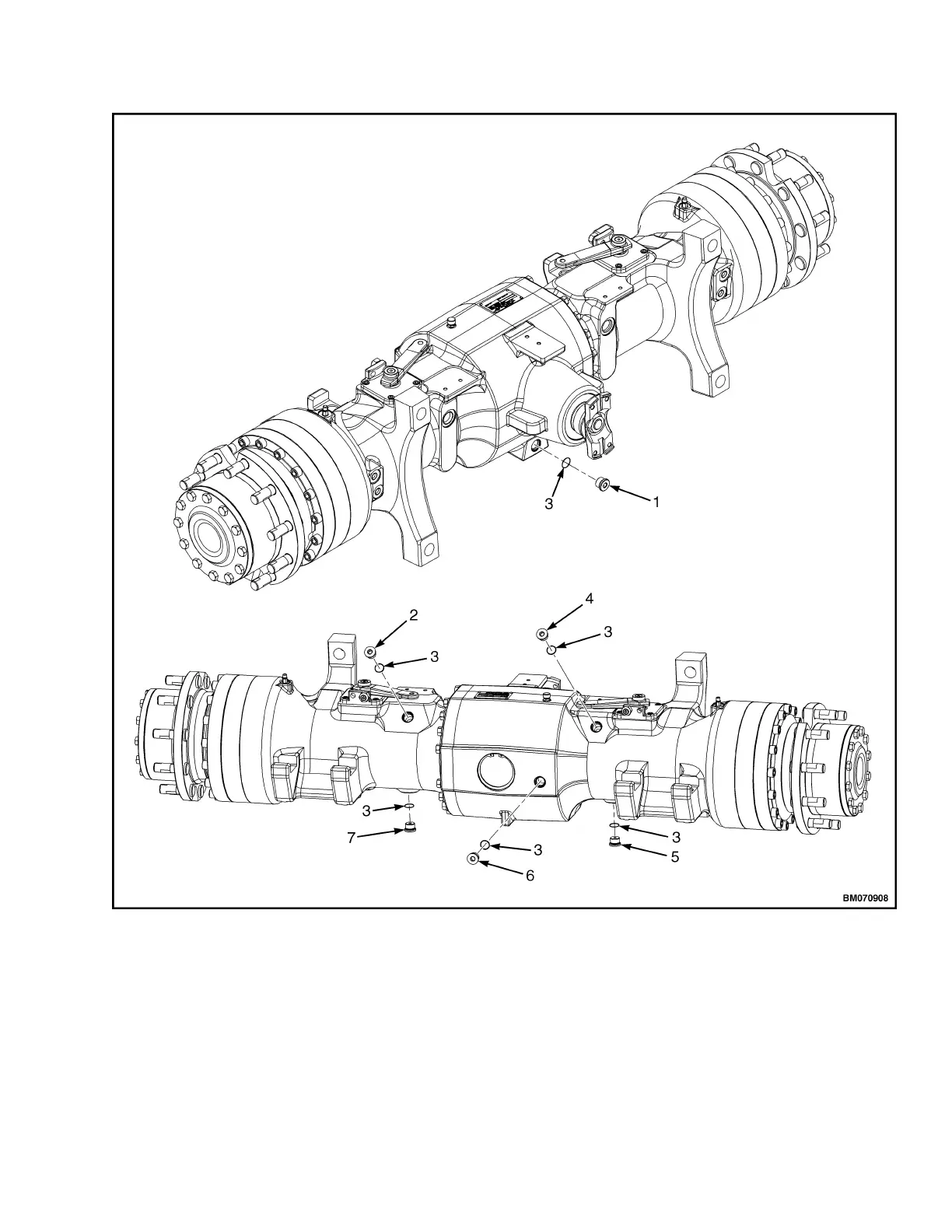

1. DRIVE AXLE MAIN HOUSING CENTER DRAIN
PLUG
2. OIL FILL PLUG, RIGHT SIDE
3. O-RING
4. OIL FILL PLUG, LEFT SIDE
5. OIL DRAIN PLUG, LEFT SIDE
6. DRIVE AXLE MAIN HOUSING CENTER FILL/
LEVEL PLUG
7. OIL DRAIN PLUG, RIGHT SIDE
Figure 2. Drive Axle Drain and Fill/Level Plugs for Lift Truck Models H6.0FT, H7.0FT (H135FT, H155FT)
(H006, J006, K006, L006),
1400 SRM 1344 Drive Axle Removal
3
