Hytera DMR Application Note

Connection and Configuration
Repeater Backup Application Notes
8
4.3 Connecting the Repeater

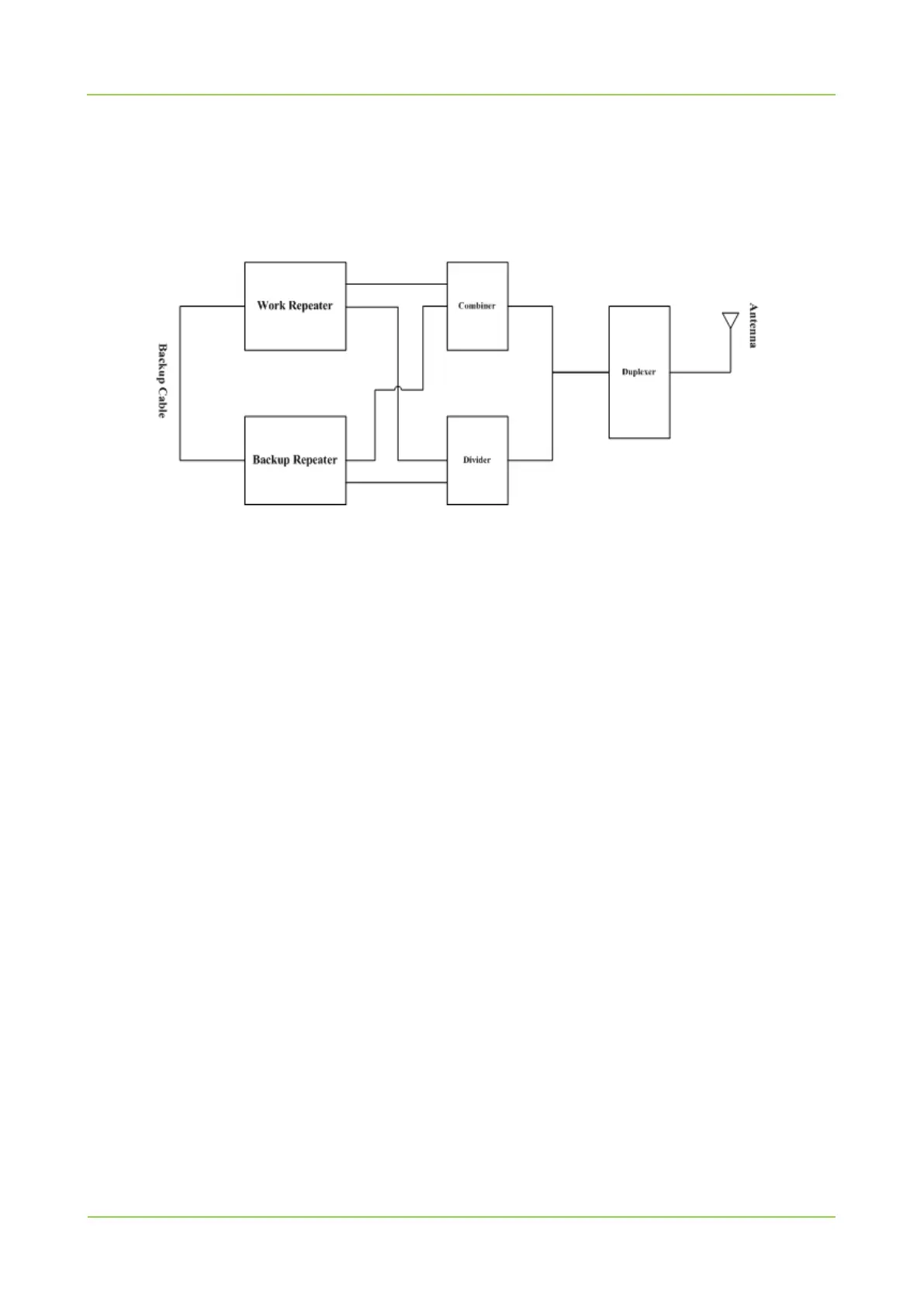

Step 1 Connect the repeater to other equipments such as combiner, divider, duplexer, and antenna, as
shown below.
Step 2 Connect the work repeater to the backup repeater using the backup cable.
Connect one end of the backup cable marked by "Hytera" to the pin of the work repeater, and
the other end of the cable to the pin of the backup repeater.
