Product Layout
HM652
Palm Microphone
You can request your dealer to program the Top Key (TK), P1
key, and P2 key as shortcuts to assignable radio features.

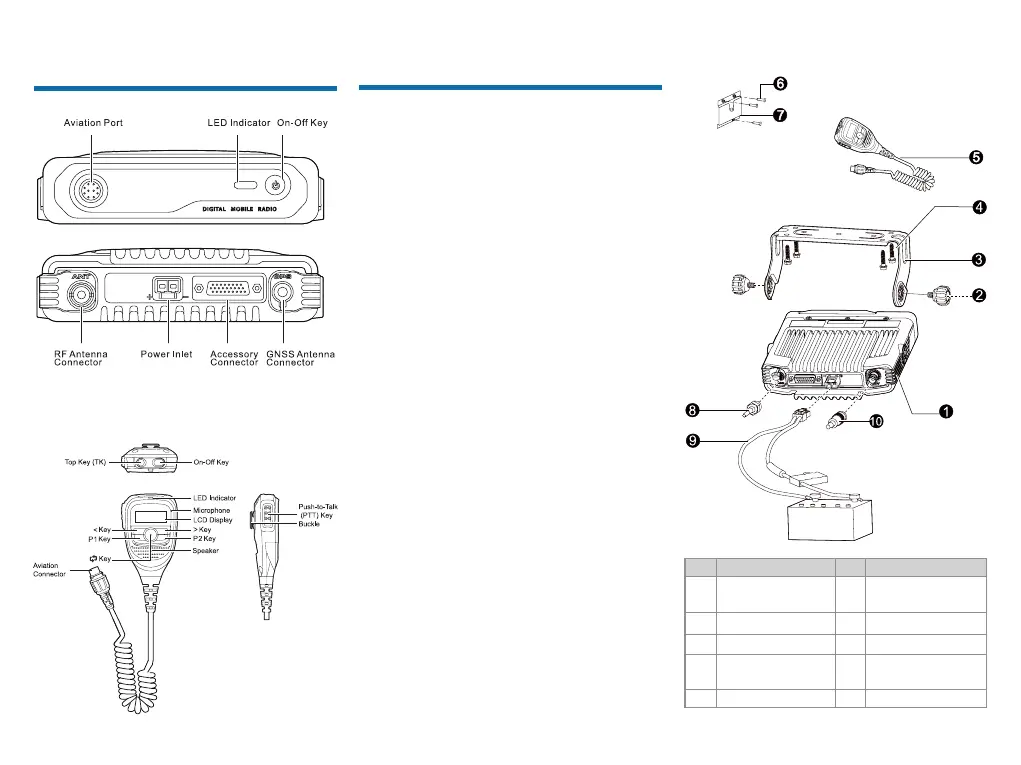

Parts
No. Part Name No. Part Name
1
Radio
6
Self-tapping Screw
(4 mm x 16 mm)
2
Locking Knobs
7
Microphone Hanger
3
Mounting Bracket
8
GNSS Antenna
4
Self-tapping Screw
(4.8 mm x 20 mm)
9
Power Cord (with fuse)
5
Palm Microphone
10
RF Antenna
Installation
Precautions
Before installation, read the following guidelines carefully:
●
Before installation, ensure that the vehicle power supply
has a negative ground with the voltage of 13.6±15% V.
●
Before installation, measure the length of screws
protruding from the radio surface. During installation,
drill the holes on the vehicle according to the screw
length to avoid damaging the vehicle wires or other
components.
●
Use the antenna and power cord approved by the
Company.
●
Use the mounting bracket approved by the Company.
Otherwise, the accidental drop of the radio may injure
people in the vehicle.
●
Install the radio at a position where you can easily reach
the front panel.
●
To facilitate wiring, keep sufcient space at the back of
the radio.
●
When replacing the fuse for the DC power cord, ensure
the new fuse shares the same specication with the old
one.
●
If any other communication devices such as repeaters
are in the vicinity of the radio, keep the antenna of these
devices at least 10 meters away from that of the radio.
