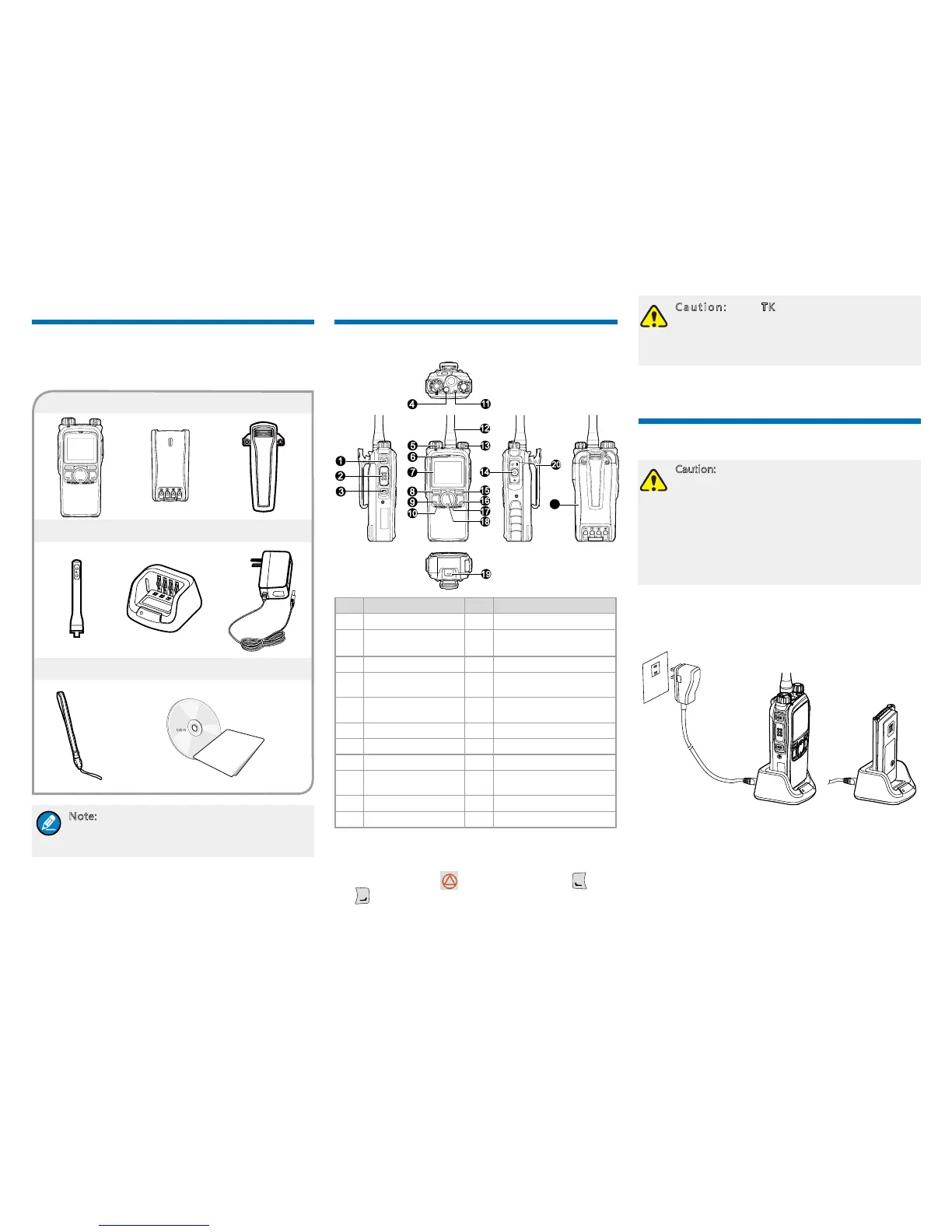

Items in the Package
Please unpack carefully and check that all items listed
below are received. If any item is missing or damaged,
please contact your dealer.
Note: The frequency band is marked on the
label of antenna; if not, please refer to the label
on the radio for frequency band information.
Antenna Charger Power Adapter
Radio Unit Battery Belt Clip
Strap Documentation Kit
Product Overview
Product Control
No. Part Name No. Part Name
1 SK1 (Side Key 1) 12 Antenna
2
PTT (Push-to-
Talk) Key
13
Power On-Off/Volume
Control Knob
3 SK2 (Side Key 2) 14 Accessory connector
4 TK (Top Key) 15
Back/Group Call
Management Key
5
Group Call
Selector knob
16
BackDial/End/Home
Screen Key
6 Microphone 17 Up Key
7 LCD Display 18 Down Key
8 OK/Menu Key 19 Battery Latch
9
Answer/Redial/
Call Key
20 Belt Clip
10 Speaker 21 Battery
11 LED Indicator - -
Programmable Keys
For enhanced convenience, you may request your dealer
to program the TK ( ), SK1, SK2 and P1( ) and
P2( ) as shortcuts to certain functions. Please refer to
the corresponding Feature Book for more details.
Caution: The TK is programmed with
emergency feature by default (short press:
Emergency On; long press: Emergency Off). It
is programmable by your dealer.
Before Use
Charging the Battery
Caution:
●
Make sure the radio is powered off before
charging. Read the Safety Information
Booklet in advance to get necessary safety
information.
●
To achieve optimal battery performance,
please charge the battery for at least 5
hours before initial use.
Please use the charger specified by the Company to
charge the battery. Charging Diagram is listed below.
Charging Status Indication (on charger):
