5-1
GROUP 1 STRUCTURE AND FUNCTION
SECTION 5 STEERING SYSTEM

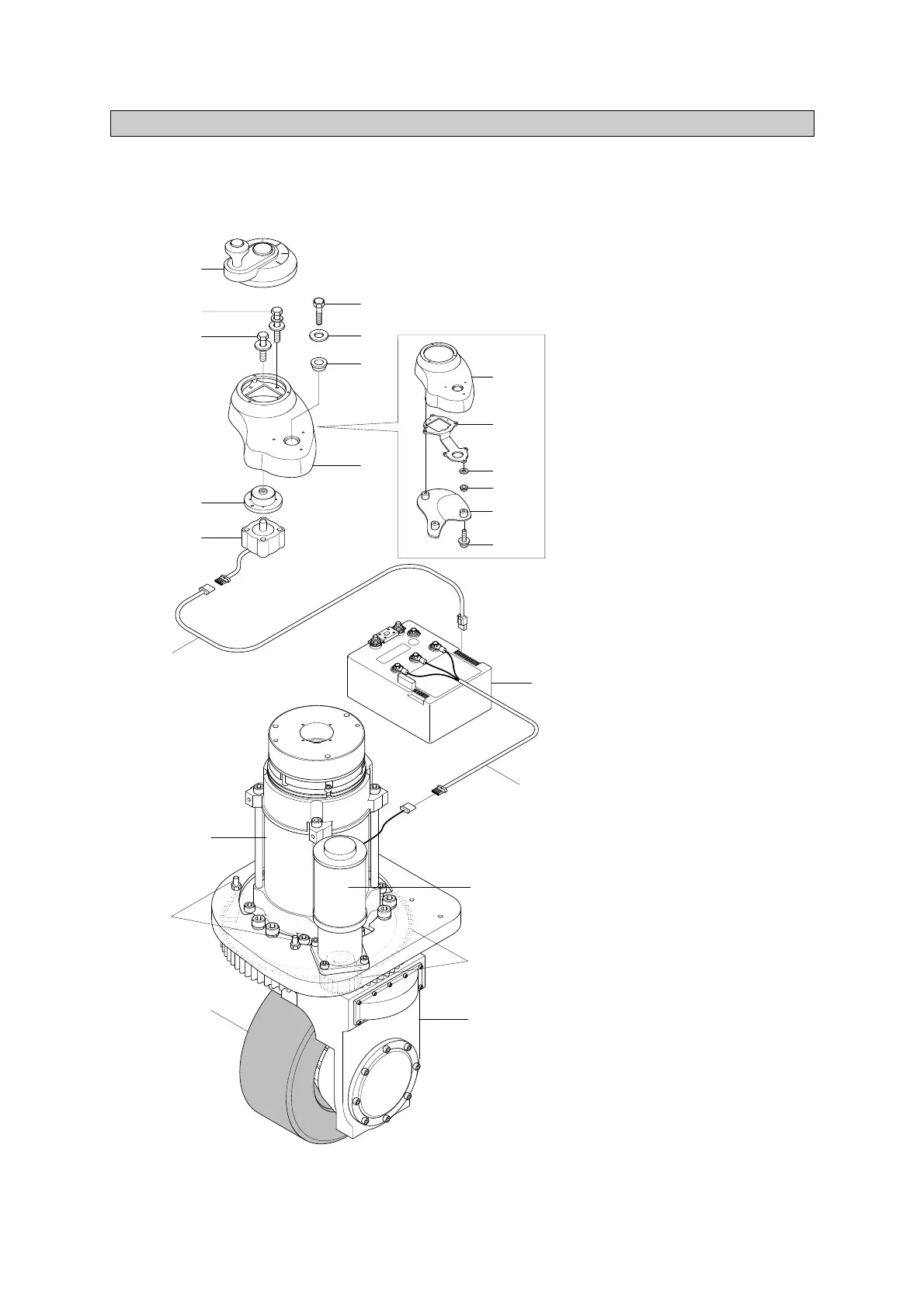

1. STRUCTURE
11
1
12
14
15
16
13
11-5
11-4
11-2
11-1
11-3
11-6
2
3
4
7
5
10
9
6
3
8
17
BRP7SE02
1 Steering wheel
2 Stepping motor
3 Main harness
4 Controller sub assy
5 EPS motor
6 Pinion & steering gear
7 Traction motor
8 Position sensor assy
9 Drive unit
10 Drive tire
11 Steering panel assy
11-1 Steering panel
11-2 Panel bracket
11-3 Panel cover
11-4 Hex nut
11-5 Washer
11-6 Screw
12 With washer bolt
13 With washer bolt
14 Hex bolt
15 Washer
16 Rotation
17 Boss sub assy
