Replace Counterplate

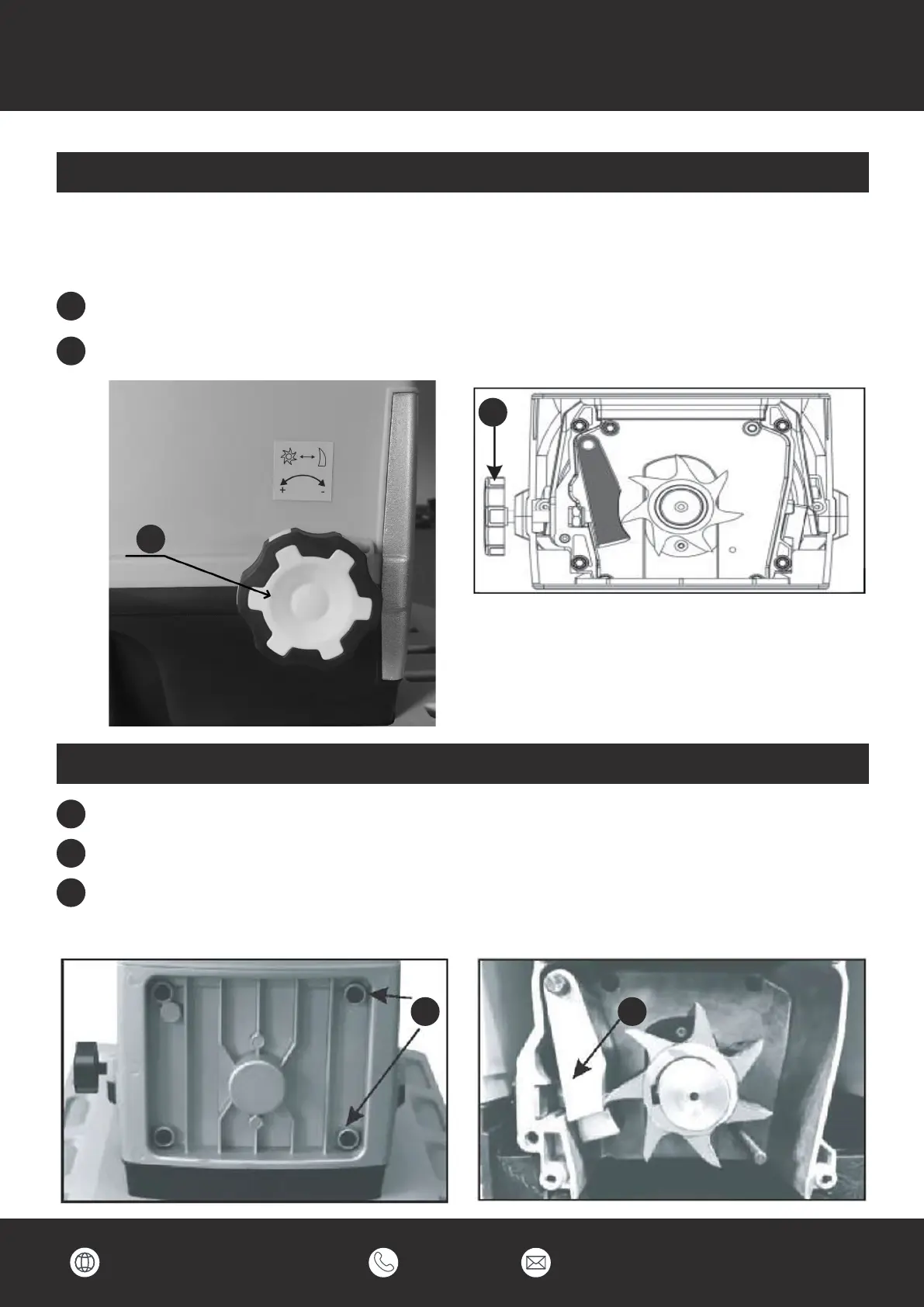

Open the back cover by loosing 4 Screws (A). (Fig. 6A)
1
Take out the Counterplate (B) and replace a new one. (Fig. 6B)
2
Put back the back cover and use wrench to fix the screws.
3
Fig.6A Fig.6B
A B
Adjusting The Counterplate
To obtain an optimum shredding result and prevent damage to the blade, the counterplate must
be adjusted at regular intervals. The counterplate must also be adjusted if so called interlinkage
occurs.
Turn Counterplate Adjusting Knob (A) clockwise until a slight friction noise can be heard and fine
aluminum chips fall from the ejector chute for a short period of time. (Fig. 5A and 5B).
1
Then. the materials to be shredded should be fully cut again.
2
A
A
