20. Replacement Parts - When replacement parts are required, be sure the service technician
has used replacement parts specied by the manufacturer or have the same characteristics
as the original part. Unauthorized substitutions may resultnre,electric shock, or other ha-
zards.
21. Safety Check - Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine thatthe product is in proper operating
condition.
22. Heat - The product should be situated away from heat sources such as radiators, heat
register, stoves, or other products (including ampliers) that produce heat.

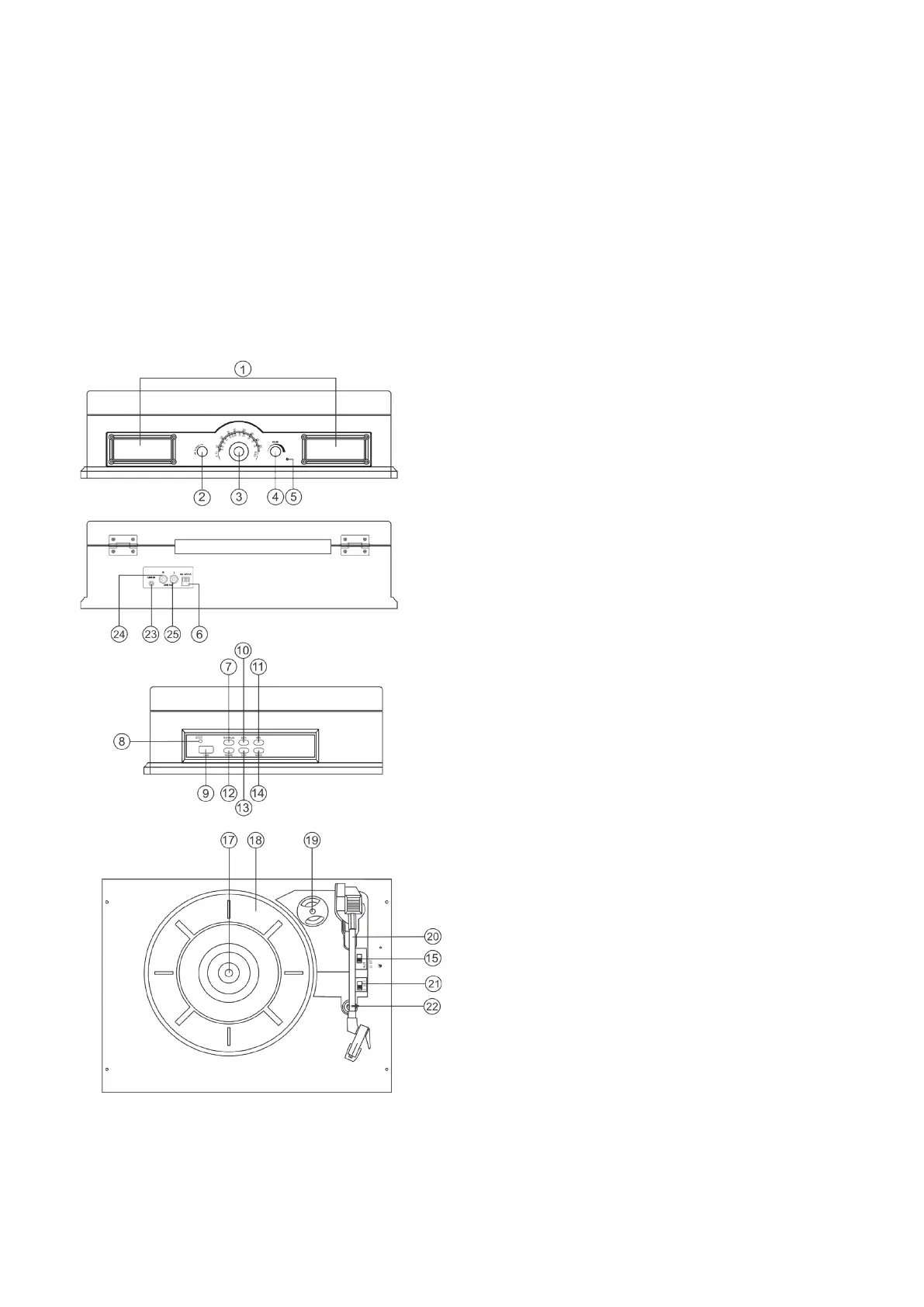

LOCATION OF PARTS
1. Speaker
2. Function switch (AM FM PH/AUX USB) Knob
3. Tuning Knob
4. Volume Control Knob
5. Power Led Indicator
6. DC Input Jack
7. Play/Pause Button
8. Playback/Pause/Recording Light Indicator
9. USB 2.0 Port
10. Back Button
11. Next Button
12. Record Button
13. Stop Button
14. Delete Button
15. AUTO STOP Switch
17. Spindle
18. Turntable
19. Adaptor for 45 rpm records
20. Tone Arm
21. Speed control Switch (33, 45, 78 rpm)
22. Security Hook/Arm Rest
23. Line In
24. RCA line-out jack - right channel
25. RCA line-out jack - left channel
