DO-IT-YOURSELF MAINTENANCE
6-2
G010B01HP-GAT

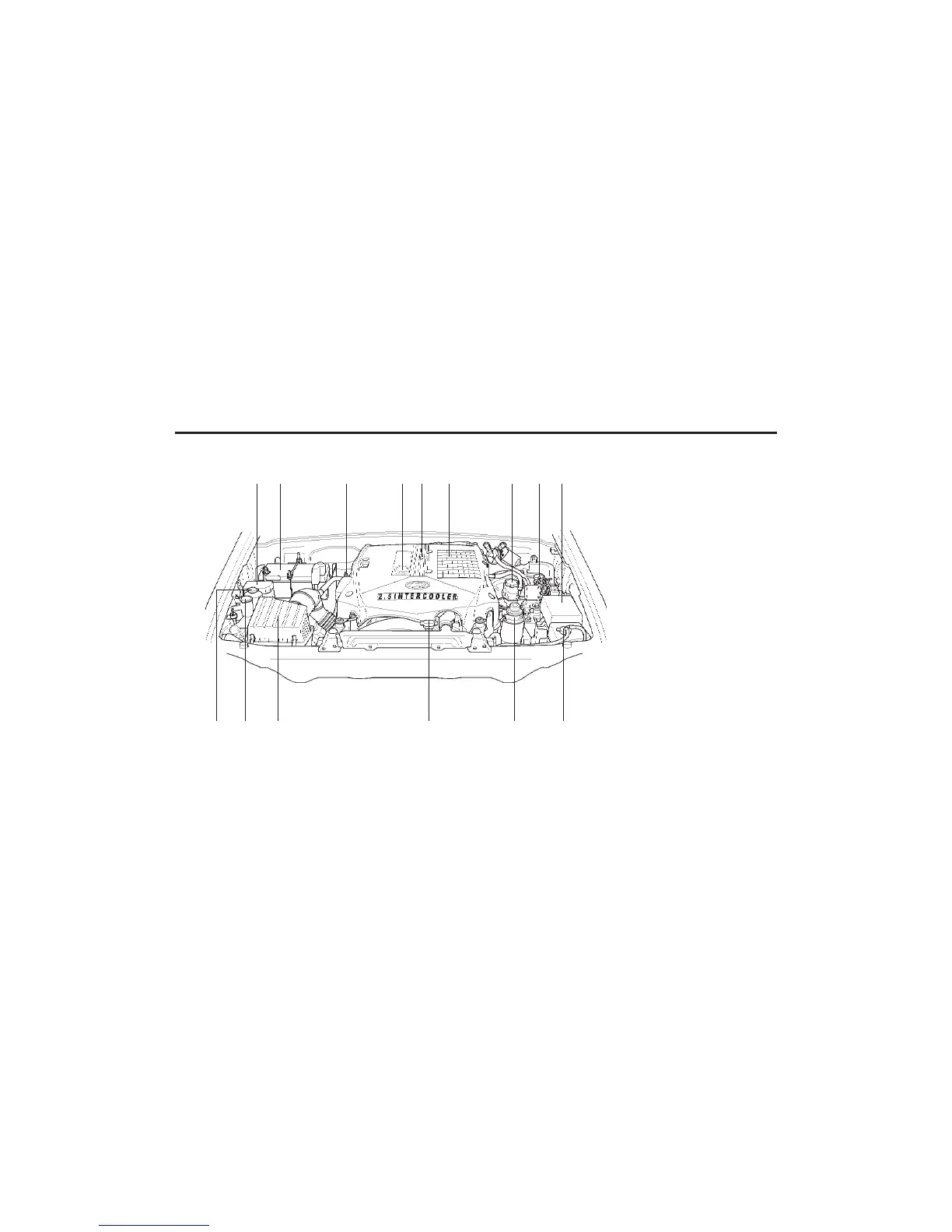

DIESEL ENGINE COMPARTMENT (2.5 TCI)
G010B02HP
1. Fuse and Relay box
2. Battery
3. Automatic Transmission fluid level dipstick
(Vehicle with Automatic Transmission)
4. Engine oil filler cap
5. Engine oil level dipstick
6. Engine cover
7. Brake fluid reservoir
8. Clutch fluid reservoir (If installed)
9. Power steering fluid reservoir
10.Windshield washer fluid reservoir
11. Air cleaner
12. Radiator cap
13. Fuel filter
14. Engine Coolant reservoir cap
12 1
CAUTION:
When inspecting or servicing the
engine, you should handle tools
and other heavy objects carefully
so that the plastic cover of the
engine is not damaged.
345 786
91011 12 13 14
To Next Page
