03
3-55

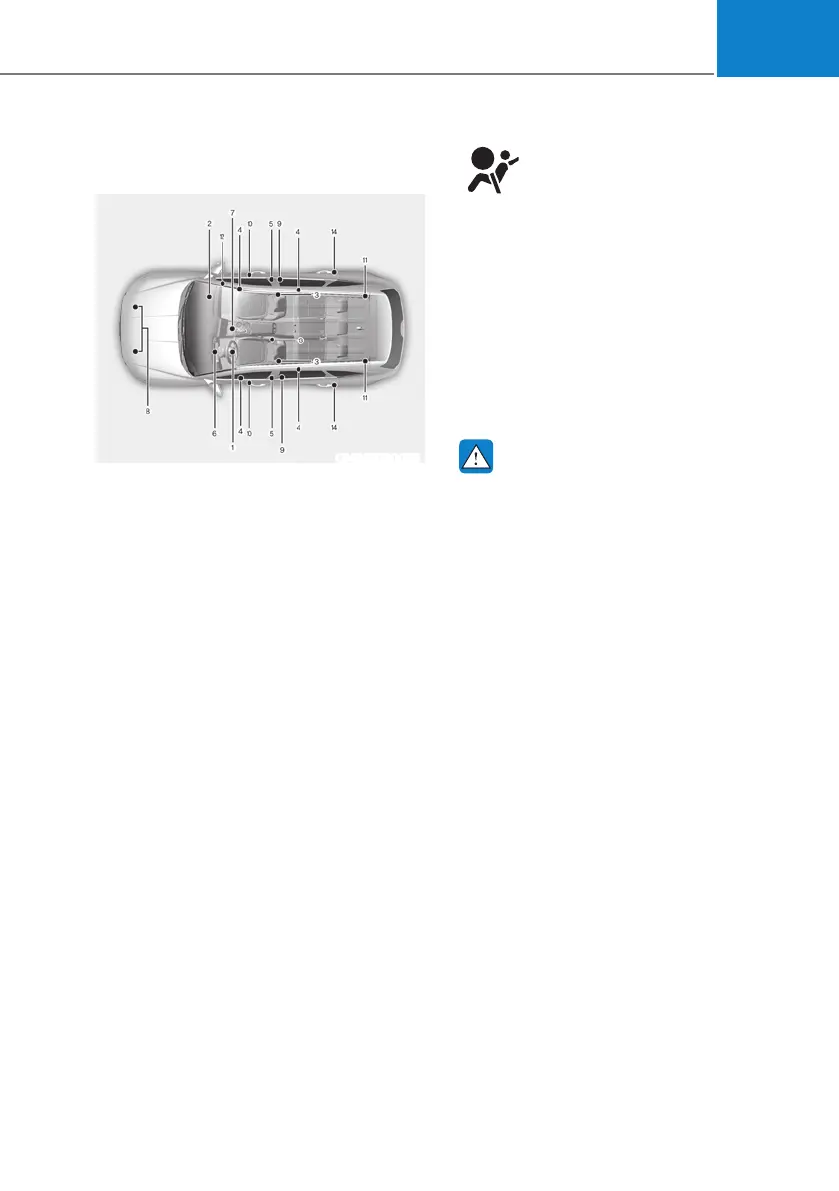

How does the air bags system
operate?
ONX4E030055
(1) Driver's front air bag module
(2)
Passenger's front air bag module
(3)
Side air bag modules*
(4)
Curtain air bag modules*
(5)
Front retractor pre-tensioner
(6)
Air bag warning light
(7)
SRS control module (SRSCM)/
Rollover sensor*
(8)
Front impact sensors
(9)
Side impact sensors (acceleration)*
(10)
Side pressure sensors (pressure)*
(11)
Rear retractor pre-tensioner*
(12)
Passenger’s front air bag ON/OFF
switch*
(13)
Front center air bag module*
(14)
Side impact sensors (acceleration)*
* : if equipped
The SRSCM continually monitors all SRS
components while the ignition switch
is ON to determine if a crash impact
is severe enough to require air bag
deployment or pre-tensioner seat belt
deployment.
SRS warning light
The SRS (Supplemental Restraint System)
air bag warning light on the instrument
panel displays the air bag symbol
depicted in the illustration. The system
checks the air bag electrical system for
malfunctions. The light indicates that
there is a potential problem with your
air bag system, which could include
your side and/or curtain air bags used
for rollover protection (if equipped with
rollover sensor).
WARNING
If your SRS malfunctions, the air bag
may not inflate properly during an
accident, increasing the risk of serious
injury or death.
If any of the following conditions occur,
your SRS is malfunctioning:
ś The light does not turn on for
approximately three to six seconds
when the Engine Start/Stop button is
in the ON position.
ś The light stays on after illuminating
for approximately three to six
seconds.
ś The light comes on while the vehicle
is in motion.
ś The light blinks when the engine is
running.
We recommend that an authorized
HYUNDAI dealer inspect the SRS
as soon as possible if any of these
conditions occur.
