Chapter 2 Display Controls
User Controls
A brief description and the location of all LCD Monitor functions controls and indicators:
13245

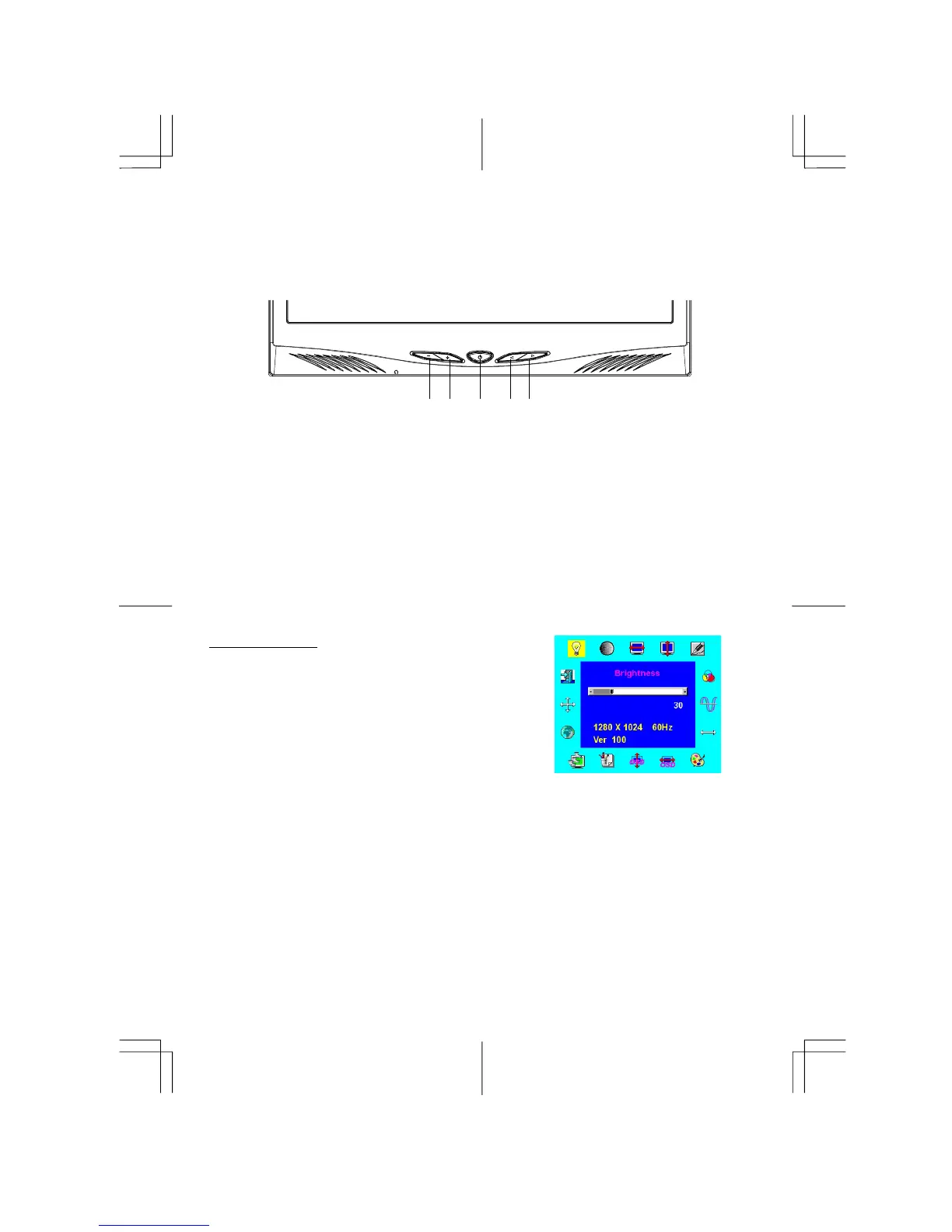

Figure 2-1
1
Power LED will be blue when monitor is on, be yellow when in power saving mode, be dark when monitor
in off mode. Power ON/OFF switch for push to ON and push to OFF (Toggle switch)
2
Menu / Function select (clockwise)
3
Auto Sync / Function select (counter-clockwise)
4
Audio Volume Function / Adjustment increase
5
Audio Mute ON-OFF Selection / Adjustment decrease
Adjusting the Monitor's Display
The monitor has four function control buttons to select among functions shown on OSD menu, designed for easy user-viewing
environments.
OSD Function Menu
To access OSD Main menu, simply press one of the Function
Select control buttons, and the menu diagram will pop up on the
screen as shown on Fig. 2-2:
Continue pressing the Function Select buttons to scroll through
the entire menu then press Adjustment Control buttons to adjust
content of selected item.
Figure 2-2
Attention
Firmware revision may have been updated into a latest version while the version number shown on all OSD menus in this
manual will stay as Ver. 1.00.
To Next Page
