I-Trac MT-1C - Product Specifications; Installation and Status Indicators; Wiring Connections Diagram; LED Status Indicators

1. Specification
GSM module MTK program, GSM 850/900/1800/1900
Support TCP protocol
GPS Chipset U-BLOX 7020(Support GPS/Glonass/Galileo/Compass)
GPS sensitivity -162dB
Hot start 1sec.,average
Warm start 30 sec.,average
Cold Start 35 sec, average
Operating temperature -20°C－65°C
Battery Volume 50mAh
Dimension 89mm×51mm×15mm
Voltage 12-100V
Altitude Limit 18,000 meters (60,000feet) max.

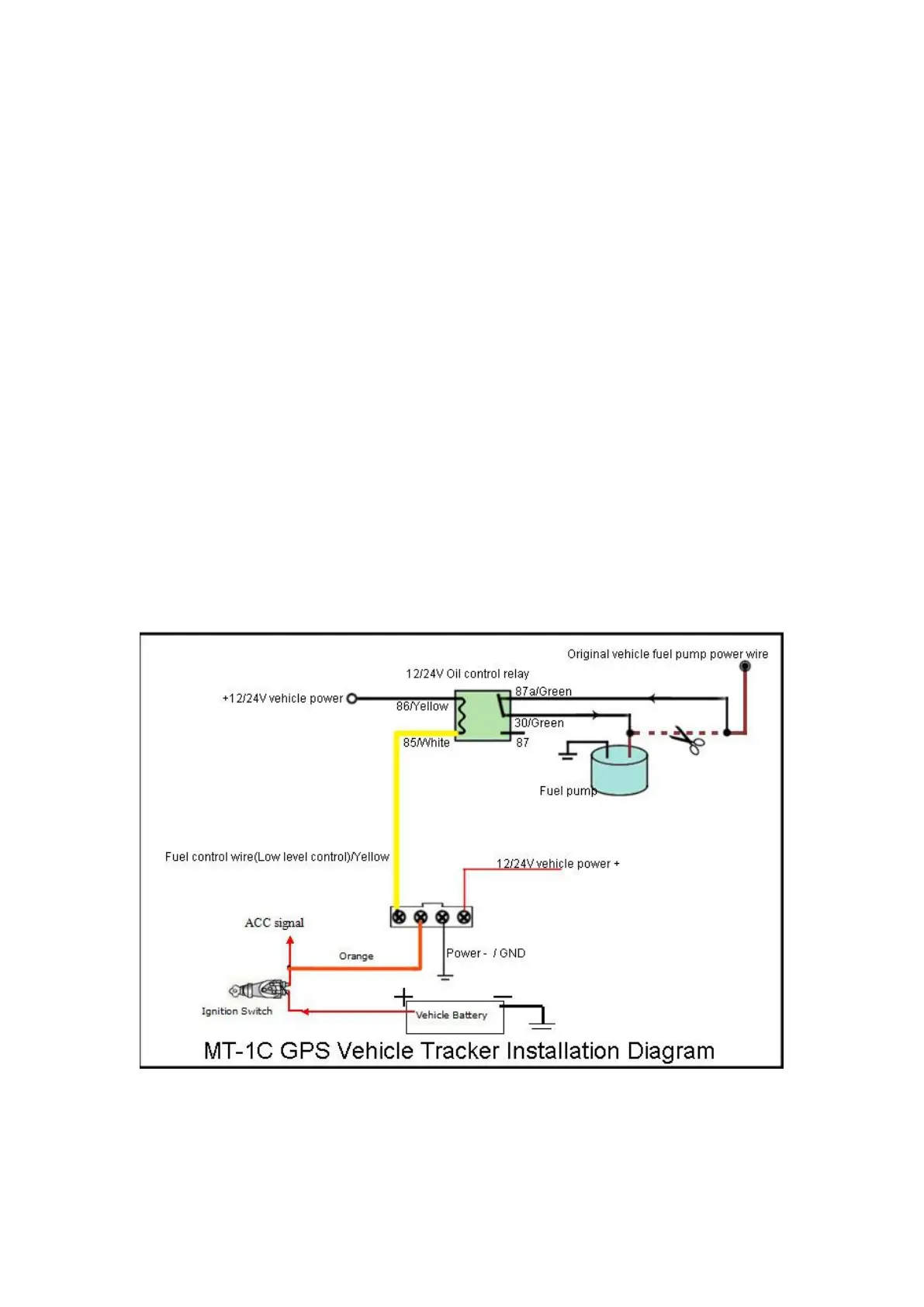

2. Wiring connections
Red (+)12V -24V
Black GND(-)
Yellow Cut oil
Orange ACC
3.Led light description
Blue LED Light--- GPS Status
